Catalog

Search by vehicle

Category :

Transmission

Return

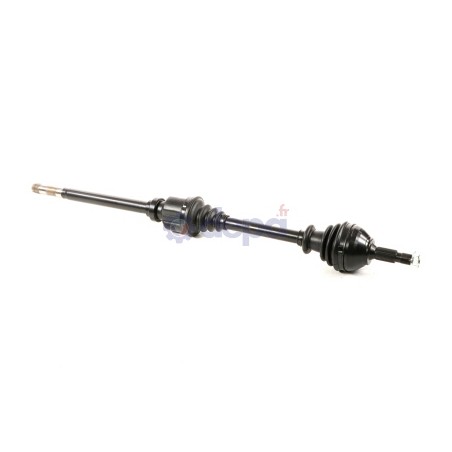

JUMPY 2/C5 II/EXPERT 2/SCUDO 2

Name: JUMPY 2/C5 II/EXPERT 2/SCUDO 2
Brand: Depa
SKU: 3068200
Price: 165.52 EUR
Availability: InStock

Ref : 3068200

Matching vehicles :

EXPERT 2 - SCUDO 2 - C5 II - DS5

Family :TR

Non-compressed length : 1015 mm

Round flange diameter 1 : mm

Length of the shaft (including bearing unit) : 400 mm

ABS on the vehicle : Yes

Compressed length : 985 mm

COTE ROUE

Number of splines on inner race : 39

Shoulder diameter : 59 mm

Number of external splines : 28

Type and position (snap ring/circlip) : Internal snap ring

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 96 mm

COTE BOITE

Outer spline diameter : 28 mm

Length of the shaft (including bearing unit) : 400 mm

Nombre de cannelures extérieures : 37

Length of the gearbox output without seal seat : 86 mm

Seal seat diameter : 32 mm

Housing diameter : 79 mm

Sealing kit	COTE ROUE	T3061
		5008
		T3071
		5102
		5024
		5020
	COTE BOITE	6115
	COTE BOITE	6115
CV joint	COTE ROUE	JP58
	COTE ROUE	JC82
	COTE BOITE	PALCBMC82DT
	COTE BOITE	PALCBMC82DT
FIXATION	COTE ROUE	EC008
RESSORT	COTE BOITE	REC44
RESSORT	COTE BOITE	REC44
ROULEMENT	COTE BOITE	RLT005
ROULEMENT	COTE BOITE	RLT005
TRIAXE	COTE BOITE	TRIC44
TRIAXE	COTE BOITE	TRIC44
Transmission seal		B3210

Equivalence to manufacturer references

TOYOTA : SU001A0969
FIAT : 1497188088
FIAT : 71792561
