Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

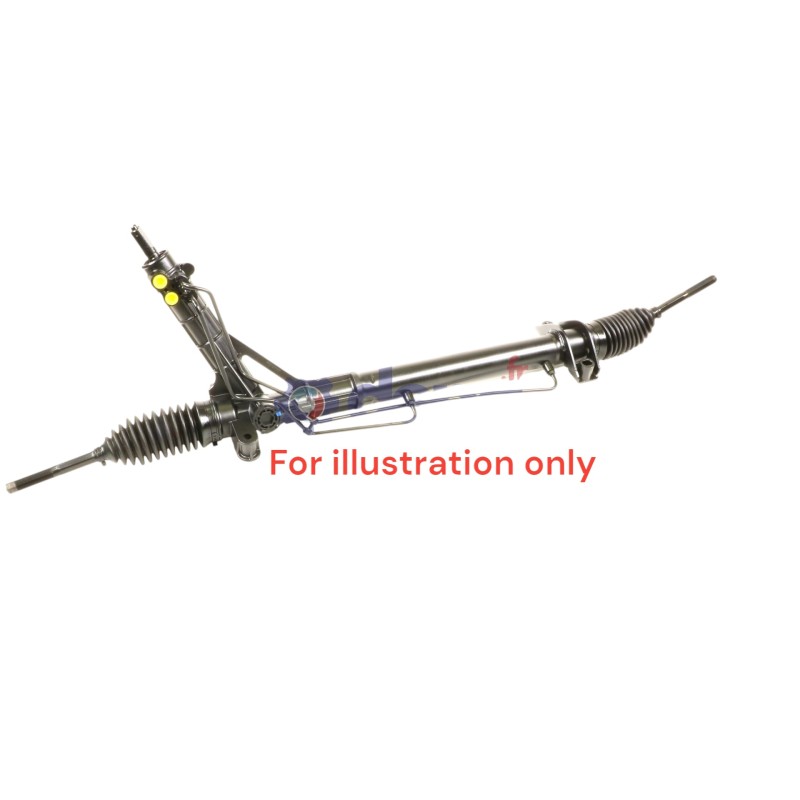

VW POLO/SEAT CODOBA 3.IBIZA 4

Name: VW POLO/SEAT CODOBA 3.IBIZA 4
Brand: Depa
SKU: A1069R
Price: 468.98 EUR
Availability: InStock

Ref : A1069R

Family :CA

Thread length : 55 mm

Tie rod thread size (tie rod end side) : M16 X 1,5

Number of splines on the pinion : 24

Splined pinion : Yes

Presence of servotronic : With

Fitting type : Screw

Mounting hole diameter : 8 mm

Total length : 1190 mm

Steering wheel position : Left-hand drive

Manufacturer : KOYO

INSTRUCTION MONTAGE

Rack to housing distance at full lock : 26 mm

Rack travel : 145.0 mm

Lock to lock turns : 2.95 tr

Oil flow rate for testing +/-0.5 : 3.10 L/min

Presence of non-return valve : SANS

Tie rod end	GAUCHE	RO137434
	GAUCHE	RO137435
	DROITE	RO137435
	DROITE	RO137434
Boot kit for steering rack	GAUCHE	T4248
Boot kit for steering rack		T4248
Tie rod	GAUCHE	BI57013
Tie rod	DROITE	BI57013

Equivalence to manufacturer references

AUDI : 5Z1423055C
AUDI : 6Q1423055J
AUDI : 6Q1423061H
AUDI : 6Q1423061J
AUDI : 6Q1423061JX
AUDI : 6Q1423061L
AUDI : 6Q1423062
AUDI : 6Q1423070X
AUDI : 6Q1423055H
AUDI : 6Q1423062H
AUDI : 6Q1423055AJ
AUDI : 5Z1423055B
AUDI : 6Q1423055T
AUDI : 5Z1423055
AUDI : 6Q1423055AP
AUDI : 6Q1423062C
SEAT : 6Q1423055H
SEAT : 6Q1423062C
SEAT : 5Z1423055B
SEAT : 5Z1423061
SEAT : 6Q1423055J
SEAT : 6Q1423061G
SKODA : 6Q1423051BQ
SKODA : 6Q1423055AJ
SKODA : 6Q1423061KX
SEAT : 6Q1423055AJ
SKODA : 6Q1423062B
SKODA : 5Z1423055B
SKODA : 5Z1423061
SKODA : 6Q1423055H
SKODA : 6Q1423055J
SKODA : 6Q1423062
SKODA : 6Q1423062JV
SEAT : 6Q1423062H
VOLKSWAGEN : 6Q1423051BH
VOLKSWAGEN : 6Q1423062BX
VOLKSWAGEN : 6Q1423051AF
VOLKSWAGEN : 6Q1423051AQ
VOLKSWAGEN : 6Q1423055AP
VOLKSWAGEN : 6Q1423061K
VOLKSWAGEN : 6Q1423062C
SEAT : 5Z1423055C
VOLKSWAGEN : 6Q1423061H
VOLKSWAGEN : 6Q1423061J
SKODA : 5Z1423055C
SKODA : 6Q1423062BV
SKODA : 6Q1423062H
SKODA : 6Q1423051AL
SKODA : 6Q1423070X
VOLKSWAGEN : 6N1422062
VOLKSWAGEN : 6Q1423055H
VOLKSWAGEN : 6Q1423062JV
VOLKSWAGEN : 6Q1423062BF
VOLKSWAGEN : 6Q1423062JX
VOLKSWAGEN : 6Q1423055BF
VOLKSWAGEN : 6Q1423061JX
VOLKSWAGEN : 6Q1423061L
VOLKSWAGEN : 6Q1423055T
VOLKSWAGEN : 6Q1423062
VOLKSWAGEN : 6Q1423062BV
SEAT : 5Z1423055
SEAT : 6Q1423055AP
SEAT : 6Q1423055T
SEAT : 6Q1423061L
SEAT : 6Q1423062
SKODA : 6Q1423061J
SKODA : 6Q1423061JX
SKODA : 6Q1423061T
SKODA : 6Q1423062C
SKODA : 6Q1423061H
VOLKSWAGEN : 5Z1423061C
VOLKSWAGEN : 6Q1423062G
VOLKSWAGEN : 6Q1423070X
VOLKSWAGEN : 5Z1423055B
VOLKSWAGEN : 5Z1423061
VOLKSWAGEN : 6Q1423061KX
VOLKSWAGEN : 6Q1423062H
VOLKSWAGEN : 6Q1423062J
VOLKSWAGEN : 5Z1423055
VOLKSWAGEN : 6Q1423055AJ
VOLKSWAGEN : 6Q1423062B
VOLKSWAGEN : 6Q1423070
AUDI : 5Z1423061
SEAT : 6Q1423061H
SEAT : 6Q1423061J
SEAT : 6Q1423061JX
SEAT : 6Q1423070X
SKODA : 5Z1423055
SKODA : 6Q1423055AP
SKODA : 6Q1423055T
SKODA : 6Q1423061L
VOLKSWAGEN : 6N1422062C
VOLKSWAGEN : 5Z1423055C
VOLKSWAGEN : 6Q1423055J
VOLKSWAGEN : 6Q1423061C
