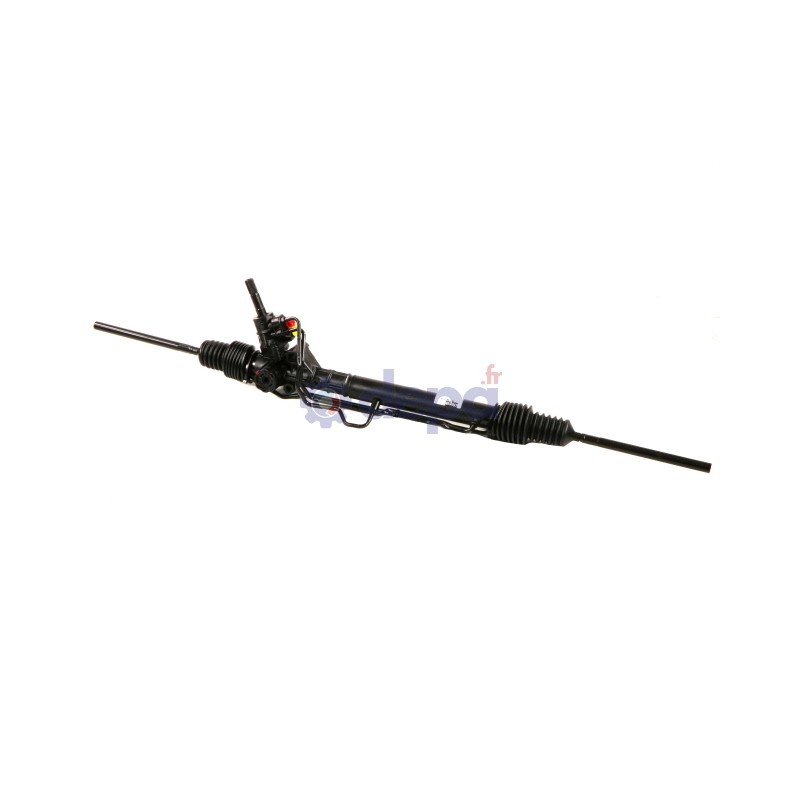

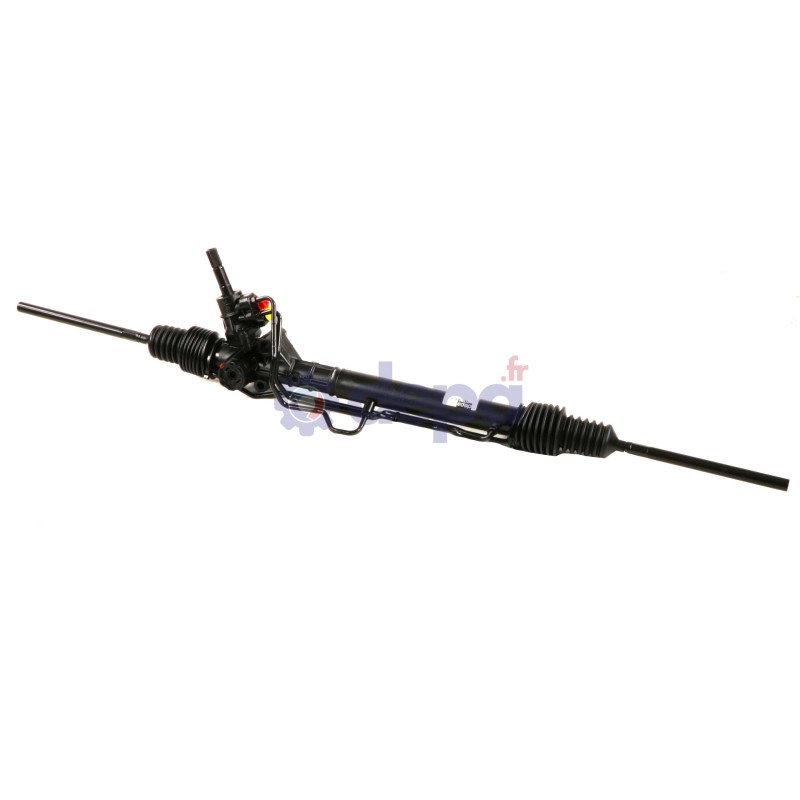

Hydraulic power steering rack
3D
Ref : A392
Matching vehicles :
TRAFIC I - TRAFIC FOURGON (T_, P_, V_) - TRAFIC AUTOBUS/AUTOCAR (T_, P_, V_) - TRAFIC CAMION PLATE-FORME/CHÂSSIS (T_, P_, V_)Family :CA
Mounting hole diameter : 12 mm
Total length : 1240 mm
Tie rod thread size (tie rod end side) : M12 X100
Steering wheel position : Left-hand drive
Observations : Aluminium or cast iron
Manufacturer : SMI
Fitting type : Screw
Splined pinion : Yes
Number of splines on the pinion : 30
Presence of servotronic : Without
Tie rod thread size (rack side) : M14 X 1,5
INSTRUCTION MONTAGE
Rack travel : 155.0 mm
Oil flow rate for testing +/-0.5 : 5.00 L/min
Lock to lock turns : 3.05 tr
Presence of non-return valve : SANS
| Boot kit for steering rack | 4045 |
|
|
| 4045 |
|
||
| Tie rod | BI6113 |
|
|
| BI6113 |
|
Equivalence to manufacturer references
RENAULT : 7701352107
RENAULT : 7701467741
OPEL : 9112078
