Category :

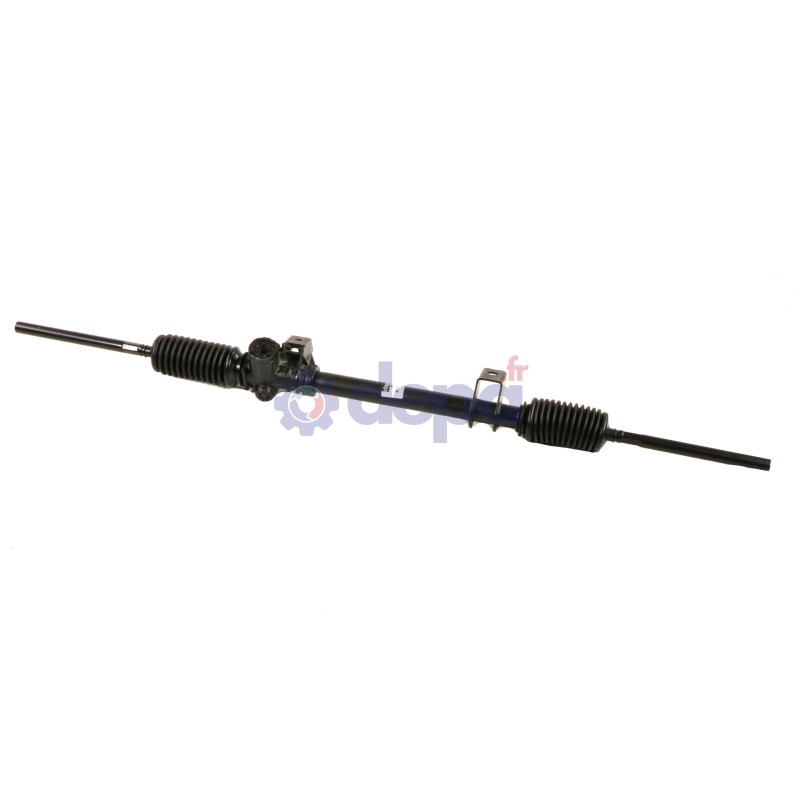

Mechanical steering rack
3D
Ref : M306
Matching vehicles :
SUPER 5 - EXPRESSFamily :CR
Total length : 1090 mm
Steering wheel position : Left-hand drive
Number of splines on the pinion : 32
Tie rod thread size (tie rod end side) : M12 X100
Mounting hole diameter : 10 mm
Presence of servotronic : Without
Splined pinion : Yes
Tie rod thread size (rack side) : M14 X 1,5
INSTRUCTION MONTAGE
Rack travel : 135.0 mm
Lock to lock turns : 3.75 tr
| Tie rod | GAUCHE | BI5433 |
|
| DROITE | BI5433 |
|
|
| Boot kit for steering rack | DROITE | 4022 |
|
| 4022 |
|
Equivalence to manufacturer references
RENAULT : 7701463995
RENAULT : 7701463347
RENAULT : 440552
