Category :

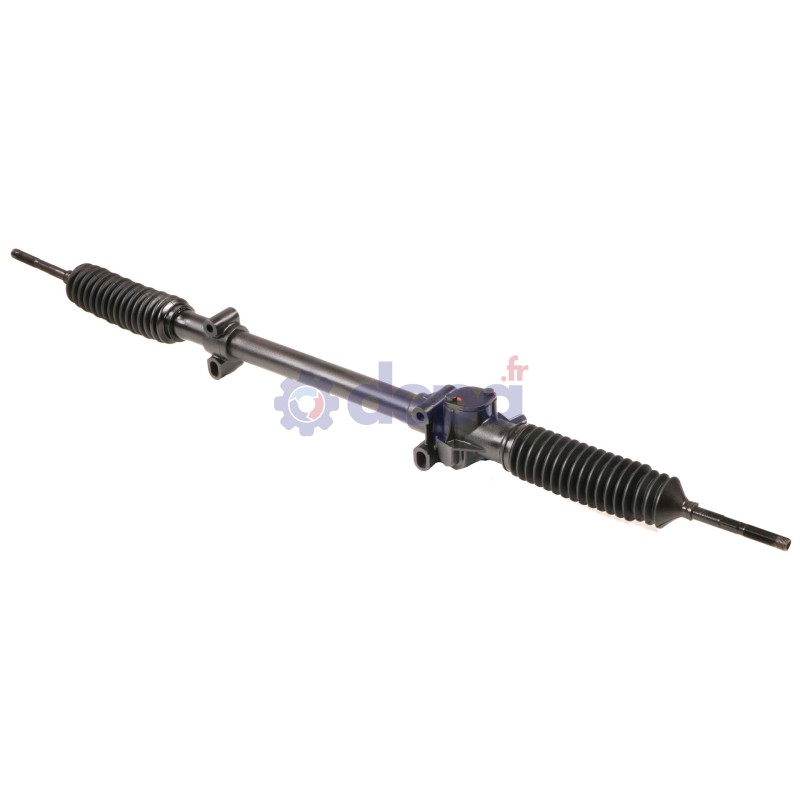

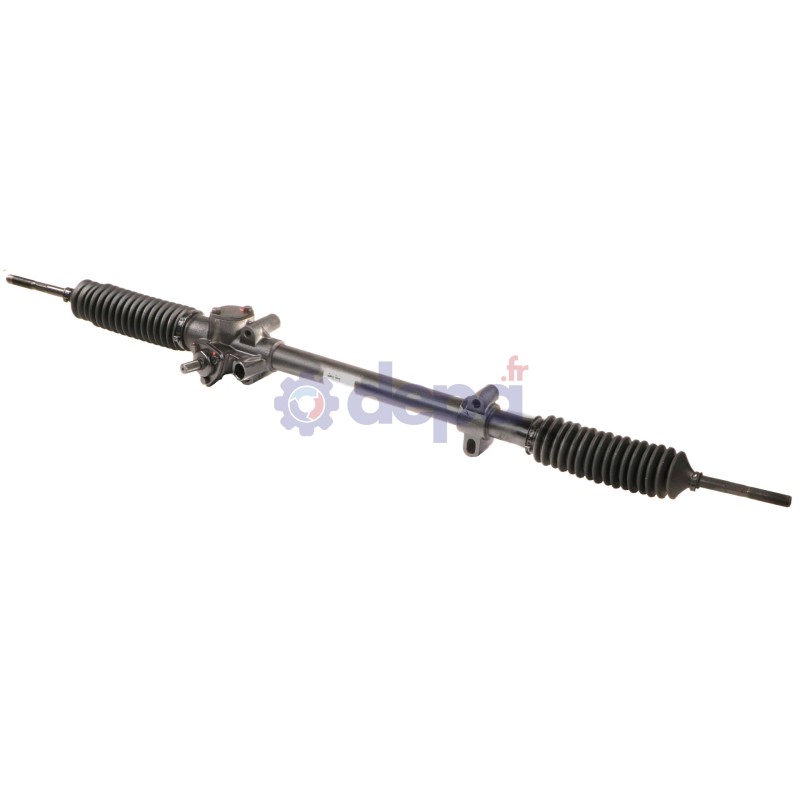

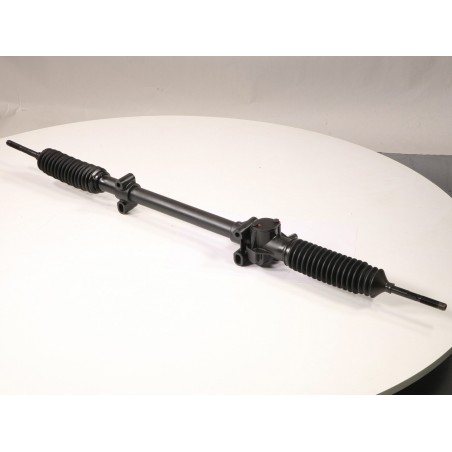

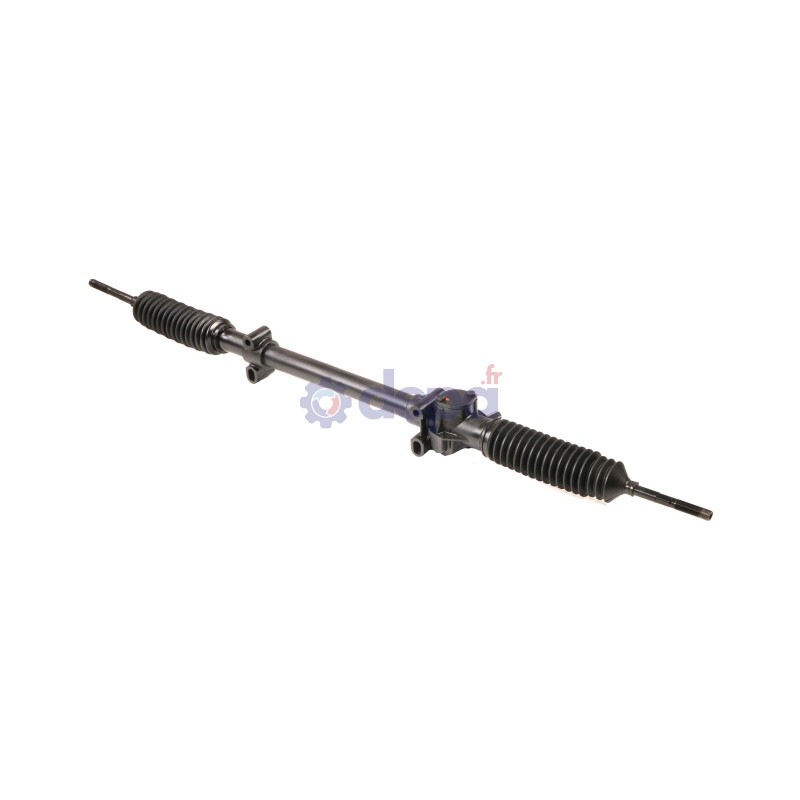

Mechanical steering rack
Ref : M342
Matching vehicles :
MASTER 1Family :CR
Thread length : 50 mm
Tie rod thread size (tie rod end side) : M16 X 1,5
Mounting hole diameter : 12 mm
Steering wheel position : Left-hand drive
Presence of servotronic : Without
Observations : Avec pattes de fixation fixes.
Tie rod thread size (rack side) : M16 X 1,5
Total length : 1280 mm
Number of splines on the pinion : 36
Splined pinion : Yes
Manufacturer : TRW
INSTRUCTION MONTAGE
Rack to housing distance at full lock : 57 mm
Lock to lock turns : 3.90 tr
Rack travel : 203.0 mm
| Boot kit for steering rack | DROITE | 4092 |
|
| 4070 |
|
Equivalence to manufacturer references
RENAULT : 7700747414
RENAULT : 7700728751
