Catalog

Search by vehicle

Category :

CV joint

Return

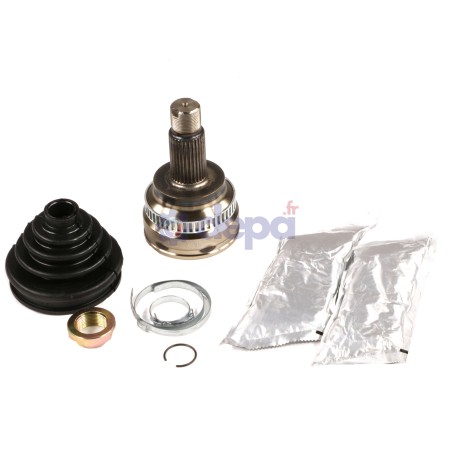

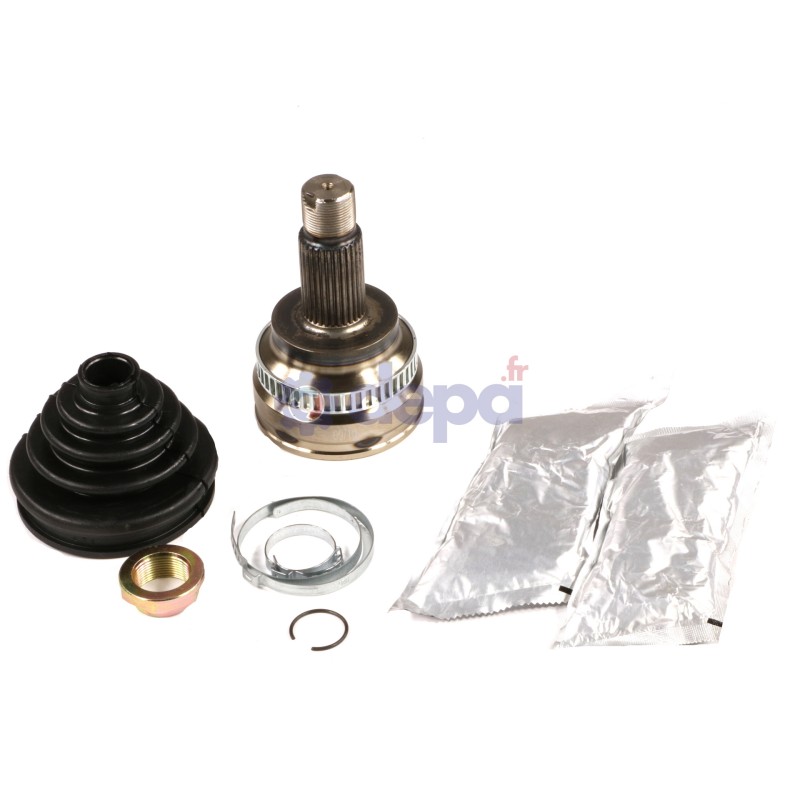

BMW SERIES 3 E90 /E91

Name: BMW SERIES 3 E90 /E91
Brand: Depa
SKU: JB84
Price: 152.13 EUR
Availability: InStock

Ref : JB84

Matching vehicles :

SERIE 3 E91 TOURING - SERIE 3 E90 - SERIE 5 E61 - SERIE 3 E92

Family :JH

Diameter (big) : 83 mm

Diameter (little) : 22 mm

Outer spline diameter : 33 mm

Housing diameter : 86 mm

Shoulder diameter : 65 mm

Height : 16 mm

Length : 79 mm

Number of external splines : 30

Number of splines on inner race : 33

Number of grooves : 1

Observations : Spline length 50mm

Type of material : Neoprene

Thread pitch type : 27X150

Type and position (snap ring/circlip) : Centered snap ring

Nut type : Flange nut

COURONNE ABS

Outer diameter : 83 mm

Inner diameter : 79 mm

Width : 13 mm

Number of teeth : 48

ABS ring		COU034
Sealing kit		5005
Fixation		EC048
