Catalog

Search by vehicle

Category :

CV joint

Return

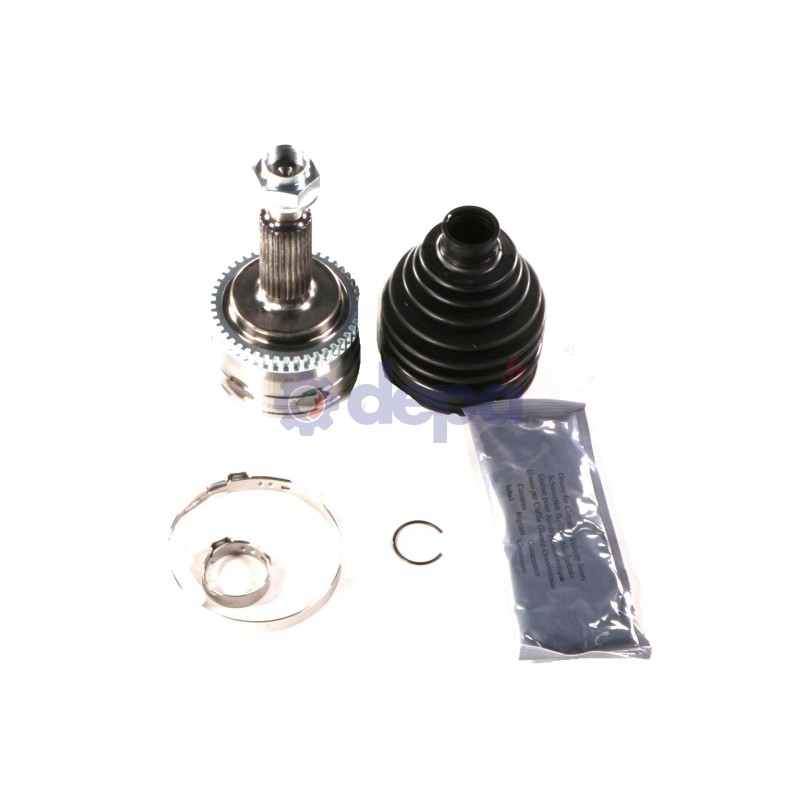

KIA

Name: KIA
Brand: Depa
SKU: JK75
Price: 143.5 EUR
Availability: InStock

Ref : JK75

Matching vehicles :

I 30 II - CEE'D II - IX20 - PRO CEE'D

Family :JH

Diameter (big) : 83 mm

Diameter (little) : 22 mm

Outer spline diameter : 28 mm

Housing diameter : 84 mm

Shoulder diameter : 60 mm

Height : 20 mm

Length : 79 mm

Number of external splines : 27

Number of splines on inner race : 24

Number of grooves : 1

Observations : Threading length 28mm Ø22mm/Spline length on shoulder 56mm

Type of material : Neoprene

Thread pitch type : 22X150

Type and position (snap ring/circlip) : Centered snap ring

Nut type : Flange nut

COURONNE ABS

Outer diameter : 82 mm

Inner diameter : 68 mm

Width : 8 mm

Number of teeth : 46

ABS ring		COU041
Sealing kit		5005
Fixation		EC020
