Catalog

Search by vehicle

Category :

CV joint

Return

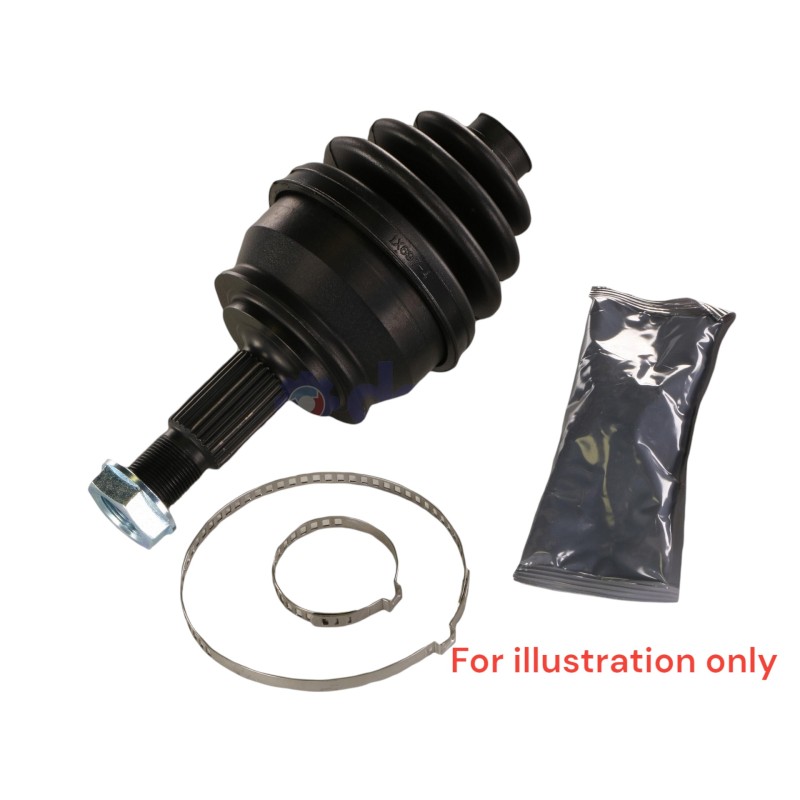

CV JOINT

Name: CV JOINT
Brand: Depa
SKU: JLR01
Price: 254.43 EUR
Availability: InStock

Ref : JLR01

Matching vehicles :

FREELANDER I

Family :JH

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Outer spline diameter : 28.5 mm

Housing diameter : 92 mm

Shoulder diameter : 56 mm

Height : 20 mm

Length : 88 mm

Number of external splines : 28

Number of splines on inner race : 32

Number of grooves : 1

Type of material : Neoprene

Thread pitch type : 22X150

Type and position (snap ring/circlip) : Internal snap ring

Nut type : Flange nut

COURONNE ABS

Outer diameter : 93 mm

Inner diameter : 89 mm

Width : 13 mm

Number of teeth : 60

Fixation		EC020
ABS ring		COU070
Sealing kit		5020
