Catalog

Search by vehicle

Category :

CV joint

Return

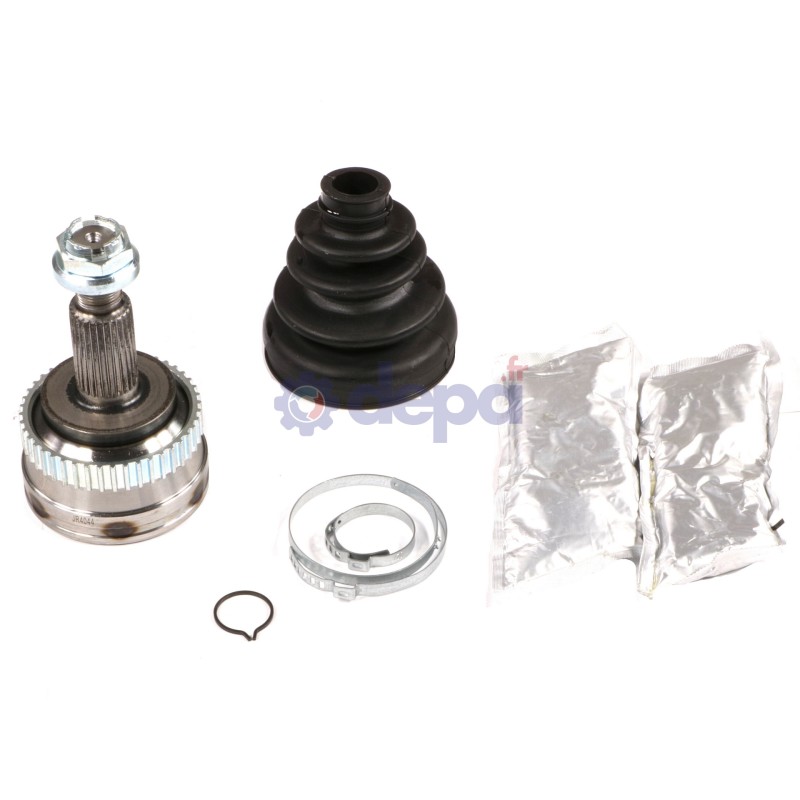

CV JOINT

Name: CV JOINT
Brand: Depa
SKU: JR4044
Price: 85.54 EUR
Availability: OutOfStock

Ref : JR4044

Matching vehicles :

ESPACE 3

Family :JH

Diameter (big) : 83 mm

Diameter (little) : 22 mm

Outer spline diameter : 29.5 mm

Housing diameter : 90 mm

Shoulder diameter : 65 mm

Height : 25 mm

Length : 79 mm

Number of external splines : 27

Number of splines on inner race : 25

Number of grooves : 1

Type of material : Neoprene

Thread pitch type : 22X150

Type and position (snap ring/circlip) : External snap ring

Nut type : Washer

COURONNE ABS

Outer diameter : 87 mm

Inner diameter : 75 mm

Width : 15 mm

Number of teeth : 44

ABS ring		COU093
Sealing kit		5005
Fixation		EC011
