Category :

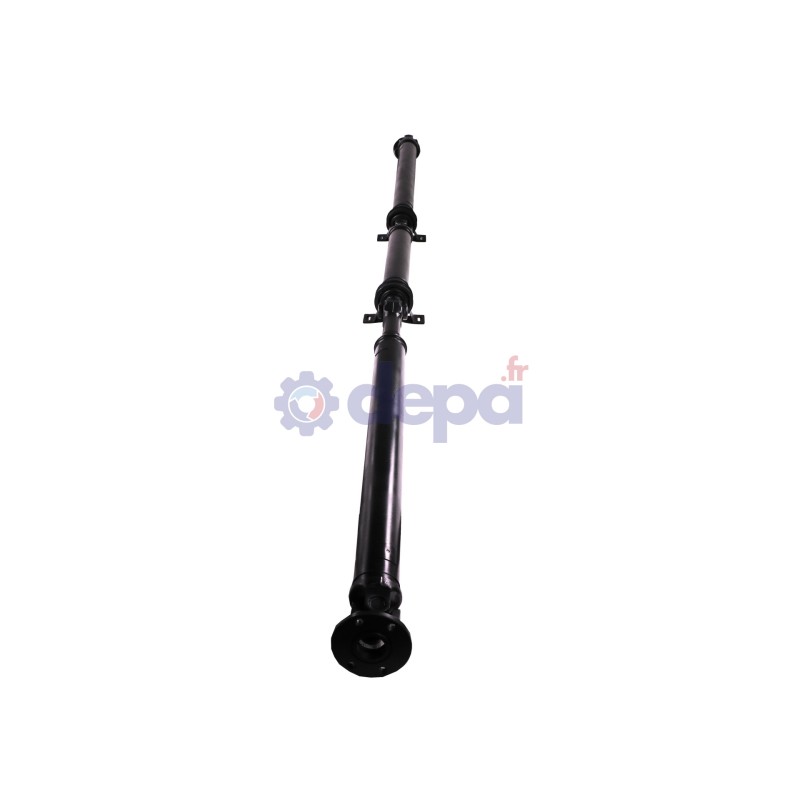

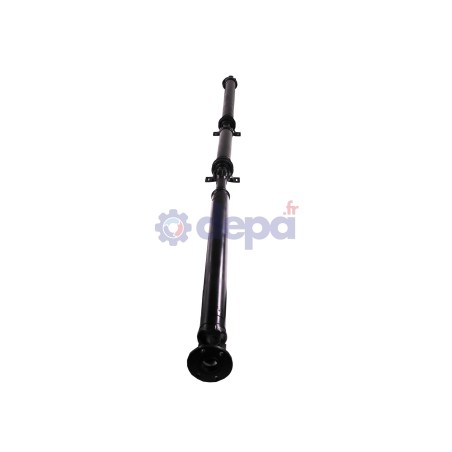

Drive shaft (new product)

Return

FORD TRANSIT II

Ref : 4250600

Matching vehicles :

TRANSIT II

Family :NOA

Major diameter of the spline  : 38 mm

Total length  : 2700 mm

Number of external splines  : 23

Position of the shaft  : Rear

CROISILLON

Bushing diameter  : 27 mm

Length  : 72 mm

Observations  :

U-joint type  : Staked

Lubrication type  : Sealed for life

PALIER

Mounting hole diameter  : 10.5 mm

Bearing diameter  : 30 mm

Mounting hole spacing  : 144 mm

Bearing thickness  : 13 mm

Height between A and B  : 60 mm

Drive shaft bearing PAL106 FORD TRANSIT 2.4 TDCI
U-joint CRO0108

Equivalence to manufacturer references

  • FORD : 7239274
