Drive shaft (new product)

Return

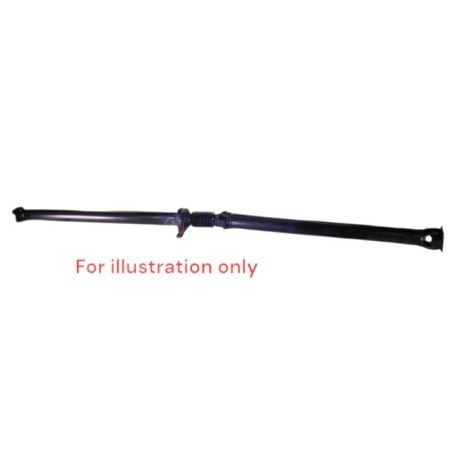

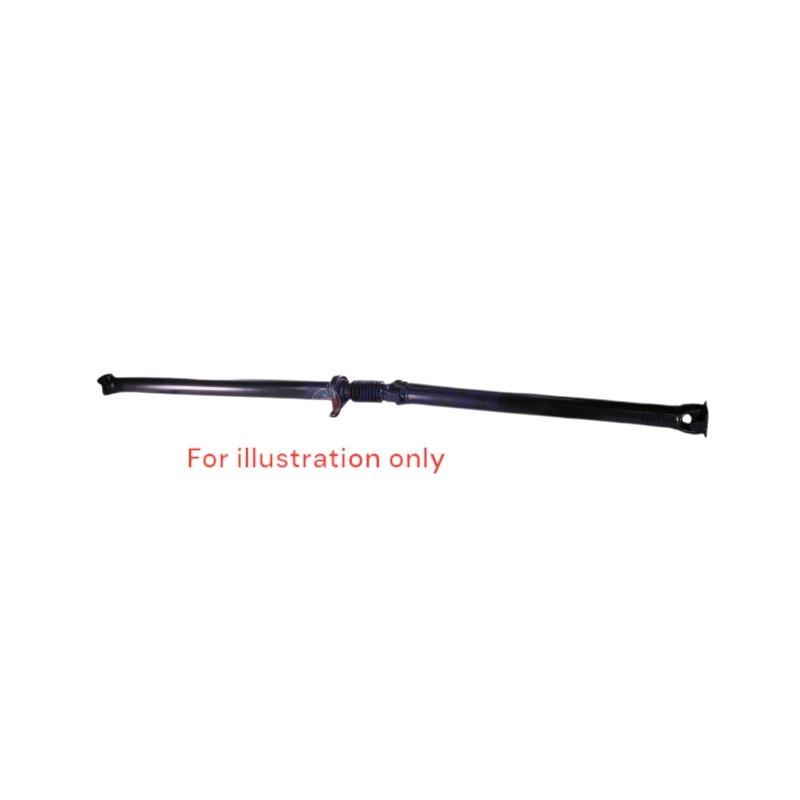

AUDI A6 II AUTOMATIC TRANSMISSION

Ref : 4320660

Matching vehicles :

A6 II

Family :NOA

Major diameter of the spline  : 27.5 mm

Total length  : 1620 mm

Number of external splines  : 25

CROISILLON

Bushing diameter  : 24 mm

Length  : 62.3 mm

Observations  :

U-joint type  : Staked

Lubrication type  : Sealed for life

JOINT HOMOCINETIQUE

Outer diameter (boot side)  : 100 mm

Number of splines on inner race  : 25

Number of mounting points  : 6

PALIER

Mounting hole diameter  : 12.5 mm

Bearing diameter  : 30 mm

Mounting hole spacing  : 230 mm

Bearing thickness  : 13 mm

U-joint CRO0078 24.06 X 62.40 (1)
Drive shaft bearing PAL021
CV joint FL47 FLASQUE COTE BOITE

Equivalence to manufacturer references

  • AUDI : 4B3521101E
