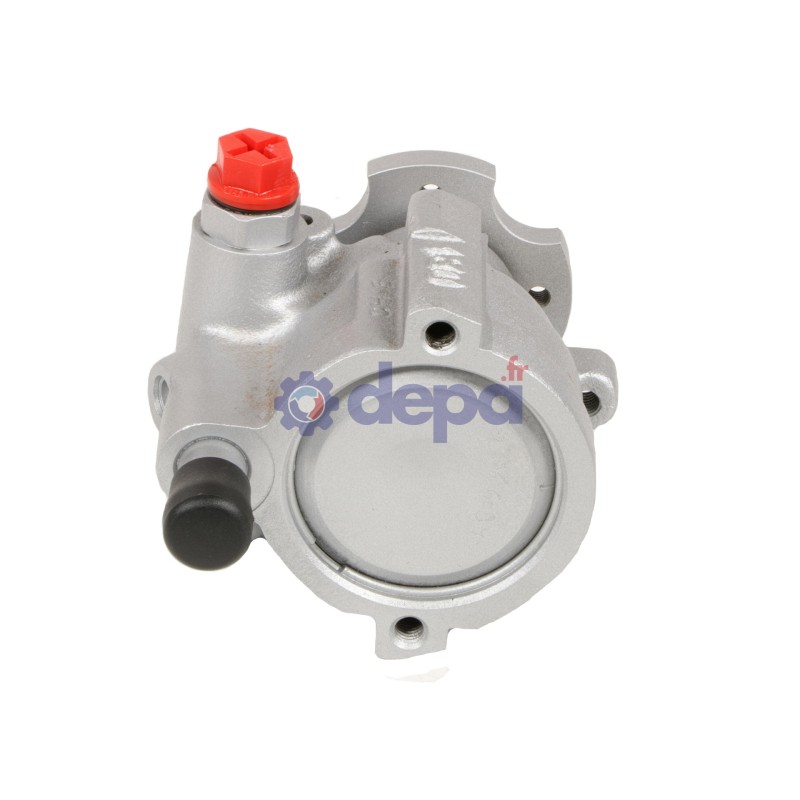

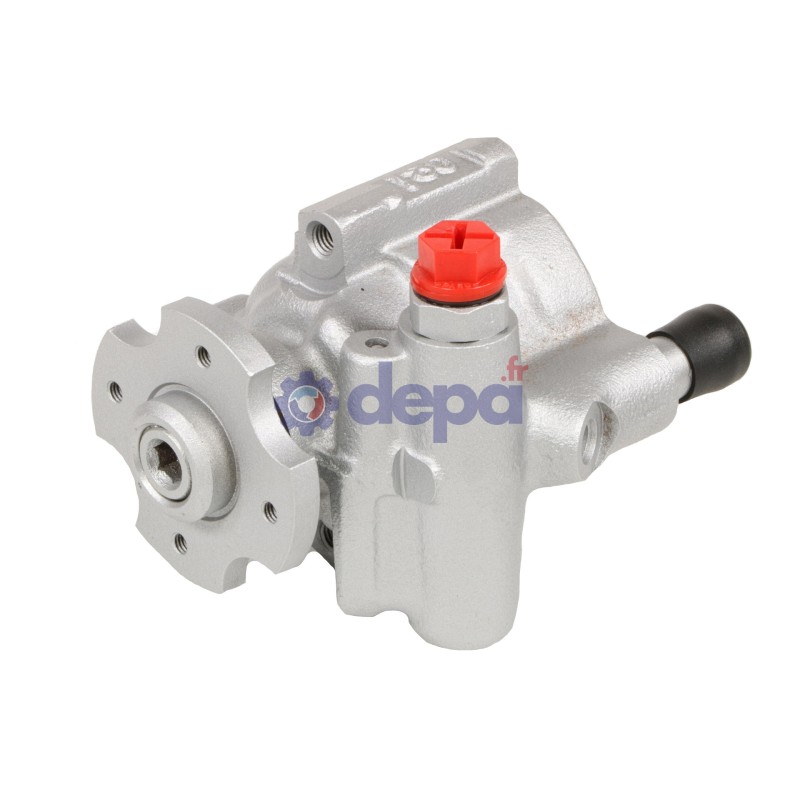

Hydraulic power steering pump
Ref : PA219
Matching vehicles :
C5 - LAGUNA 2 - 605 - 406Family :PA
Axle diameter : 19 mm
Manufacturer : SAGINAW
Height : 108 mm
Number of mounting points : 5
Steering wheel position : Left-hand drive
Presence of the pulley : Without
Presence of the reservoir : Without
Presence of the support : With
Type of material : Cast iron
Type of pipe connection : Straight
INSTRUCTION MONTAGE
Maximum pressure : 100 bar
JOINT TORIQUE
Inner diameter : 64.77 mm
SUPPORT POULIE GENERAL
Diameter of axle : 19 mm
Centre bore diameter : 30 mm
Mounting hole diameter : 6 mm
Outer diameter : 71.7 mm
Centre distance : 39 mm
Shape : Star-shaped
Number of mounting holes : 4
| Pulley support | GENERAL | SU04 |
|
Equivalence to manufacturer references
CITROËN : 1673606580
CITROËN : 40078A
CITROËN : 4007CZ
CITROËN : 4007EC
CITROËN : 4007JR
CITROËN : 9640485880
CITROËN : 9648316780
HYUNDAI : 5711027000
PEUGEOT : 4007A8
PEUGEOT : 4007EC
PEUGEOT : 4007JR
PEUGEOT : 4007R0
PEUGEOT : 9640485880
PEUGEOT : 9648316780
RENAULT : 7700875708
RENAULT : 8200232768
RENAULT : 9626095180
RENAULT : 9644538980
