Category :

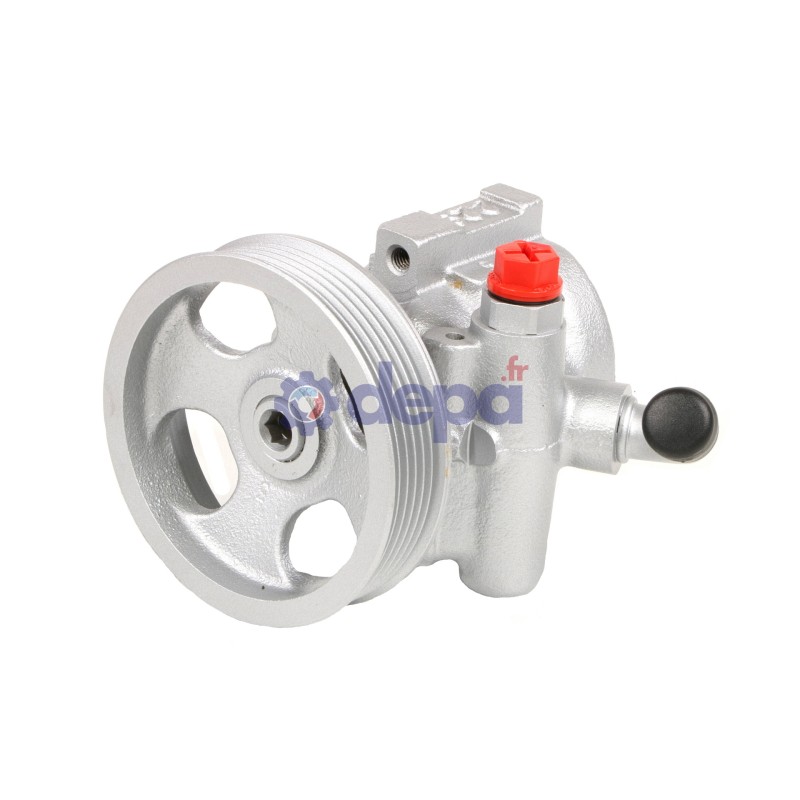

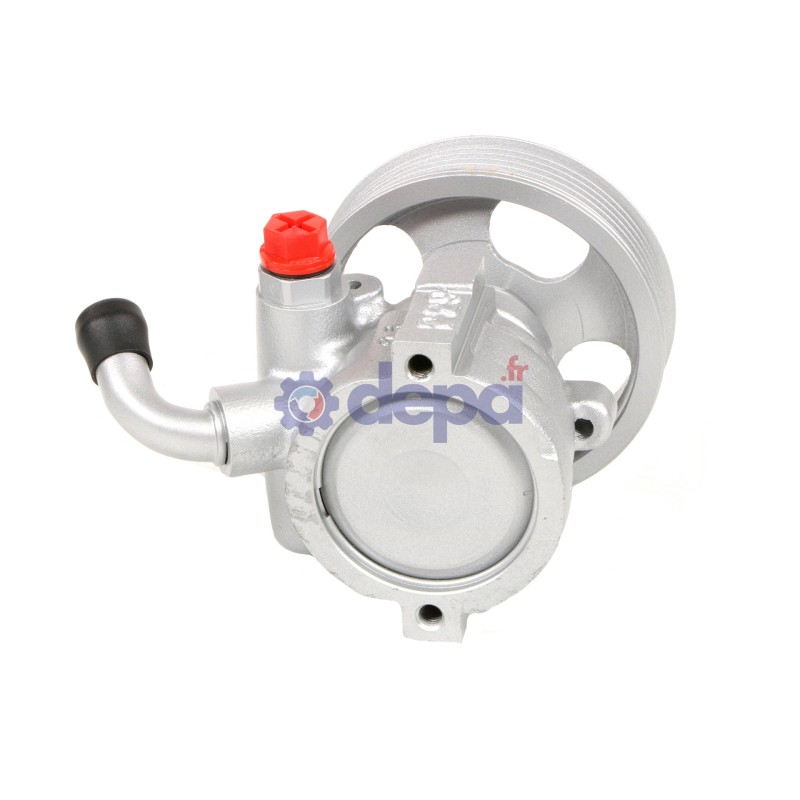

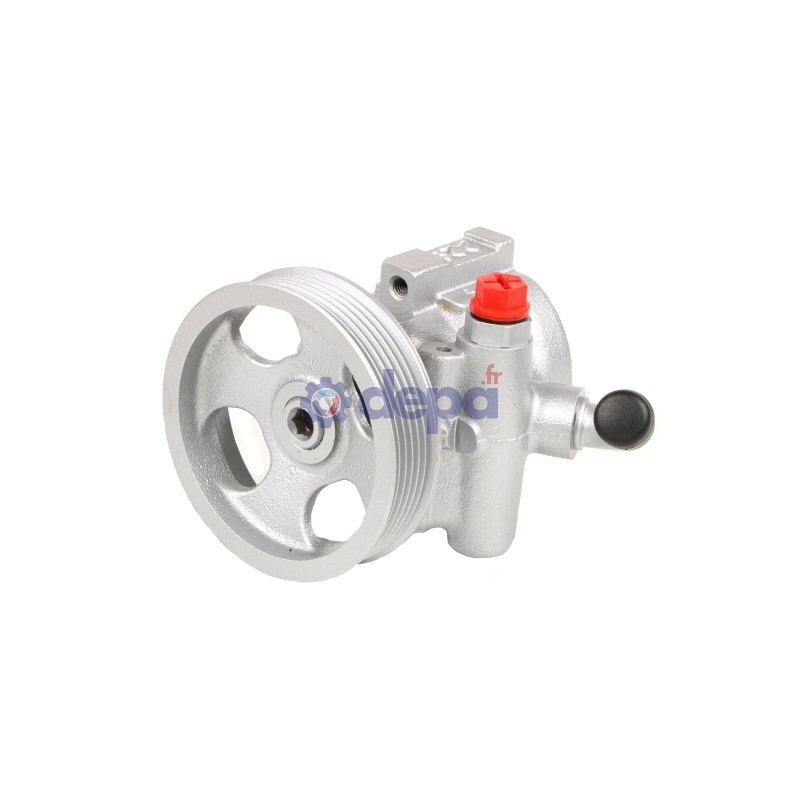

Hydraulic power steering pump

Return

605 2.5 D/TD

Ref : PA229

Matching vehicles :

605

Family :PA

Number of mounting points  : 2

Observations  : Right outlet

Type of pipe connection  : Bent

Pulley diameter  : 110 mm

Steering wheel position  : Left-hand drive

Presence of the reservoir  : Without

Axle diameter  : 19 mm

Number of ribs  : 6

Type of material  : Cast iron

Manufacturer  : SAGINAW

Height  : 120 mm

Presence of the pulley  : With

Presence of the support  : Without

INSTRUCTION MONTAGE

Minimum flow rate (50bar - 500 turns/minute)  : 4.90 L/min

Controlled flow rate  : 6.30 L/min

Maximum pressure  : 100.0 bar

POULIE PO0009

Equivalence to manufacturer references

  • PEUGEOT : 4007C7
