Hydraulic power steering pump

Return

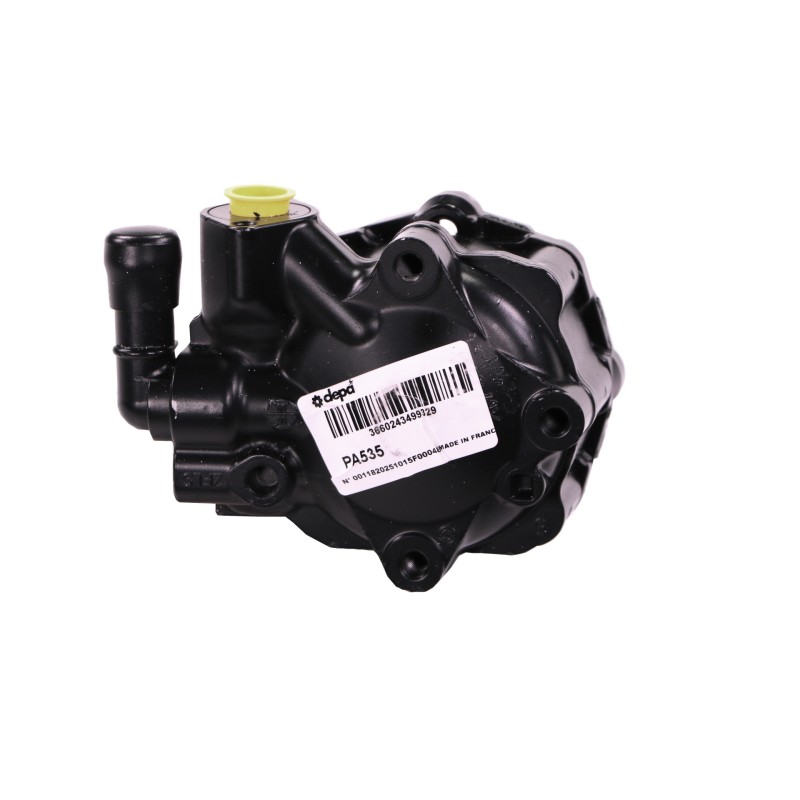

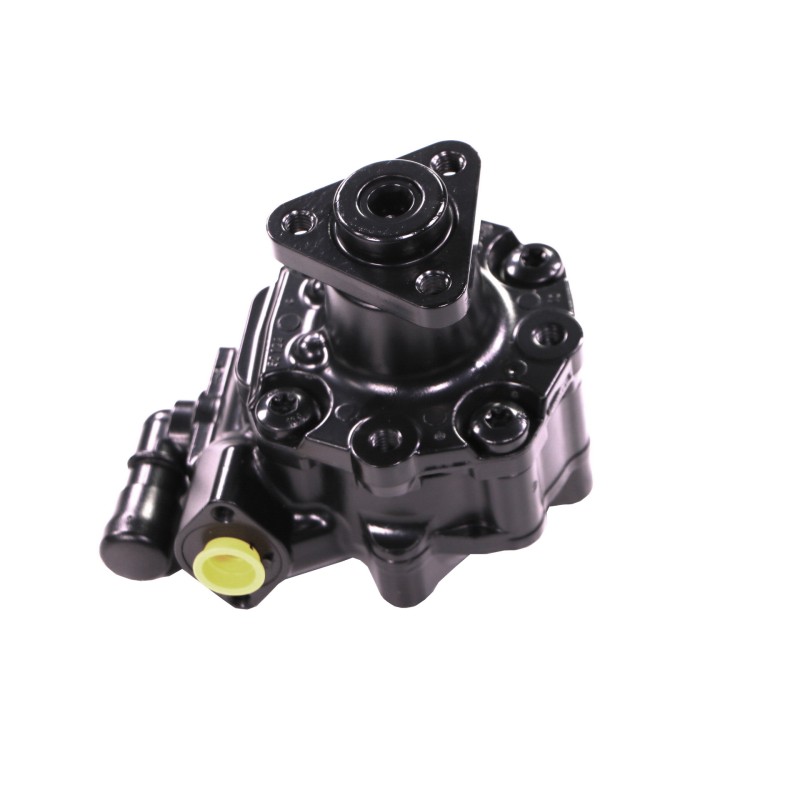

PA535.jpg 3D

AUDI A5

Ref : PA535

Matching vehicles :

A4 III - A5 SPORTBACK - A5 - A4 ALLROAD III

Family :PA

Axle diameter  : 19 mm

Manufacturer  : ZF

Height  : 114 mm

Number of mounting points  : 6

Observations  :

Steering wheel position  : Left-hand drive

Presence of the pulley  : Without

Presence of the reservoir  : Without

Presence of the support  : With

Type of material  : Aluminium

Type of pipe connection  : Bent

INSTRUCTION MONTAGE

Maximum pressure  : 132 bar

JOINT TORIQUE

Inner diameter  : 7 mm

SUPPORT POULIE

Diameter of axle  : 16.9 mm

Centre bore diameter  : 30 mm

Mounting hole diameter  : 8 mm

Outer diameter  : 55.7 mm

Centre distance  : 43.6 mm

Shape  : Triangular

Number of mounting holes  : 3

Pulley support SU01 SU01

Equivalence to manufacturer references

  • AUDI : 8K0145154N
