Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

FIAT : 1396528080
FIAT : 1399858080
FIAT : 71799906

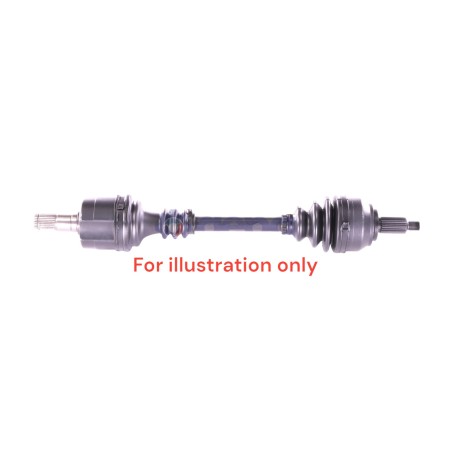

FIAT DUCATO II AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: FIAT DUCATO II AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3097160
Price: 337.45 EUR
Availability: OutOfStock

Ref : 3097160

Matching vehicles :

DUCATO 2

Family :TR

Collapsed length : 1140 mm

Length of the shaft (including bearing unit) : 432 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Thread pitch type : 33X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44.8 mm

Outer spline diameter : 31 mm

Housing diameter : 86 mm

Length of the shaft (including bearing unit) : 432 mm

Length of the gearbox output without seal seat : 69 mm

Number of external splines : 30

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 36 mm

Diamètre du bol : 106 mm

Shoulder diameter : 71.5 mm

Nombre de cannelures extérieures : 35

Number of splines on inner race : 29

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 50.5 mm

Height : 25 mm

Number of splines : 29

Sealing kit	COTE ROUE	T3076
	COTE ROUE	5036
	COTE BOITE	6182

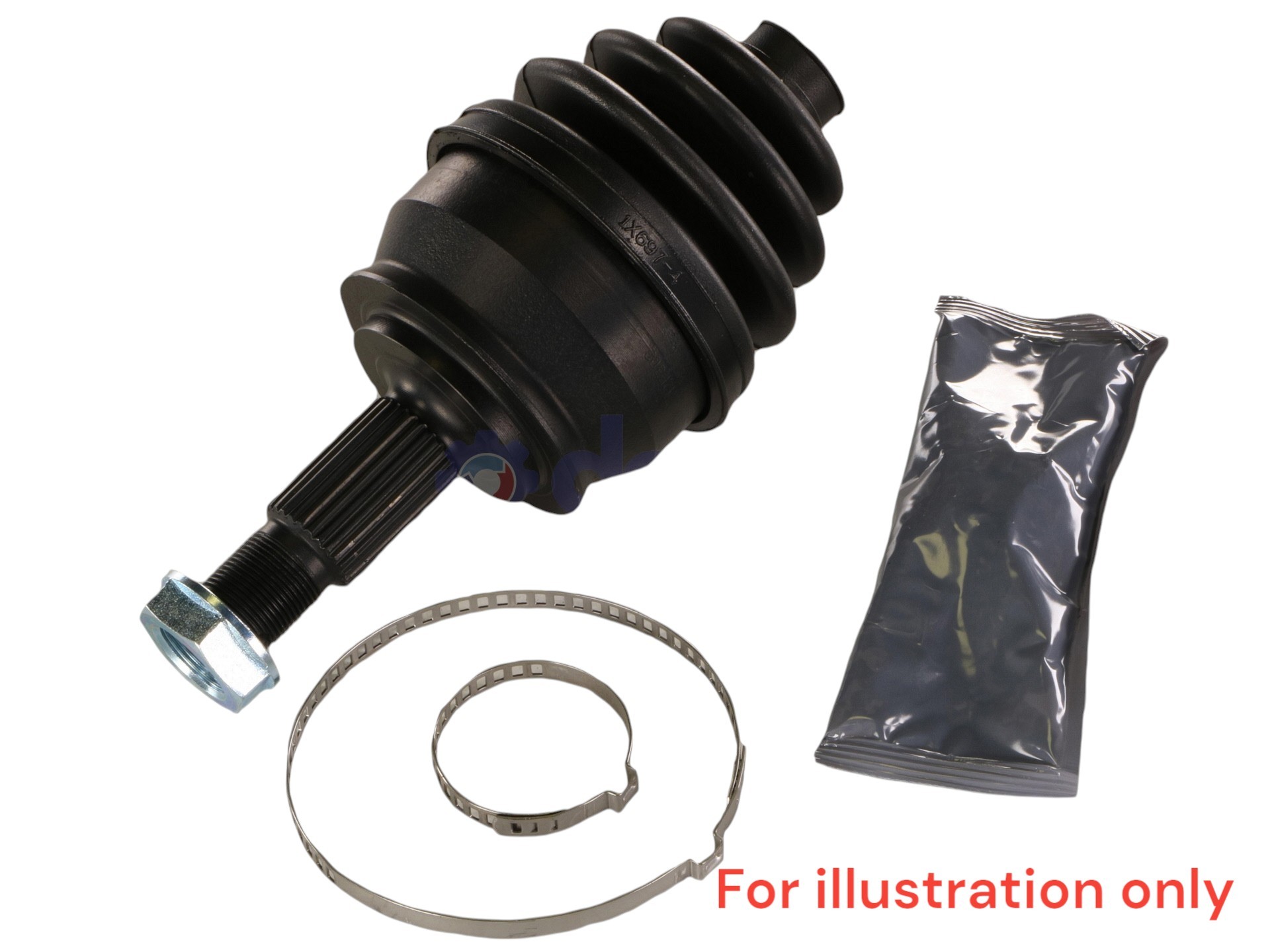

CV joint	COTE ROUE	JC72
CV joint	COTE BOITE	PALCBMF7160DT
Fixation	COTE ROUE	EC030
Fixation		EC013
