Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

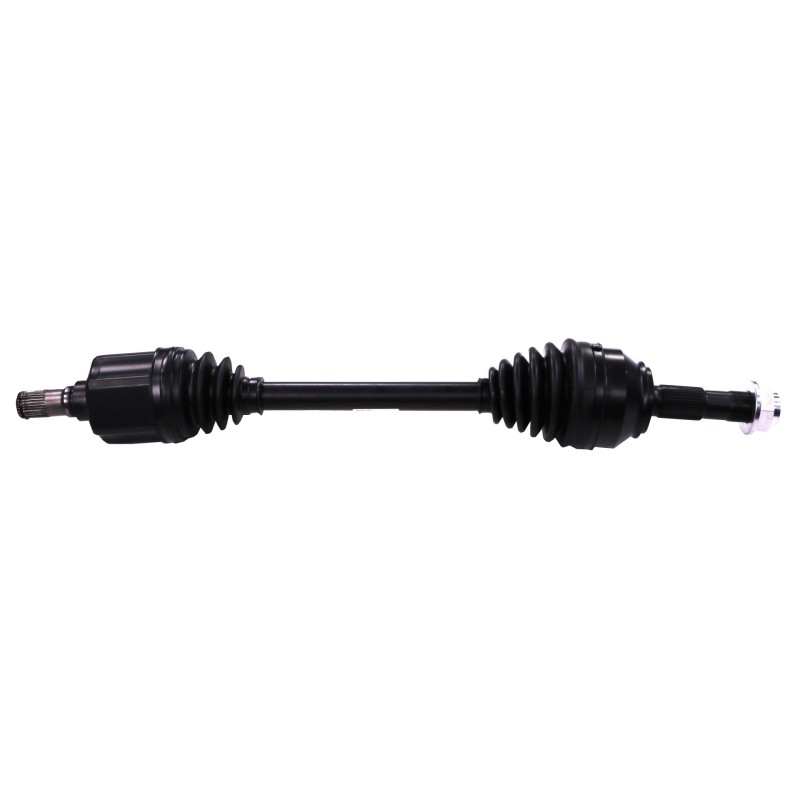

FIAT DUCATO II AUTOMATIC TRANSMISSION LEFT-SIDE

Name: FIAT DUCATO II AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3097170
Price: 289.39 EUR
Availability: OutOfStock

Ref : 3097170

Matching vehicles :

DUCATO 2

Family :TR

Compressed length : 770 mm

ABS on the vehicle : Yes

Thread pitch type : 33X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44.8 mm

Outer spline diameter : 31 mm

Housing diameter : 86 mm

Length of the gearbox output without seal seat : 69 mm

Number of external splines : 30

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 36 mm

Diamètre du bol : 106 mm

Shoulder diameter : 71.5 mm

Nombre de cannelures extérieures : 35

Number of splines on inner race : 29

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 50.5 mm

Height : 25 mm

Number of splines : 29

KITS ETANCHEITE TR neuf	COTE ROUE	T3076
	COTE ROUE	5036
	COTE BOITE	6182
JOINT HOMO Echange	COTE ROUE	JC72
JOINT HOMO Echange	COTE BOITE	CBMP7170GT
FIXATION	COTE ROUE	EC030
FIXATION		EC013

Equivalence to manufacturer references

FIAT : 1396529080
FIAT : 1399859080
FIAT : 71799867
