Catalog

Search by vehicle

Category :

Transmission

Return

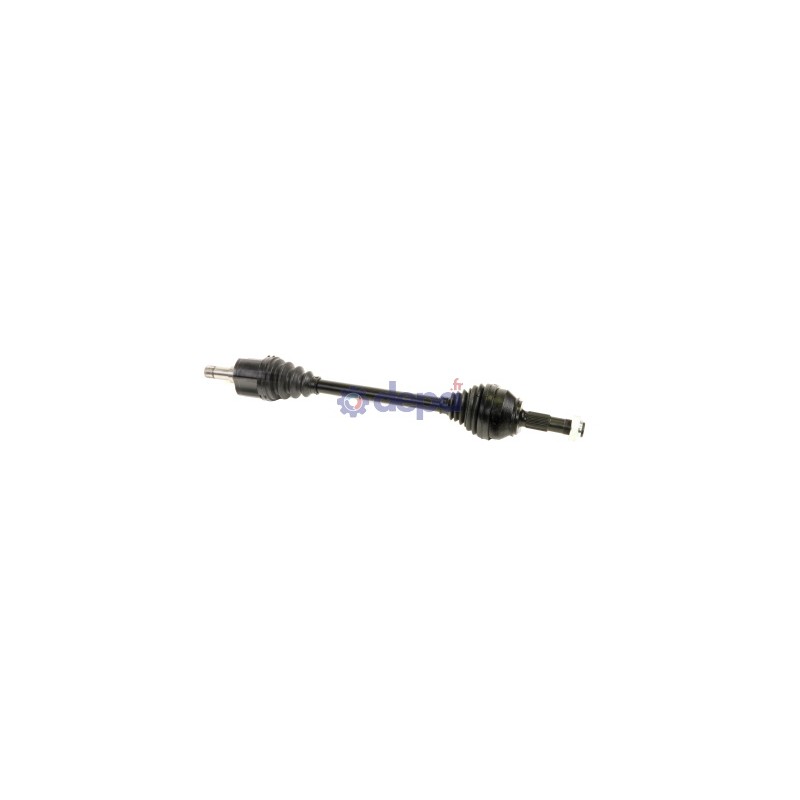

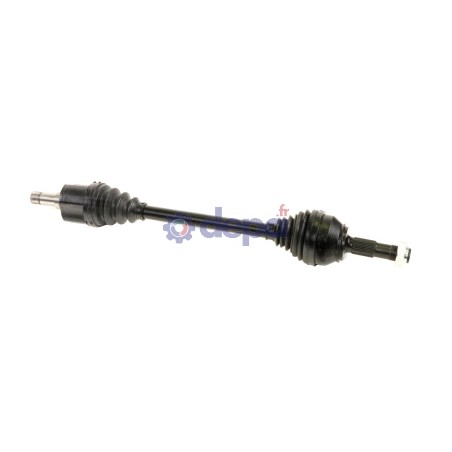

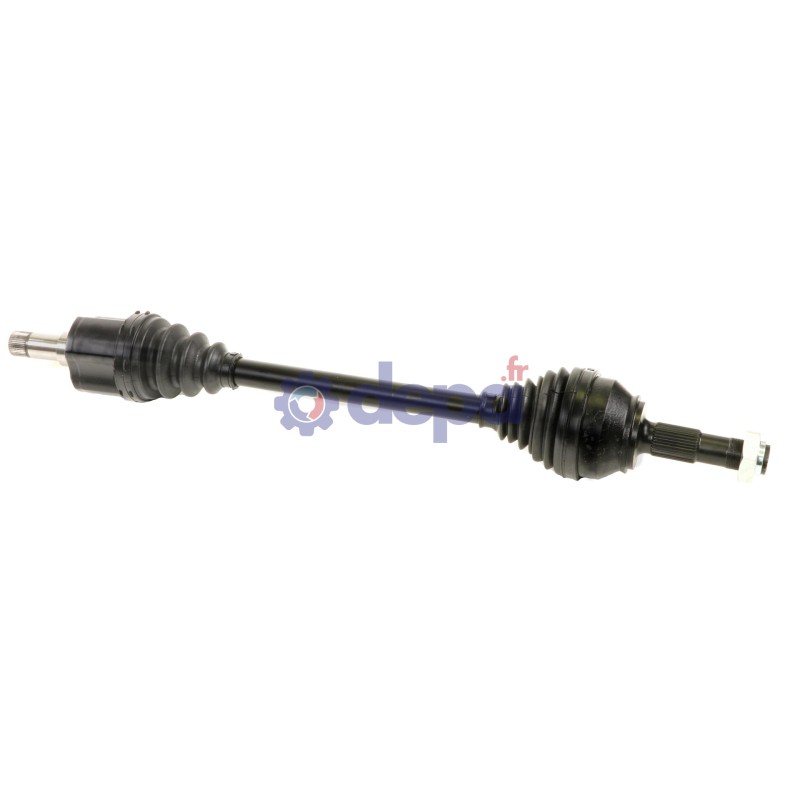

CITROEN JUMPER II G

Name: CITROEN JUMPER II G
Brand: Depa
SKU: 3097750
Price: 280.2 EUR
Availability: InStock

Ref : 3097750

Matching vehicles :

BOXER 3 - MOVANO III - JUMPER 3

Family :TR

Non-compressed length : 860 mm

ABS on the vehicle : Yes

COTE BOITE

Number of external splines : 41

Diamètre des cannelures extérieures : 31 mm

Number of splines on inner race : 29

Seal seat diameter : 34.79 mm

Length of the gearbox output without seal seat : 55 mm

Diamètre du bol : 86 mm

COTE ROUE

Outer spline diameter : 36 mm

Nombre de cannelures extérieures : 35

Type and position (snap ring/circlip) : Internal snap ring

Housing diameter : 106 mm

Shoulder diameter : 71.5 mm

Nombre de cannelures sur la noix : 29

Sealing kit	COTE ROUE	5101
		T3076
		5036
	COTE BOITE	6120
FIXATION	COTE ROUE	EC030
FIXATION		EC013
CV joint	COTE ROUE	JC72
CV joint	COTE BOITE	CBMC71GT
TRIAXE	COTE BOITE	TRIC71
RESSORT	COTE BOITE	REC44

Equivalence to manufacturer references

CITROËN : 1614305580
FIAT : 1380047080
CITROËN : 1614306180
