Catalog

Search by vehicle

Category :

Transmission

Return

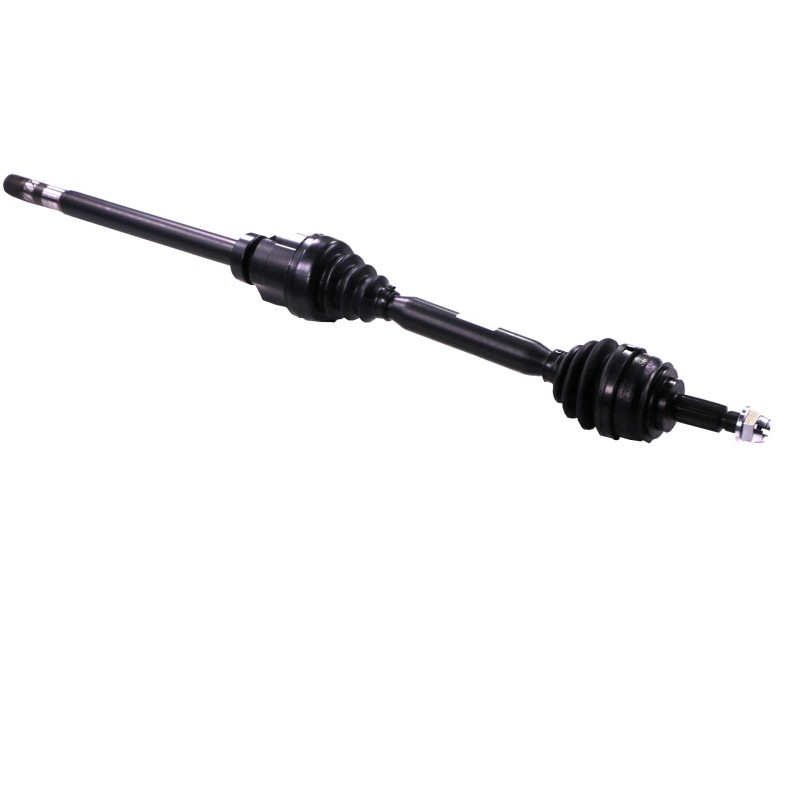

RENAULT MEGANE 4 RIGHT-SIDE

Name: RENAULT MEGANE 4 RIGHT-SIDE
Brand: Depa
SKU: 3105600
Price: 280.86 EUR
Availability: OutOfStock

Ref : 3105600

Matching vehicles :

MEGANE 4

Family :TR

ABS on the vehicle : Yes

Length : 1065 mm

Compressed length : 1040 mm

COTE ROUE

Outer spline diameter : 29.5 mm

Housing diameter : 90 mm

Type and position (snap ring/circlip) : Internal snap ring

Shoulder diameter : 56 mm

Number of splines on inner race : 36

Nombre de cannelures extérieures : 27

Observations : 8 balls

COTE BOITE

Number of external splines : 39

Seal seat diameter : 30 mm

Diamètre des cannelures extérieures : 29.7 mm

Diamètre du bol : 82 mm

Length of the gearbox output without seal seat : 73 mm

FIXATION	COTE ROUE	EC011
CV joint	COTE ROUE	JR1460
CV joint	COTE BOITE	PALCBMR561DT
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6193
ROULEMENT	COTE BOITE	RLT006
RESSORT	COTE BOITE	REC44

Equivalence to manufacturer references

RENAULT : 391009246R
RENAULT : 391008052R
