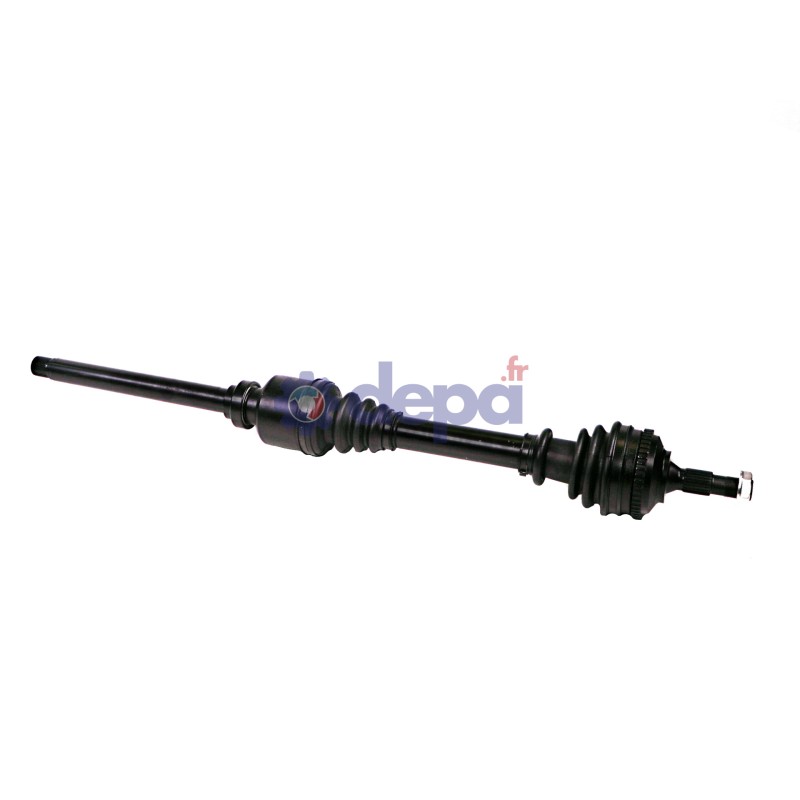

PEUGEOT 406 WITH ABS RIGHT-SIDE

Name: PEUGEOT 406 WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3189548
Price: 238.53 EUR
Availability: InStock

Ref : 3189548

Matching vehicles :

406

Family :TR

Height : 13.5 mm

Length of the shaft (including bearing unit) : 337 mm

Non-compressed length : 930 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

COURONNE ABS COTE ROUE

Outer diameter : 99 mm

Inner diameter : 90 mm

Width : 10 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 98 mm

Length of the shaft (including bearing unit) : 337 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 100 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 39

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Diamètre extérieur : 62 mm

Diamètre intérieur : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 85 mm

Diameter (little) : 38 mm

Length : 95 mm

Number of grooves : 2

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 96 mm

Diamètre (petit) : 36 mm

Longueur : 96 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	T3070
		T3061
		T3005
		5059
		5102
	COTE BOITE	T3078
	COTE BOITE	6057
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JP9348
CV joint	COTE BOITE	PALCBMP98D
Bearing	COTE BOITE	RLT005
Spring	COTE BOITE	REC44
Tripod joint	COTE BOITE	TRIC44
ABS ring		COU017
ABS ring		COU018

Equivalence to manufacturer references

PEUGEOT : 32737A
PEUGEOT : 32737C
