Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

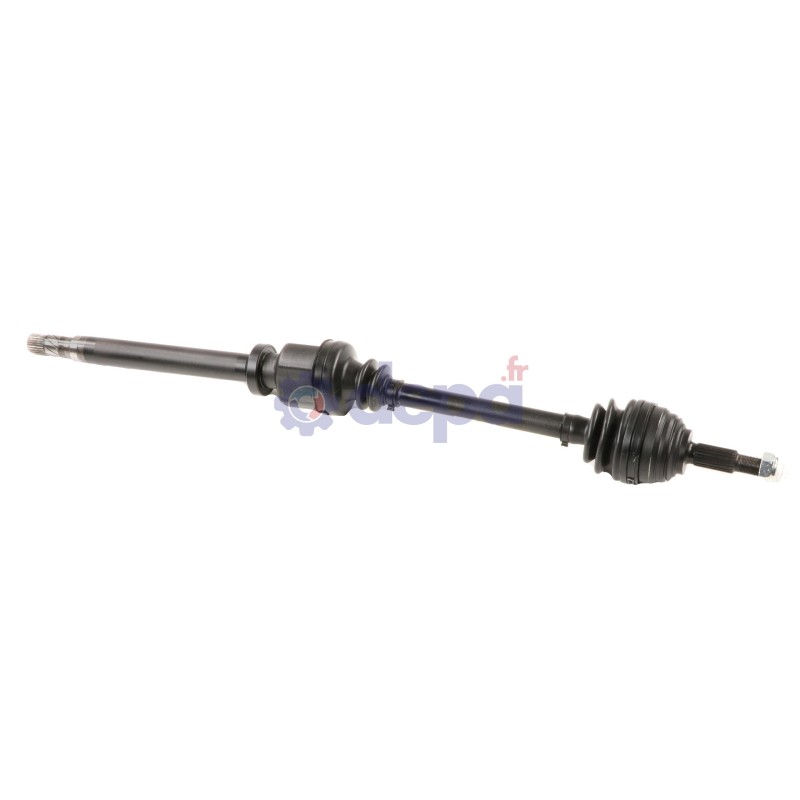

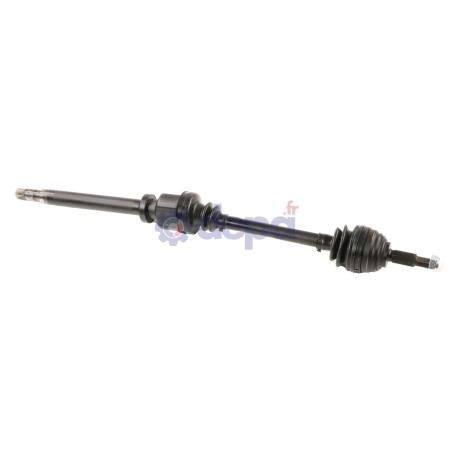

CLIO III/MODUS/LOGAN RIGHT-SIDE

Name: CLIO III/MODUS/LOGAN RIGHT-SIDE
Brand: Depa
SKU: 3204500
Price: 122.05 EUR
Availability: InStock

Ref : 3204500

Matching vehicles :

CLIO 3 - MODUS - LOGAN I - LOGAN I MCV

Family :TR

Height : 25 mm

Compressed length : 895 mm

Length of the shaft (including bearing unit) : 327 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 33 mm

Outer spline diameter : 26.5 mm

Housing diameter : 70 mm

Length of the shaft (including bearing unit) : 327 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 81 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 14 mm

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 15.5 mm

Length : 104 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 24 mm

Number of splines : 30

KITS ETANCHEITE TR neuf	COTE ROUE	T3113
		T3081
		5016
		5017
	COTE BOITE	T5030
		T5021
		6033
		6108
		6041
FIXATION	COTE ROUE	EC011
JOINT HOMO Echange	COTE ROUE	JR32
		JR85
		JR29
	COTE BOITE	PALCBMR86DT
	COTE BOITE	PALCBMR29DT
ROULEMENT	COTE BOITE	RLT018
TRIAXE	COTE BOITE	TRIP06
TRIAXE	COTE BOITE	TRIR07
