Category :

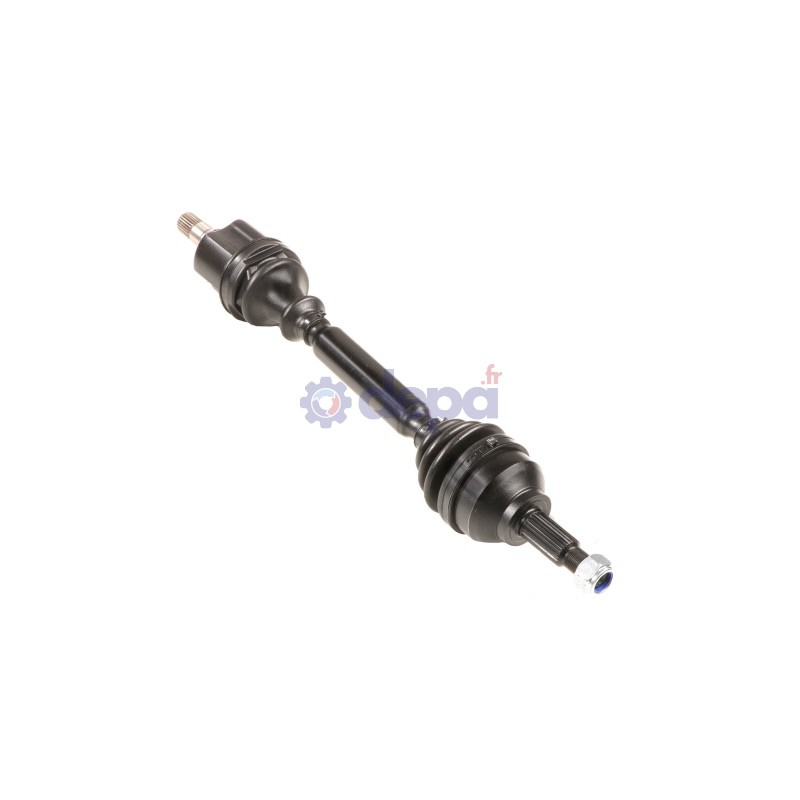

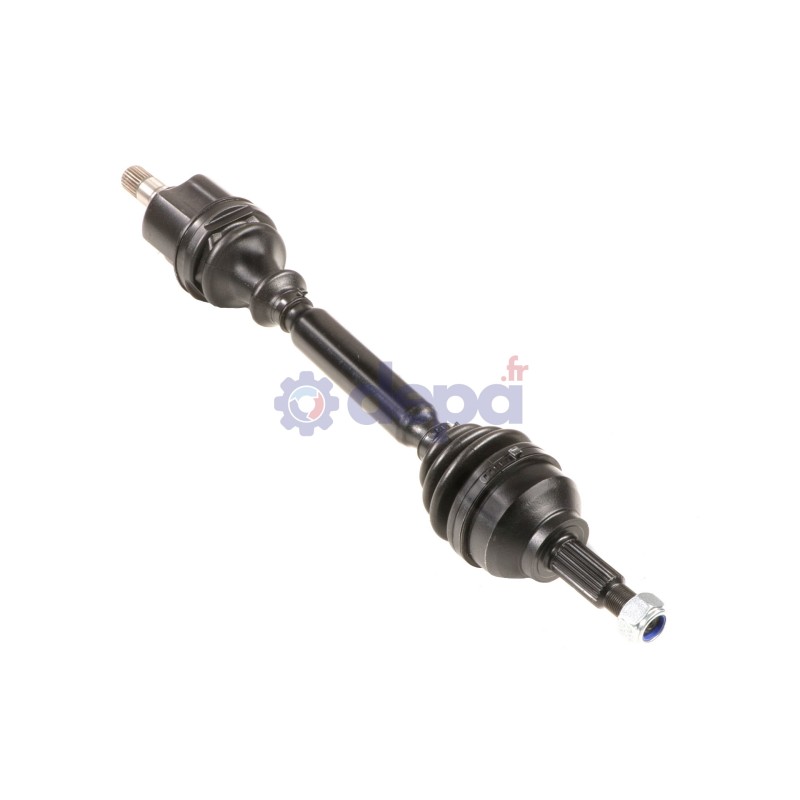

Transmission
Ref : 3207150
Matching vehicles :
VEL SATISFamily :TR
Height : 25 mm
Compressed length : 680 mm
ABS on the vehicle : Yes
Thread pitch type : 22X150
Nut type : Washer
JOINT HOMOCINETIQUE COTE ROUE
Outer spline diameter : 29 mm
Housing diameter : 92 mm
Shoulder diameter : 56 mm
Number of external splines : 27
Number of splines on inner race : 26
Observations : 6 balls/Threading length 33mm/Threading Ø22mm
Type and position (snap ring/circlip) : Centered snap ring
SOUFFLET COTE ROUE
Diameter (big) : 88 mm
Diameter (little) : 22 mm
Length : 88 mm
Number of grooves : 1
Type of material : Neoprene
| Sealing kit | COTE ROUE | T3073 |
|
| 5020 |
|
||
| COTE BOITE | 6043 |
|
|
| CV joint | COTE ROUE | JR71 |
|
| Fixation | COTE ROUE | EC011 |
|
Equivalence to manufacturer references
RENAULT : 7711135301
RENAULT : 8200096787
RENAULT : 8200381110
RENAULT : 8200387374
