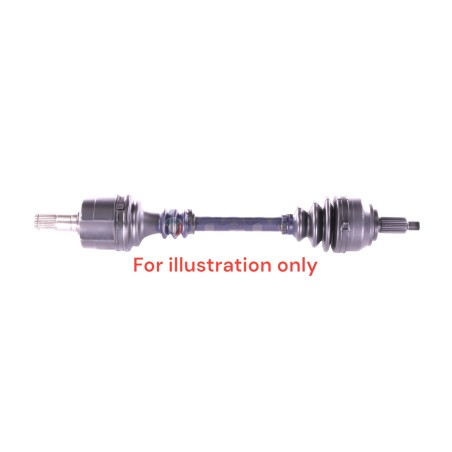

FIAT DUCATO II RIGHT-SIDE

Name: FIAT DUCATO II RIGHT-SIDE
Brand: Depa
SKU: 3096800
Price: 280.2 EUR
Availability: OutOfStock

Ref : 3096800

Matching vehicles :

DUCATO 2

Family :TR

Compressed length : 1245 mm

ABS on the vehicle : Yes

Thread pitch type : 33X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 33.7 mm

Housing diameter : 85.3 mm

Length of the shaft (including bearing unit) : 513 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 31

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 36 mm

Diamètre du bol : 106 mm

Shoulder diameter : 71.5 mm

Nombre de cannelures extérieures : 35

Number of splines on inner race : 29

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 82 mm

Diameter (little) : 29 mm

Beads thickness : 16 mm

Length : 95 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 42 mm

Height : 32.5 mm

Number of splines : 29

CV joint	COTE ROUE	JC72
CV joint	COTE BOITE	PALCBMP68DT
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6120
Fixation	COTE ROUE	EC030
Bearing	COTE BOITE	RLT005
Tripod joint	COTE BOITE	TRIC71

Equivalence to manufacturer references

FIAT : 46357025
FIAT : 46857594
FIAT : 71799816
