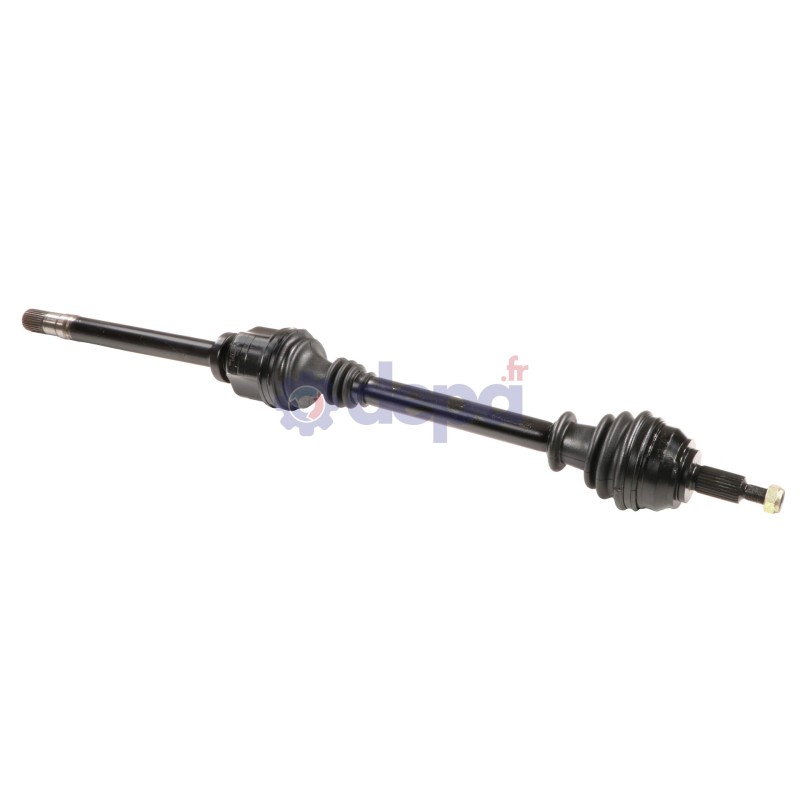

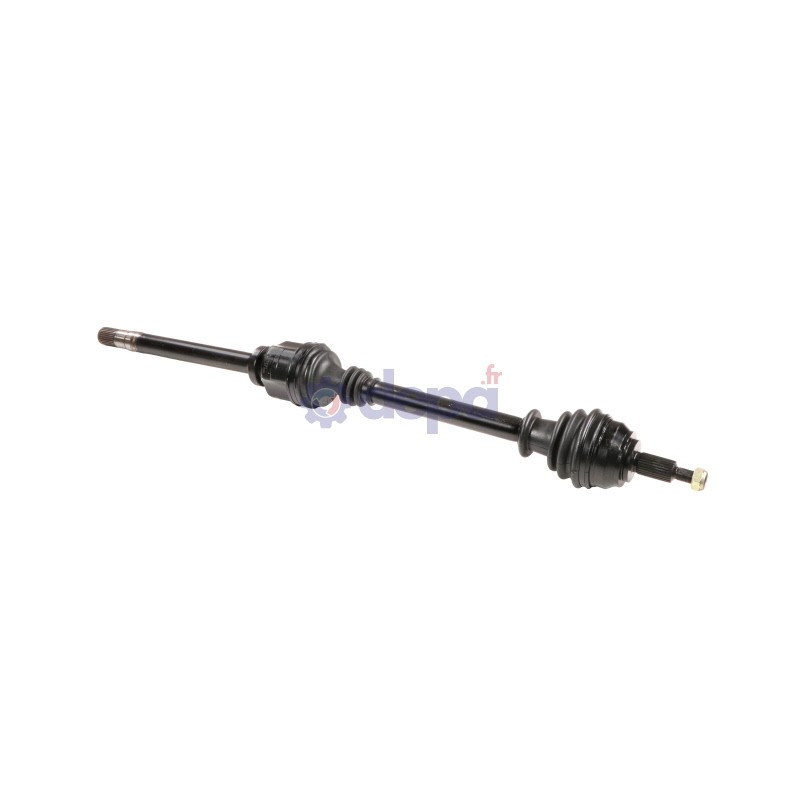

RENAULT LAGUNA III DCI AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: RENAULT LAGUNA III DCI AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3020660
Price: 246.46 EUR
Availability: InStock

Ref : 3020660

Matching vehicles :

LAGUNA 3

Family :TR

Length of the shaft (including bearing unit) : 340 mm

ABS on the vehicle : Yes

Compressed length : 965 mm

COTE ROUE

Outer spline diameter : 29.5 mm

Number of external splines : 27

Number of splines on inner race : 36

Type and position (snap ring/circlip) : Internal snap ring

COTE BOITE

Length of the shaft (including bearing unit) : 340 mm

Length of the gearbox output without seal seat : 64 mm

Diamètre des cannelures extérieures : 31 mm

Housing diameter : 82 mm

Nombre de cannelures extérieures : 30

Seal seat diameter : 34 mm

CV joint	COTE ROUE	JR01
CV joint	COTE BOITE	PALCBMR0660DT
FIXATION	COTE ROUE	EC033
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6150
ROULEMENT	COTE BOITE	RLT018
TRIAXE	COTE BOITE	TRIR01

Equivalence to manufacturer references

RENAULT : 8201236068
RENAULT : 8200786810
RENAULT : 8200687911
