Equivalence to manufacturer references

ALFA ROMEO : 50542749
ALFA ROMEO : 50547111
ALFA ROMEO : 50564450
ALFA ROMEO : 71797842

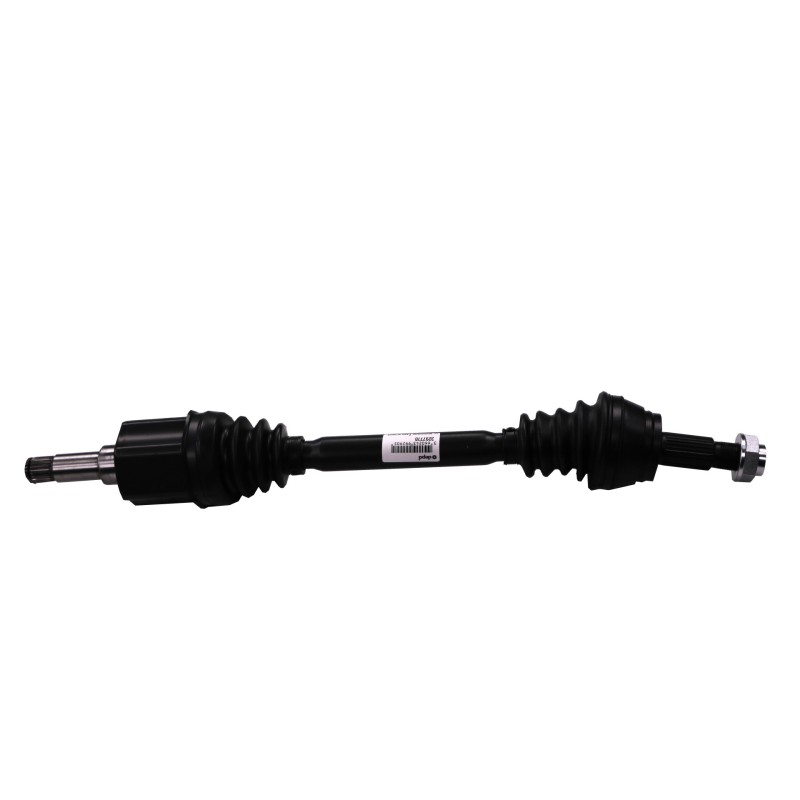

ALFA GIULIA II AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: ALFA GIULIA II AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3297770
Price: 360 EUR
Availability: OutOfStock

Ref : 3297770

Matching vehicles :

GIULIA II

Family :TR

Collapsed length : 970 mm

ABS on the vehicle : Yes

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 28.5 mm

Outer spline diameter : 23.6 mm

Housing diameter : 68.5 mm

Length of the shaft (including bearing unit) : 410 mm

Length of the gearbox output without seal seat : 47 mm

Number of external splines : 22

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 77.5 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 27

Number of internal splines : 23

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39.9 mm

Height : 20 mm

Number of splines : 23

Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6082

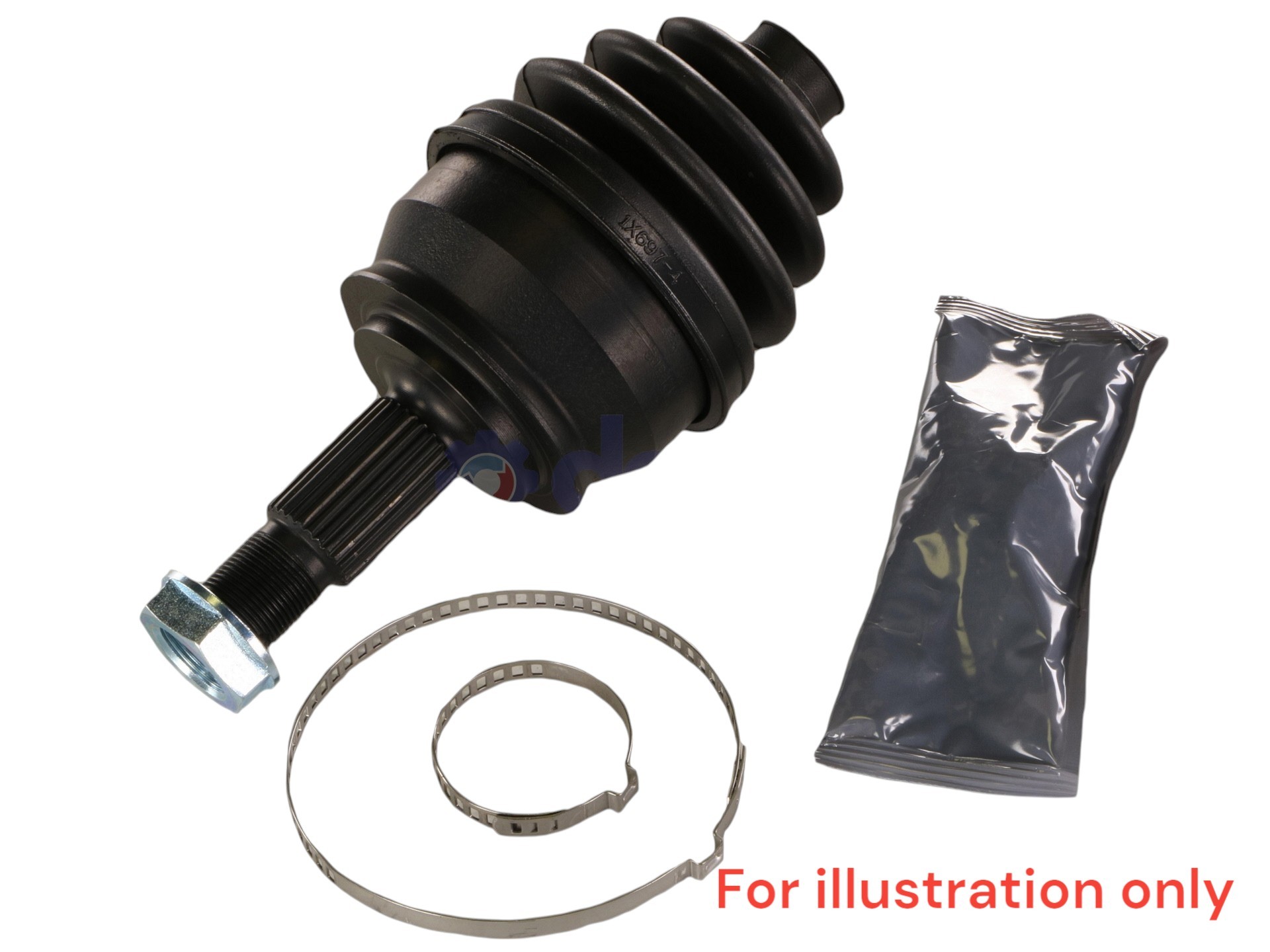

CV joint	COTE ROUE	JAL3270
CV joint	COTE BOITE	PALCBMAL7770GT
Bearing	COTE BOITE	RLT017
Fixation		EC021
