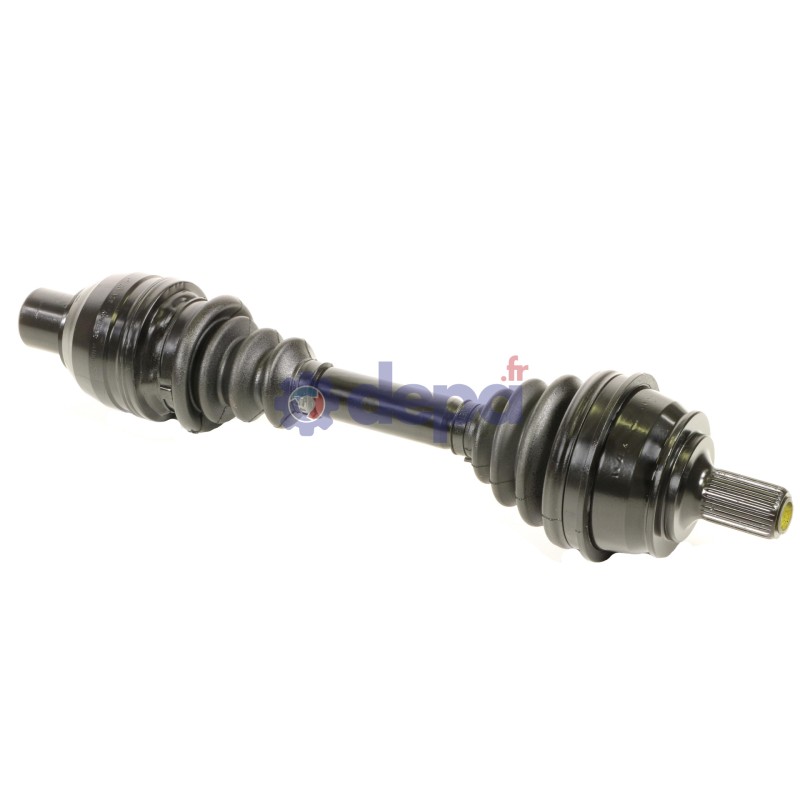

MERCEDES A-CLASS III RIGHT-SIDE

Name: MERCEDES A-CLASS III RIGHT-SIDE
Brand: Depa
SKU: 3305300
Price: 316.7 EUR
Availability: InStock

Ref : 3305300

Matching vehicles :

CLASSE B II - CLASSE A III - CLASSE CLA (X117) - CLASSE GLA (X156)

Family :TR

Compressed length : 497 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 29 mm

Housing diameter : 94 mm

Number of internal splines : 27

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 31.5 mm

Diamètre du bol : 89 mm

Shoulder diameter : 65 mm

Number of external splines : 30

Number of splines on inner race : 27

Observations : Dust shield Ø90mm/Threading Ø16mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Length : 97 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

CV joint	COTE ROUE	JME53
CV joint	COTE BOITE	CBFME54D
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	5002
Fixation	COTE ROUE	VI002

Equivalence to manufacturer references

MERCEDES-BENZ : 2463302401
MERCEDES-BENZ : 2463302800
MERCEDES-BENZ : 2463303000
MERCEDES-BENZ : 2463307700
MERCEDES-BENZ : 2463308900
MERCEDES-BENZ : 2463309100
