Catalog

Search by vehicle

Category :

Transmission

Return

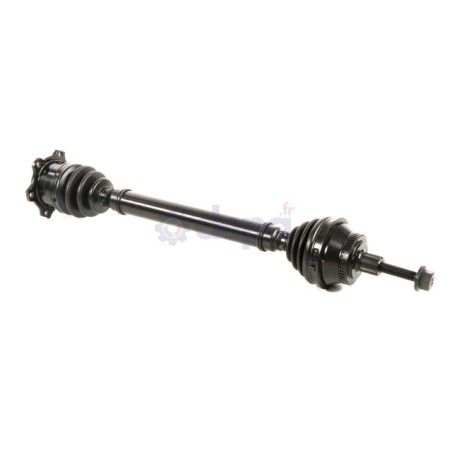

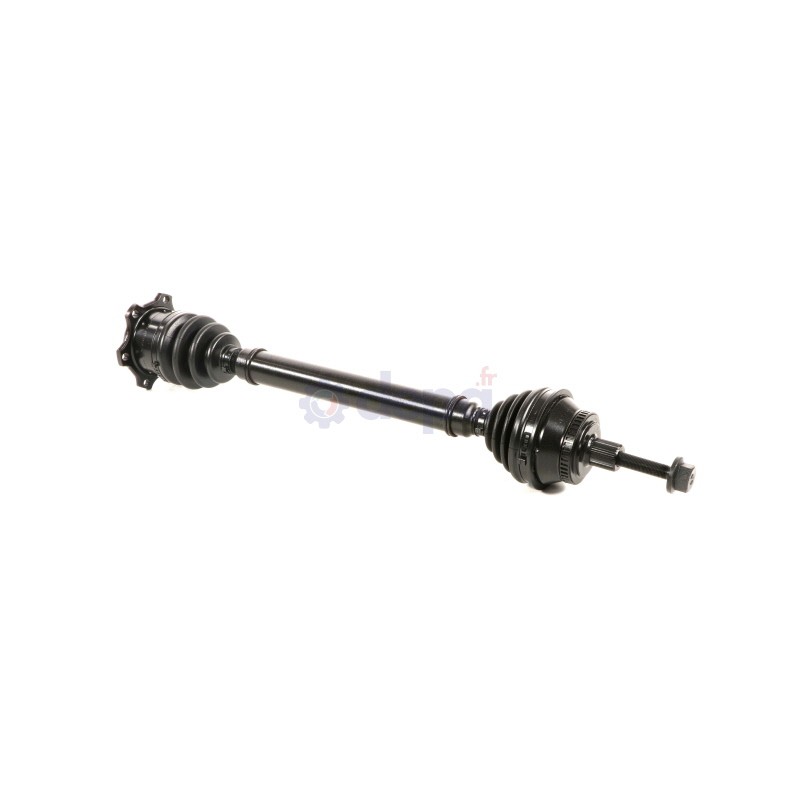

AUDI/SKODA/VW AUTOMATIC TRANSMISSION LEFT-SIDE

Name: AUDI/SKODA/VW AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3323550
Price: 262.59 EUR
Availability: InStock

Ref : 3323550

Matching vehicles :

A4 - PASSAT 3 - PASSAT 2 - SUPERB I

Family :TR

Compressed length : 530 mm

ABS on the vehicle : Yes

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 81 mm

Inner diameter : 77 mm

Width : 11 mm

Number of teeth : 45

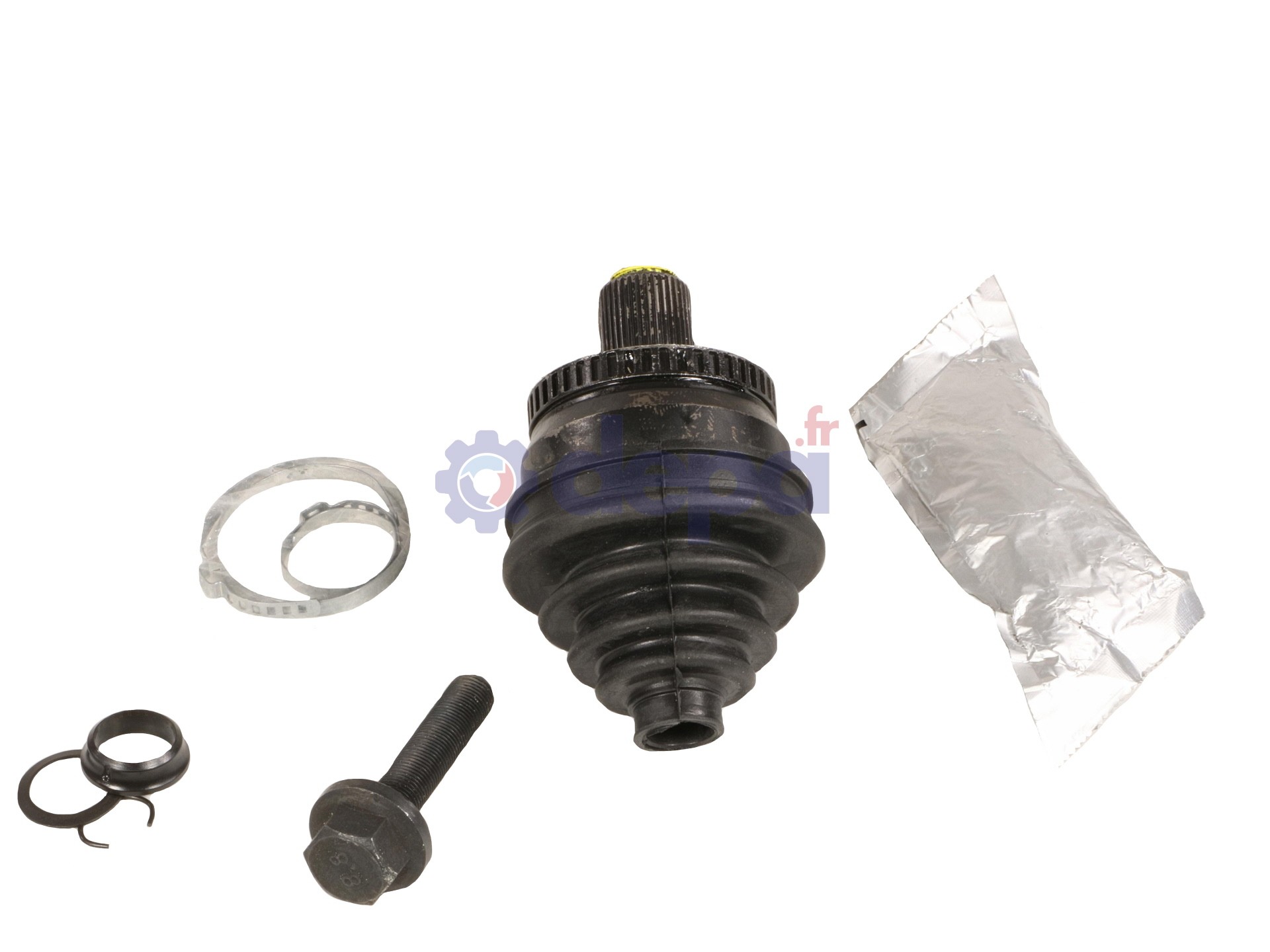

JOINT HOMOCINETIQUE COTE BOITE

Outer diameter (gearbox side) : 90 mm

Outer diameter (boot side) : 130 mm

Number of splines on inner race : 34

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 31 mm

Housing diameter : 98 mm

Shoulder diameter : 59 mm

Number of external splines : 38

Nombre de cannelures sur la noix : 27

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 21 mm

Length : 84 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41 mm

Height : 24 mm

Number of splines : 34

Sealing kit	COTE ROUE	T3002
		T3048
		5026
	COTE BOITE	6056
CV joint	COTE ROUE	JW541
CV joint	COTE ROUE	JW54
Fixation	COTE ROUE	VI003
Tripod joint	COTE BOITE	TRIAL66
ABS ring		COU033

Equivalence to manufacturer references

AUDI : 8D0407271AK
AUDI : 8D0407271BC
AUDI : 8D0407451JX
AUDI : 8D0407451KX
AUDI : 8D0407453CX
SKODA : 8D0407451SX
VOLKSWAGEN (SVW) : 8D0407271ED
