Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

OPEL : 13109126
OPEL : 374560

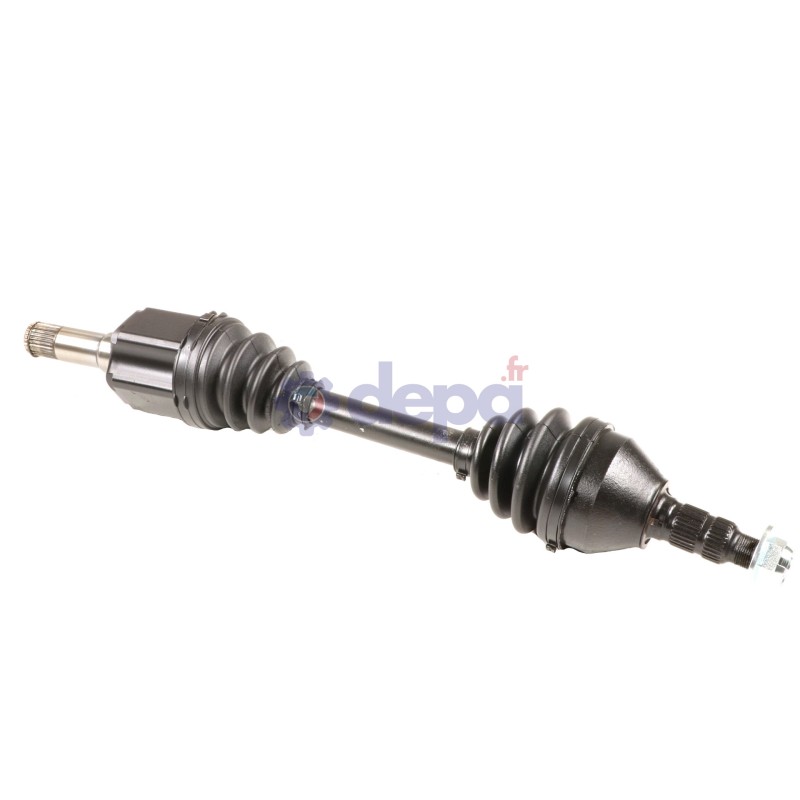

OPEL ZAFIRA B AUTOMATIC TRANSMISSION

Name: OPEL ZAFIRA B AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3330269
Price: 242.14 EUR
Availability: OutOfStock

Ref : 3330269

Matching vehicles :

ZAFIRA B

Family :TR

Collapsed length : 577 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 28 mm

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 29.5 mm

Housing diameter : 73 mm

Length of the gearbox output without seal seat : 76 mm

Number of external splines : 27

Number of splines on inner race : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33 mm

Diamètre du bol : 90 mm

Shoulder diameter : 54 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 26

Observations : Short threading

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 27 mm

Beads thickness : 9.5 mm

Length : 118 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3116
	COTE ROUE	5020
	COTE BOITE	6076
	COTE BOITE	6059
CV joint	COTE ROUE	JO73
CV joint	COTE BOITE	CBMAL69GT
Fixation	COTE ROUE	EC012
Tripod joint	COTE BOITE	TRIAL70
