Catalog

Search by vehicle

Category :

Transmission

Return

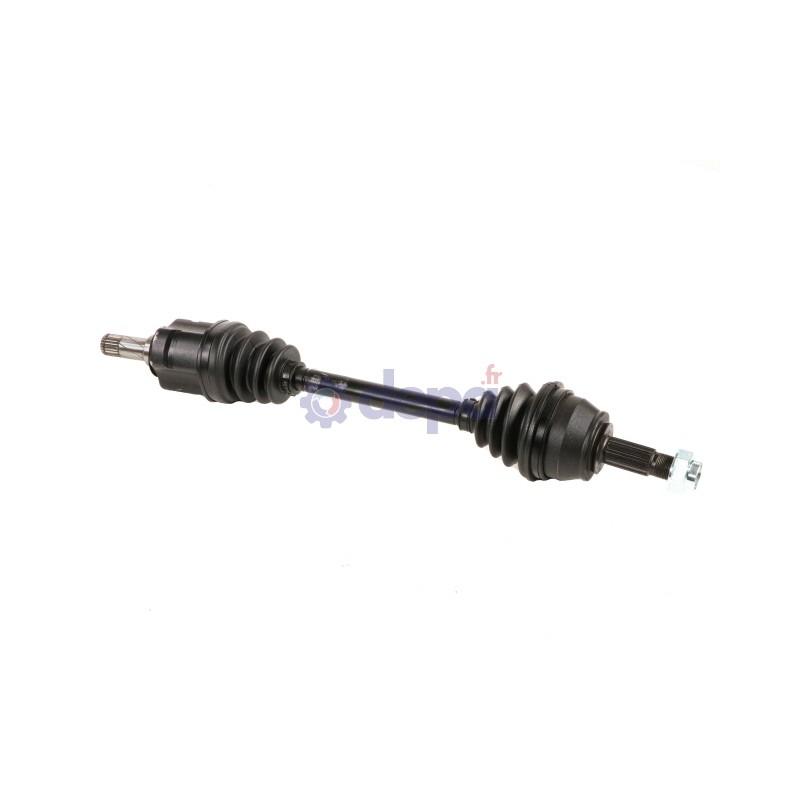

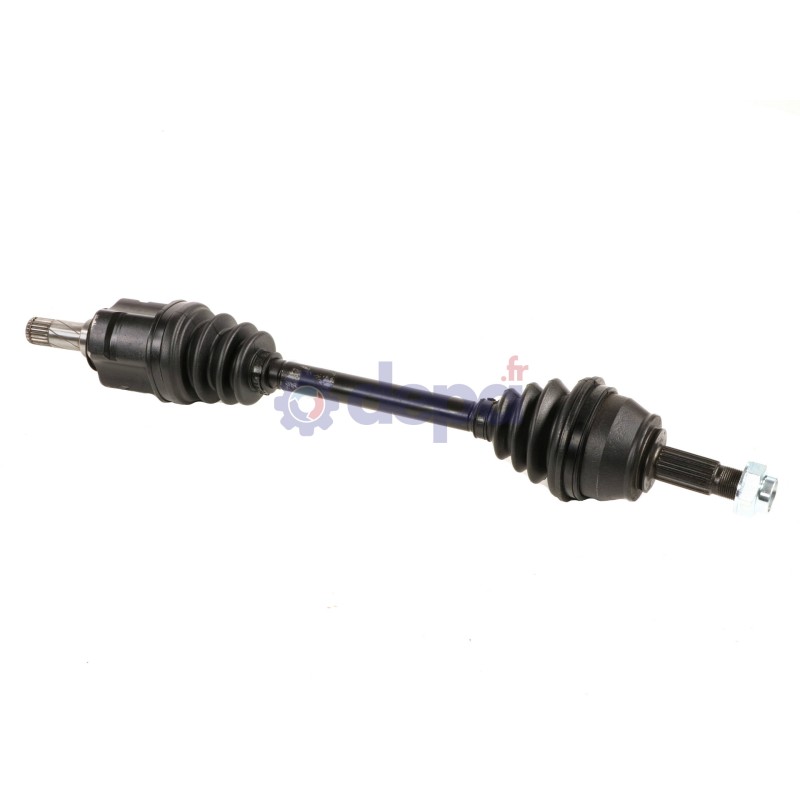

OPEL CORSA D

Name: OPEL CORSA D
Brand: Depa
SKU: 3337702
Price: 257.22 EUR
Availability: InStock

Ref : 3337702

Matching vehicles :

CORSA D

Family :TR

Height : 25 mm

Compressed length : 615 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 25 mm

Housing diameter : 64.5 mm

Length of the gearbox output without seal seat : 57.5 mm

Number of external splines : 22

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 79 mm

Shoulder diameter : 51 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 22

Observations :

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 60 mm

Diameter (little) : 19 mm

Beads thickness : 14 mm

Length : 84 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 32 mm

Height : 23 mm

Number of splines : 22

CV joint	COTE ROUE	JP53
	COTE ROUE	JP53
	COTE BOITE	CBMO77T
Sealing kit	COTE ROUE	T3083
		T3009
		5017
		T3010
		5017
	COTE BOITE	6108
Fixation	COTE ROUE	EC021
Fixation		EC021
Tripod joint	COTE BOITE	TRIP06

Equivalence to manufacturer references

GMC : 13320255
GMC : 95520473
OPEL : 374873
OPEL : 9503151
OPEL : 95520474
