Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

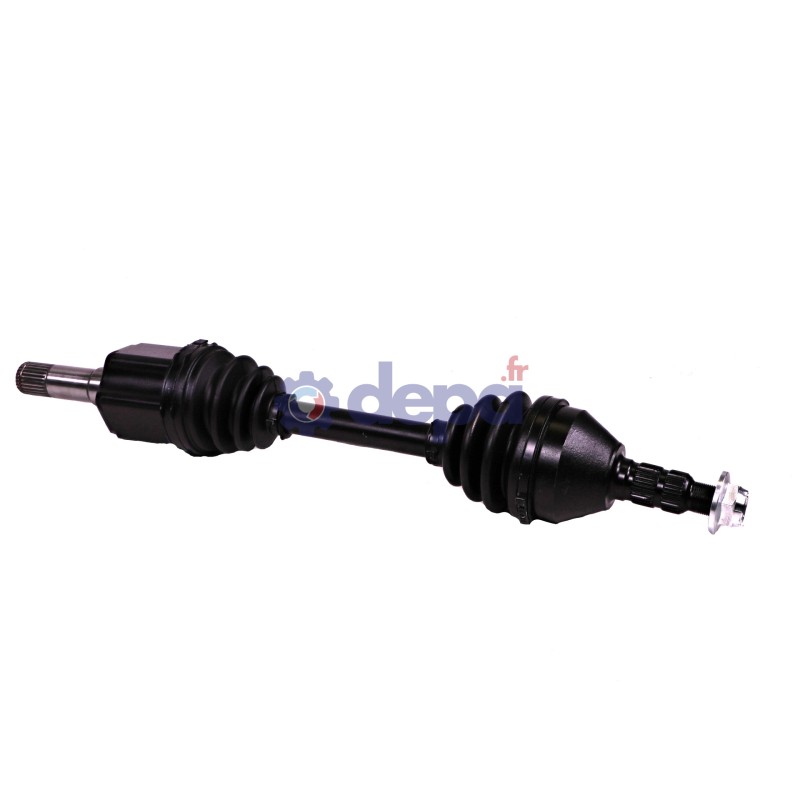

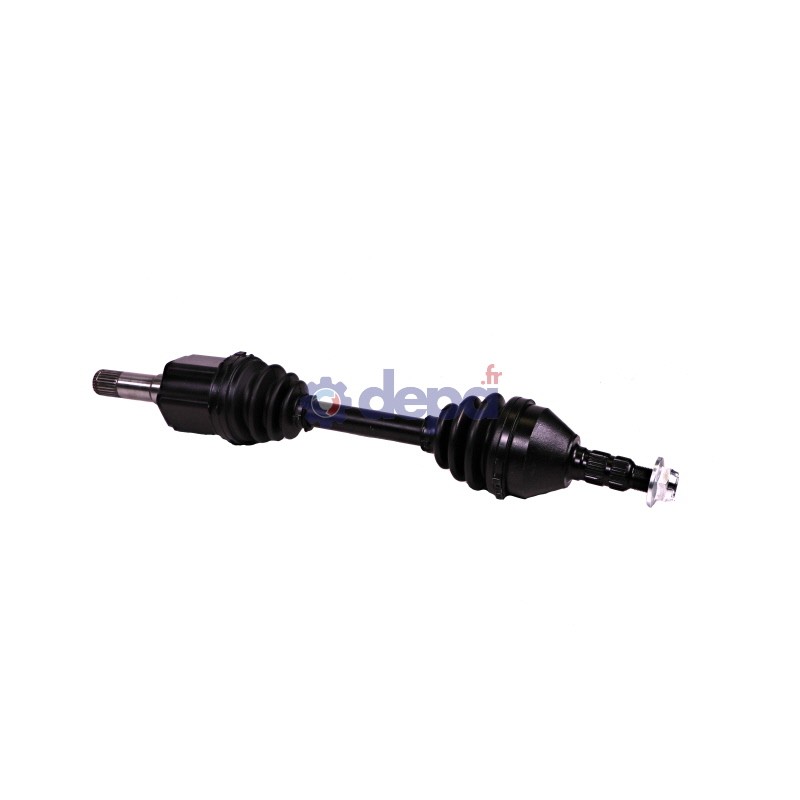

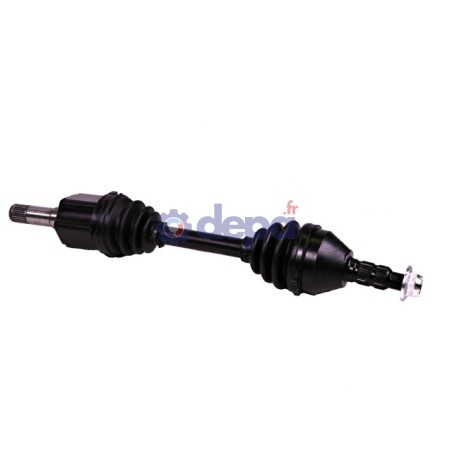

OPEL INSIGNIA AUTOMATIC TRANSMISSION

Name: OPEL INSIGNIA AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3339160
Price: 242.65 EUR
Availability: InStock

Ref : 3339160

Matching vehicles :

INSIGNIA A (G09) - INSIGNIA

Family :TR

Height : 28 mm

Compressed length : 615 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 29.5 mm

Housing diameter : 73 mm

Length of the gearbox output without seal seat : 78 mm

Number of external splines : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33 mm

Diamètre du bol : 90 mm

Shoulder diameter : 54 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 26

Observations : Short threading

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Beads thickness : 14 mm

Length : 70 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

KITS ETANCHEITE TR neuf	COTE ROUE	T3116
	COTE ROUE	5020
	COTE BOITE	6085
FIXATION	COTE ROUE	EC012
JOINT HOMO Echange	COTE ROUE	JO73
JOINT HOMO Echange	COTE BOITE	CBMO1470GT
TRIAXE	COTE BOITE	TRIAL70

Equivalence to manufacturer references

GMC : 13228199
GMC : 22796269
GMC : 93169653
OPEL : 13228203
OPEL : 374832
OPEL : 374834
OPEL : 374930
OPEL : 375059
OPEL : R1640063
VAUXHALL : 13228203
VAUXHALL : R1640063
