Catalog

Search by vehicle

Category :

Transmission

Return

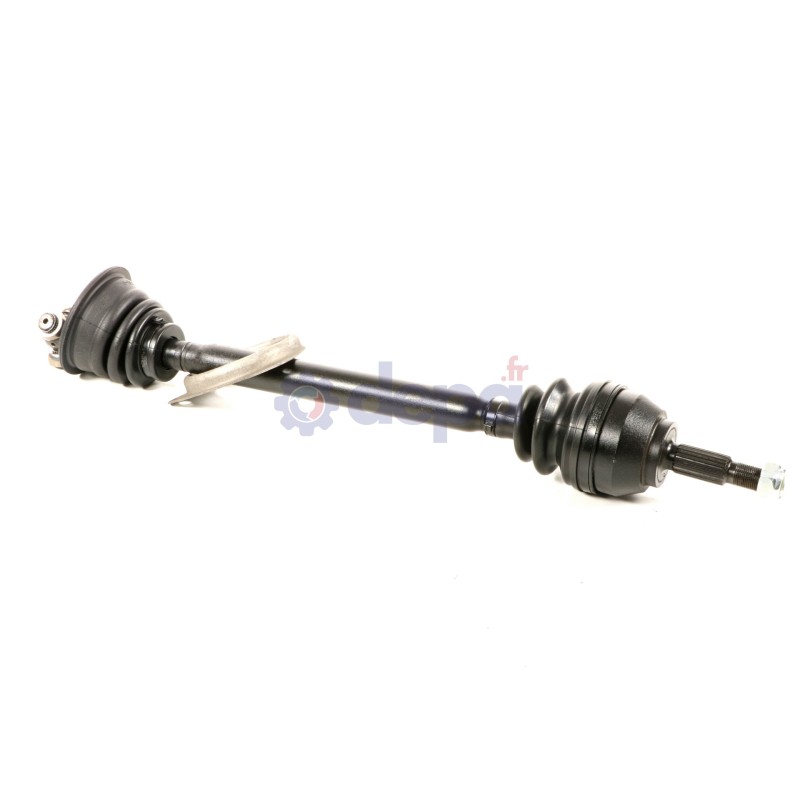

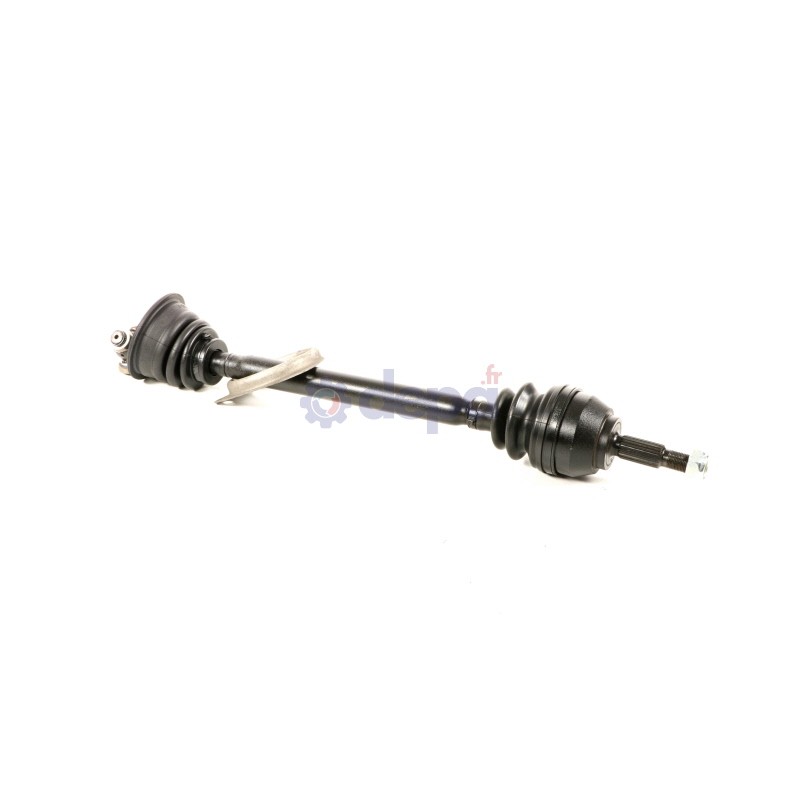

RENAULT LAGUNA DTI LEFT-SIDE

Name: RENAULT LAGUNA DTI LEFT-SIDE
Brand: Depa
SKU: 3025655
Price: 155.03 EUR
Availability: InStock

Ref : 3025655

Matching vehicles :

LAGUNA 1

Family :TR

Height : 16.5 mm

Compressed length : 710 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 25 mm

Housing diameter : 90 mm

Shoulder diameter : 56 mm

Number of external splines : 23

Number of splines on inner race : 25

Type and position (snap ring/circlip) : External snap ring

SOUFFLET COTE BOITE

Diameter (big) : 85 mm

Diameter (little) : 27.8 mm

Inner bearing diameter : 27.8 mm

Length : 80 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 24 mm

Number of splines : 29

Sealing kit	COTE ROUE	T3025
		5005
		5016
	COTE BOITE	6010
		6030
		6011
CV joint	COTE ROUE	JR562
		JR56
		JR60
	COTE BOITE	CBTRIR076030
		CBTRIR13056003
		CBTRIR13056030
Fixation	COTE ROUE	EC005
Tripod joint	COTE BOITE	TRIR1305
Tripod joint	COTE BOITE	TRIR07

Equivalence to manufacturer references

RENAULT : 7700107765
RENAULT : 7700110218
RENAULT : 7700112315
RENAULT : 7701352869
RENAULT : 8200031134
RENAULT : 8200031137
