Catalog

Search by vehicle

Category :

Transmission

Return

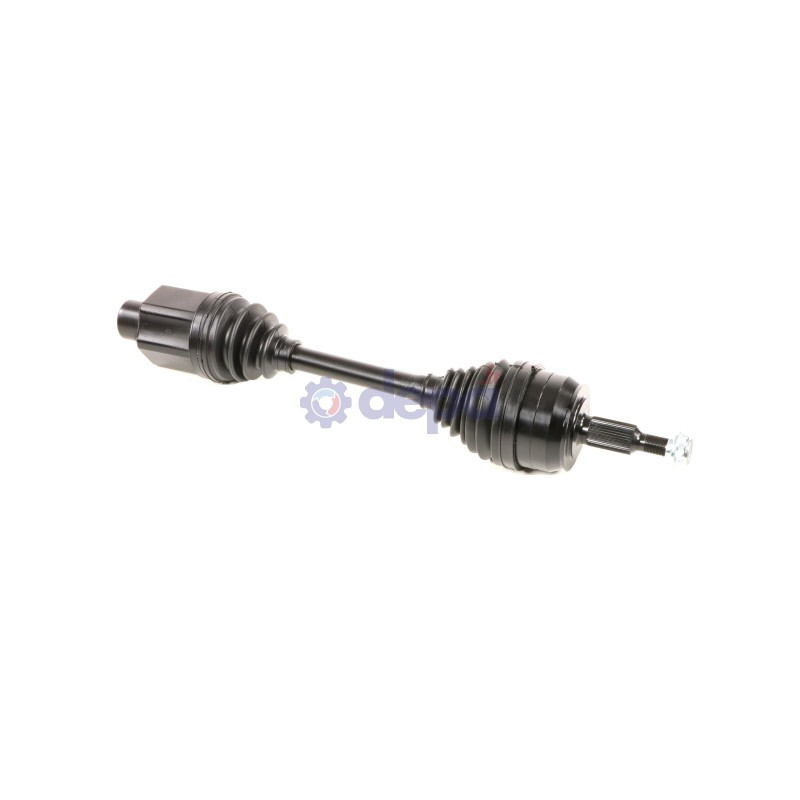

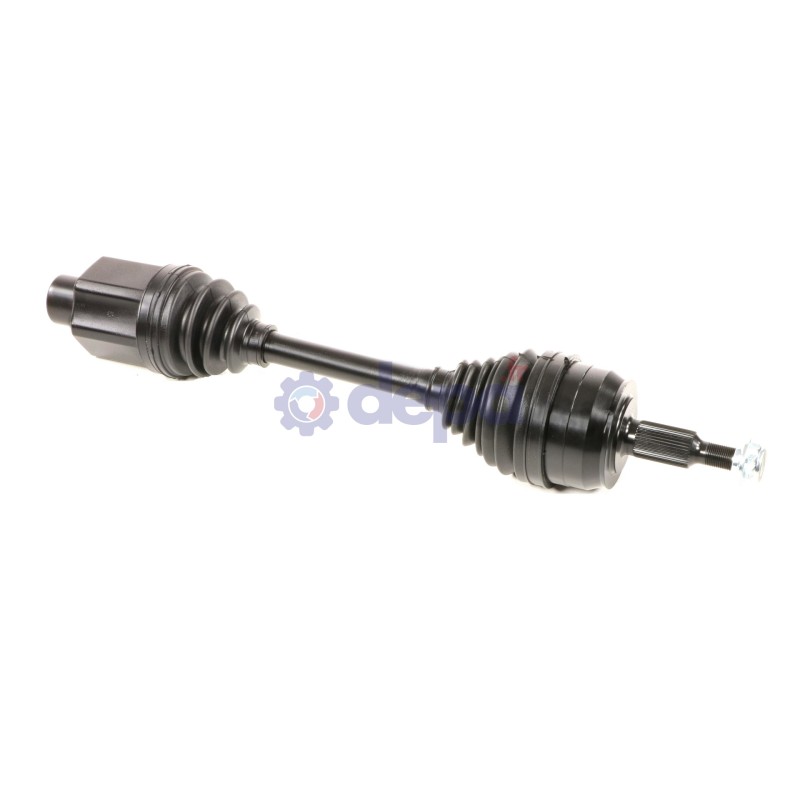

VW TRANSPORTER T5 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE

Name: VW TRANSPORTER T5 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE
Brand: Depa
SKU: 3377360
Price: 334.18 EUR
Availability: OutOfStock

Ref : 3377360

Matching vehicles :

TRANSPORTER 5 - TRANSPORTER 6

Family :TR

Height : 22 mm

Compressed length : 615 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 35 mm

Number of internal splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 31 mm

Housing diameter : 100 mm

Shoulder diameter : 63 mm

Number of external splines : 38

Number of splines on inner race : 30

Observations : Threading length 35mm Ø20mm/Spline length on shoulder 54mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

Sealing kit	COTE ROUE	5101
	COTE ROUE	5036
	COTE BOITE	6082
CV joint	COTE ROUE	JW3320
CV joint	COTE BOITE	CBFW3370GT
Fixation	COTE ROUE	EC031
Tripod joint	COTE BOITE	TRIAL11

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 7E0407272AL
VOLKSWAGEN (SVW) : 7E0407272BG
VOLKSWAGEN (SVW) : 7E0407452EX
VOLKSWAGEN (SVW) : 7E0407452SX
VOLKSWAGEN (SVW) : 7E0407454P
VOLKSWAGEN (SVW) : 7E0407454PX
VOLKSWAGEN (SVW) : 7E07407272AL
VOLKSWAGEN (SVW) : 7E07407452EX
VOLKSWAGEN (SVW) : 7E07407452SX
VOLKSWAGEN (SVW) : 7LA407272J
