Catalog

Search by vehicle

Category :

Transmission

Return

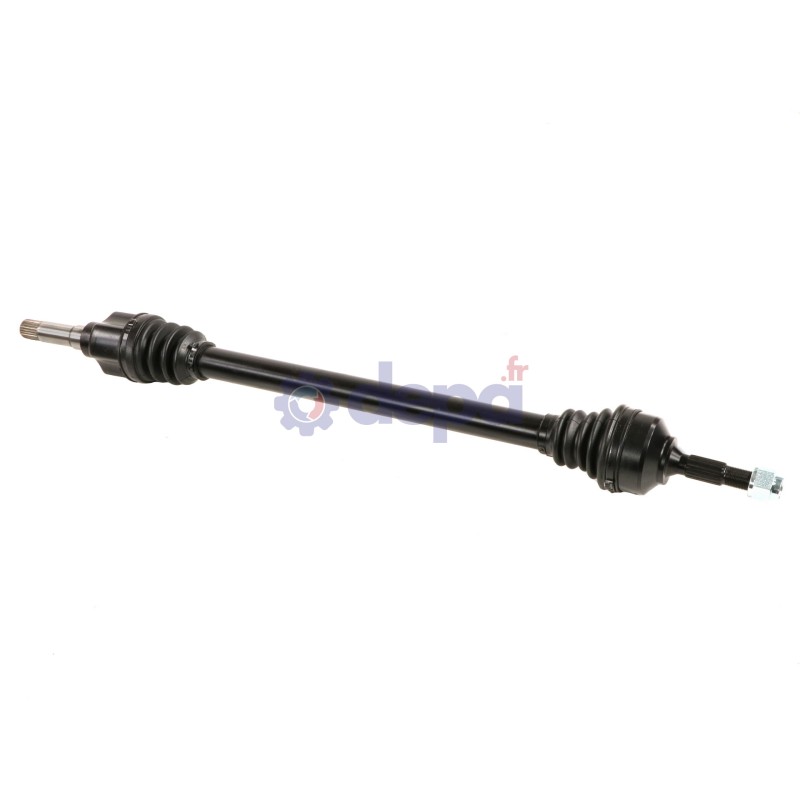

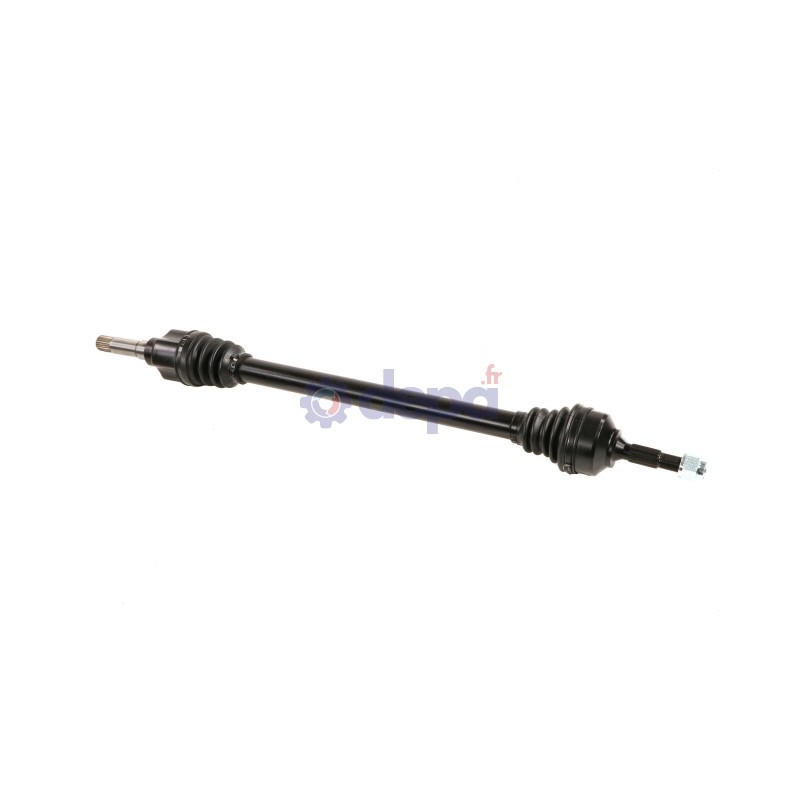

CITROEN C3/PEUGEOT 1007 RIGHT-SIDE

Name: CITROEN C3/PEUGEOT 1007 RIGHT-SIDE
Brand: Depa
SKU: 3060400
Price: 154.2 EUR
Availability: InStock

Ref : 3060400

Matching vehicles :

1007 - C3 PLURIEL - C3 - C2

Family :TR

Height : 28.5 mm

Non-compressed length : 875 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : To strike

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 24 mm

Housing diameter : 64 mm

Length of the gearbox output without seal seat : 75 mm

Number of external splines : 22

Number of splines on inner race : 21

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 23 mm

Diamètre du bol : 75 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 21

Nombre de cannelures sur la noix : 21

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 62 mm

Diameter (little) : 27 mm

Beads thickness : 12.5 mm

Length : 88 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 73 mm

Diamètre (petit) : 19 mm

Longueur : 82 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30.5 mm

Height : 24 mm

Number of splines : 21

Sealing kit	COTE ROUE	T3065
		5004
		5011
	COTE BOITE	6109
CV joint	COTE ROUE	JC05
	COTE ROUE	JP30
	COTE BOITE	CBMC04DT
	COTE BOITE	CBMC05DT
Fixation	COTE ROUE	EC002
Tripod joint	COTE BOITE	TRIP06
Tripod joint	COTE BOITE	TRIC05

Equivalence to manufacturer references

CITROËN : 3273EQ
CITROËN : 3273ER
CITROËN : 3273HH
CITROËN : 3273HJ
CITROËN : 3273SG
CITROËN : 9638016880
CITROËN : 9638017580
CITROËN : 9647107080
CITROËN : 9647107680
PEUGEOT : 3273SG
