Category :

Transmission

Return

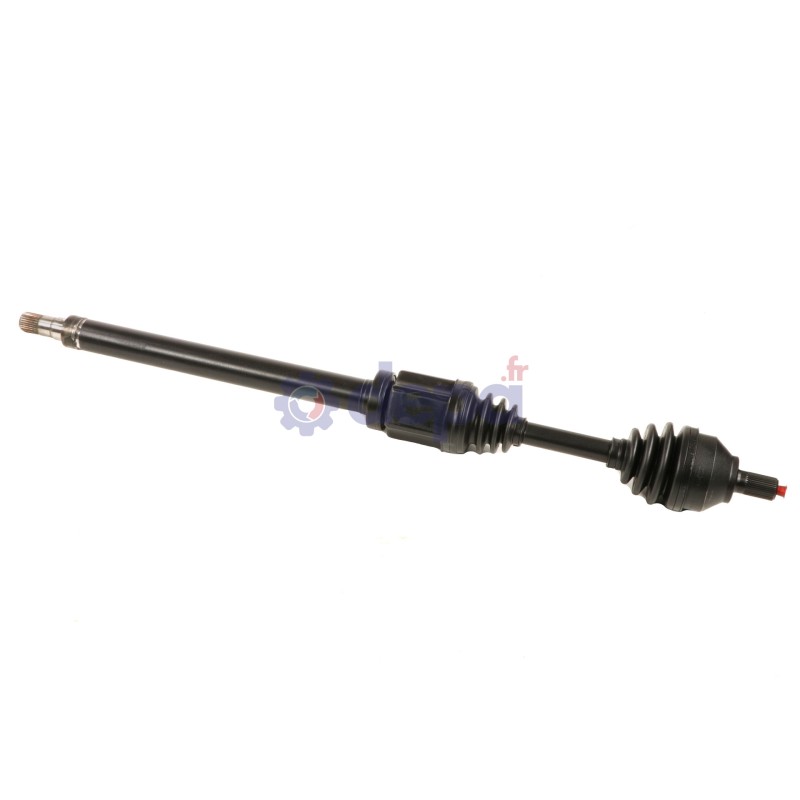

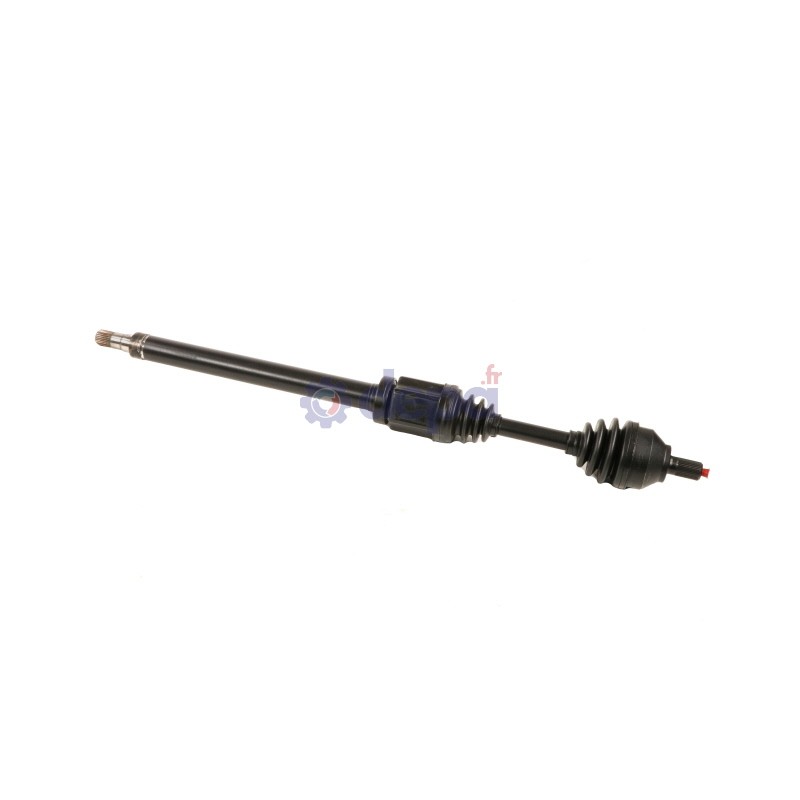

C30/C70 II/S40 II/V50 AUTO D

Ref : 3408560

Matching vehicles :

S40 II - C30 - V50 - C70 II

Family :TR

Length of the shaft (including bearing unit)  : 515 mm

Compressed length  : 945 mm

ABS on the vehicle  : Yes

COTE BOITE

Length of the shaft (including bearing unit)  : 515 mm

Length of the gearbox output without seal seat  : 50 mm

Diamètre du bol  : 77 mm

Diamètre des cannelures extérieures  : 26.5 mm

Seal seat diameter  : 34 mm

Nombre de cannelures extérieures  : 26

COTE ROUE

Outer spline diameter  : 27.5 mm

Housing diameter  : 91 mm

Number of external splines  : 36

Observations  : filtage inter 8 x 125

Type and position (snap ring/circlip)  : Centered snap ring

Shoulder diameter  : 56 mm

Number of splines on inner race  : 26

Sealing kit COTE ROUE 5011 CITROEN/PEUGEOT
5020 FIAT
COTE BOITE 6085 AUDI
FIXATION COTE ROUE VI001
CV joint COTE ROUE JFO27 JOINT HOMOCINETIQUE
COTE BOITE PALCBMV5660DT
TRIAXE COTE BOITE TRIAL70
ROULEMENT COTE BOITE RLT009

Equivalence to manufacturer references

  • VOLVO : 36000451

  • VOLVO : 36000560

  • VOLVO : 36000241
