Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

SUZUKI : 4410153R21000

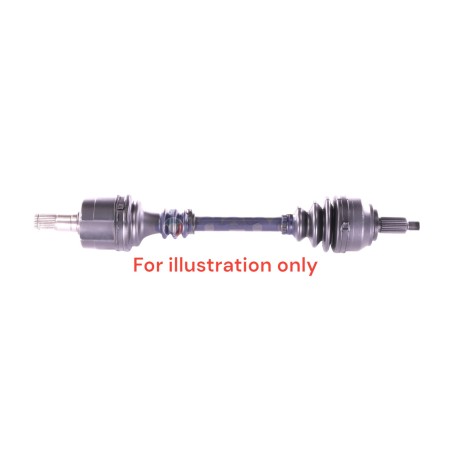

SUZUKI SWIFT V RIGHT-SIDE

Name: SUZUKI SWIFT V RIGHT-SIDE
Brand: Depa
SKU: 3434300
Price: 236.1 EUR
Availability: OutOfStock

Ref : 3434300

Matching vehicles :

SWIFT V

Family :TR

Collapsed length : 915 mm

ABS on the vehicle : Yes

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 38 mm

Outer spline diameter : 27 mm

Housing diameter : 64 mm

Length of the gearbox output without seal seat : 58 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25.8 mm

Diamètre du bol : 79.8 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 29

Observations : Spline length on shoulder 50mm/Threading length 30mm/6 balls Ø15.9mm/Cage Ø60.20mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33.2 mm

Height : 23 mm

Number of splines : 29

CV joint	COTE ROUE	JS43
CV joint	COTE BOITE	CBMS43DT
Sealing kit	COTE ROUE	5016
Sealing kit	COTE BOITE	6192
Tripod joint	COTE BOITE	TRIC38
Tripod joint	COTE BOITE	TRIC38
