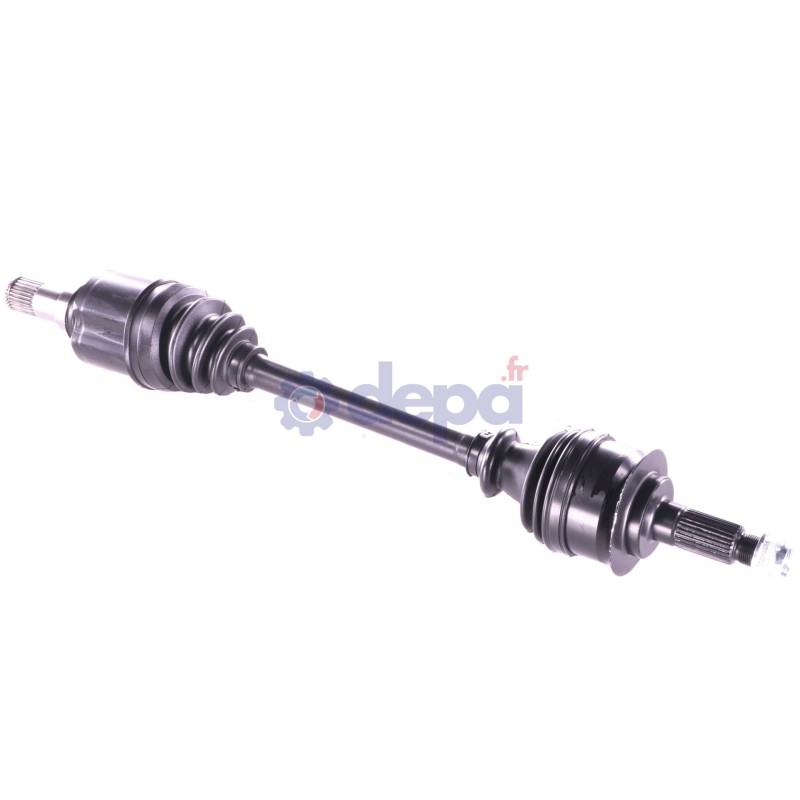

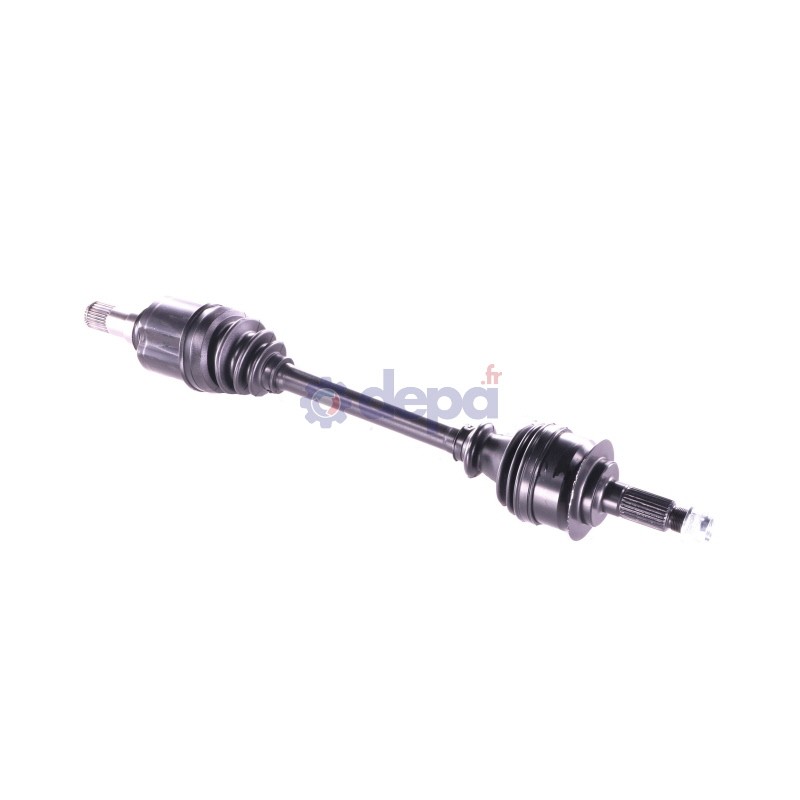

SUZUKI SX4 S-CROSS II / VITARA II LEFT-SIDE

Name: SUZUKI SX4 S-CROSS II / VITARA II LEFT-SIDE
Brand: Depa
SKU: 3438350
Price: 259.3 EUR
Availability: InStock

Ref : 3438350

Matching vehicles :

SX4 S-CROSS II - VITARA II - SX4 S-CROSS III

Family :TR

Height : 20 mm

Compressed length : 650 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 38 mm

Outer spline diameter : 29 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29 mm

Housing diameter : 84.5 mm

Shoulder diameter : 58 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 24

Observations : 6 balls

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39.2 mm

Outer diameter : 66 mm

Height : 25 mm

Number of splines : 24

CV joint	COTE ROUE	JS81
CV joint	COTE BOITE	CBMS83GT
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6082
Fixation	COTE ROUE	EC020
Fixation		EC020

Equivalence to manufacturer references

SUZUKI : 44102-54P51-000
