Catalog

Search by vehicle

Category :

Transmission

Return

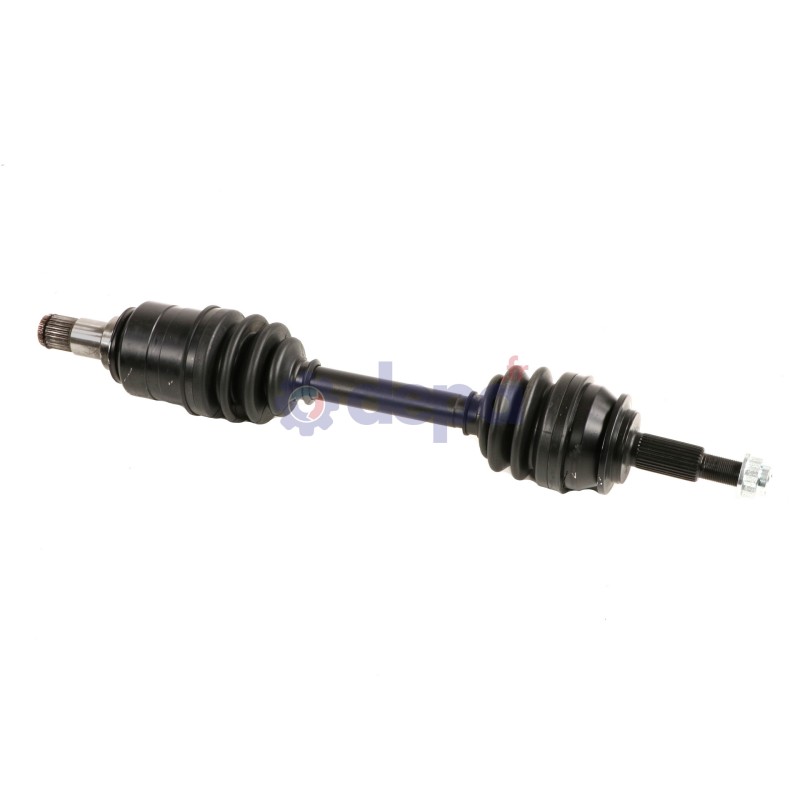

TOYOTA VERSO LEFT-SIDE

Name: TOYOTA VERSO LEFT-SIDE
Brand: Depa
SKU: 3485850
Price: 258.78 EUR
Availability: InStock

Ref : 3485850

Matching vehicles :

VERSO

Family :TR

Height : 20 mm

Compressed length : 615 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 50 mm

Outer spline diameter : 24 mm

Housing diameter : 76 mm

Length of the gearbox output without seal seat : 68 mm

Number of external splines : 31

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30 mm

Diamètre du bol : 90 mm

Shoulder diameter : 61 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 25

Observations : Threading length 40mm Ø22mm/Spline length on shoulder 58mm

Type and position (snap ring/circlip) : Centered snap ring

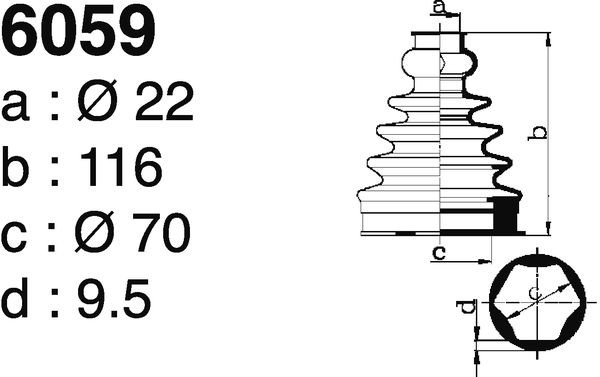

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 22 mm

Beads thickness : 9.5 mm

Length : 116 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 27.5 mm

Number of splines : 27

Sealing kit	COTE ROUE	5020
	COTE BOITE	6085
	COTE BOITE	6059
CV joint	COTE ROUE	JT58
CV joint	COTE BOITE	CBMT67GT
Fixation	COTE ROUE	EC020

Equivalence to manufacturer references

TOYOTA : 434200F080
TOYOTA : 434200F081
