Catalog

Search by vehicle

Category :

Transmission

Return

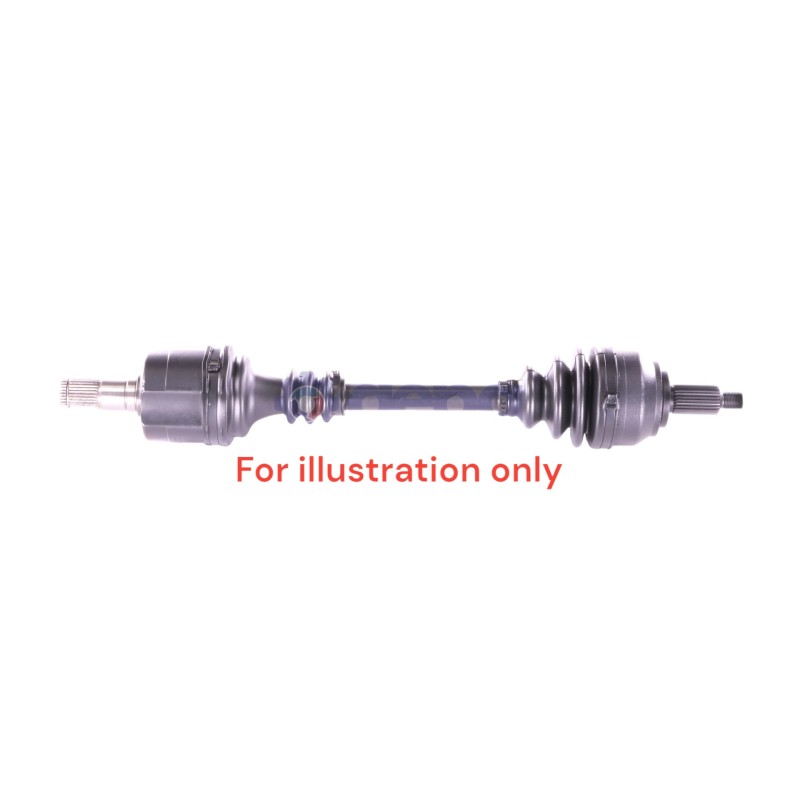

MITSUBISHI L-200 IV FRONT RIGHT-SIDE

Name: MITSUBISHI L-200 IV FRONT RIGHT-SIDE
Brand: Depa
SKU: 3527400
Price: 315.51 EUR
Availability: OutOfStock

Ref : 3527400

Matching vehicles :

L-200 IV

Family :TR

Height : 21 mm

Compressed length : 595 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

COURONNE ABS COTE ROUE

Outer diameter : 96 mm

Inner diameter : 84 mm

Width : 8 mm

Number of teeth : 47

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 34.9 mm

Outer spline diameter : 29 mm

Housing diameter : 86 mm

Length of the gearbox output without seal seat : 71 mm

Number of external splines : 28

Number of splines on inner race : 33

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31 mm

Diamètre du bol : 86 mm

Shoulder diameter : 69 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 35

Observations : Threading length 30mm/Spline length on shoulder 59mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 21 mm

Length : 84 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

Fixation	COTE ROUE	EC042
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6056
CV joint	COTE ROUE	JMI74
CV joint	COTE BOITE	CBMMI74D
ABS ring		COU136

Equivalence to manufacturer references

MITSUBISHI : 3815A580
MITSUBISHI : 3815A582
