Catalog

Search by vehicle

Category :

Transmission

Return

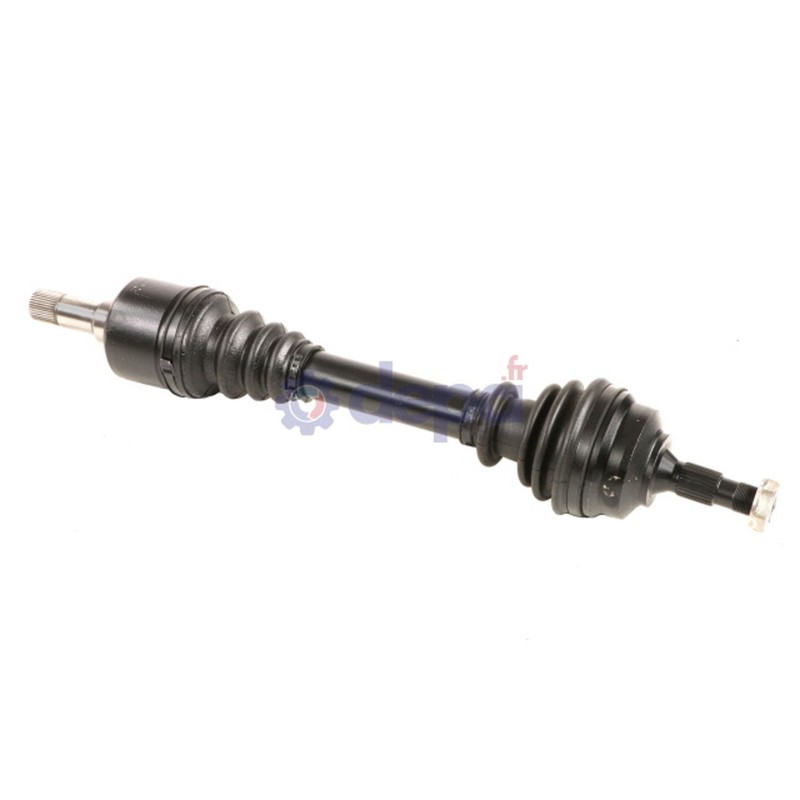

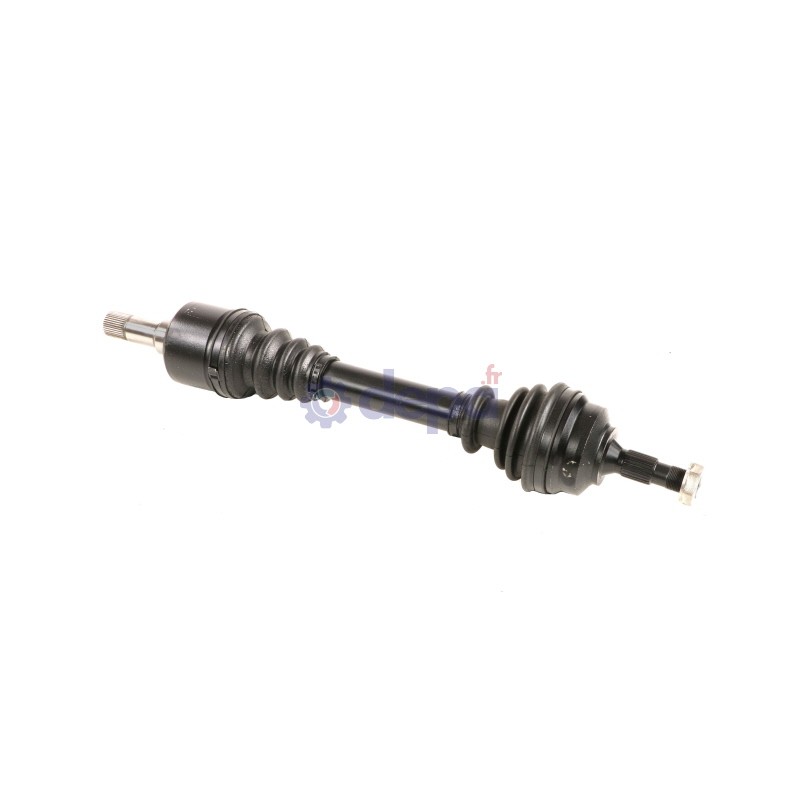

CITROEN XANTIA WITH ABS LEFT-SIDE

Name: CITROEN XANTIA WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3065550
Price: 180.49 EUR
Availability: OutOfStock

Ref : 3065550

Matching vehicles :

XANTIA

Family :TR

Height : 13.5 mm

Non-compressed length : 655 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

COURONNE ABS COTE ROUE

Outer diameter : 99 mm

Inner diameter : 90 mm

Width : 10 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 89 mm

Number of external splines : 37

Number of splines on inner race : 39

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 100 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Nombre de cannelures sur la noix : 39

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 38 mm

Length : 95 mm

Number of grooves : 2

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 96 mm

Diamètre (petit) : 36 mm

Longueur : 96 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	T3070
		T3061
		T3005
		5102
	COTE BOITE	T3078
		6056
		6035
		6057
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JP9348
CV joint	COTE BOITE	CBMC44G
Spring	COTE BOITE	REC44
Tripod joint	COTE BOITE	TRIC44
ABS ring		COU017
ABS ring		COU018

Equivalence to manufacturer references

CITROËN : 327301
CITROËN : 3273Z9
