Catalog

Search by vehicle

Category :

Transmission

Return

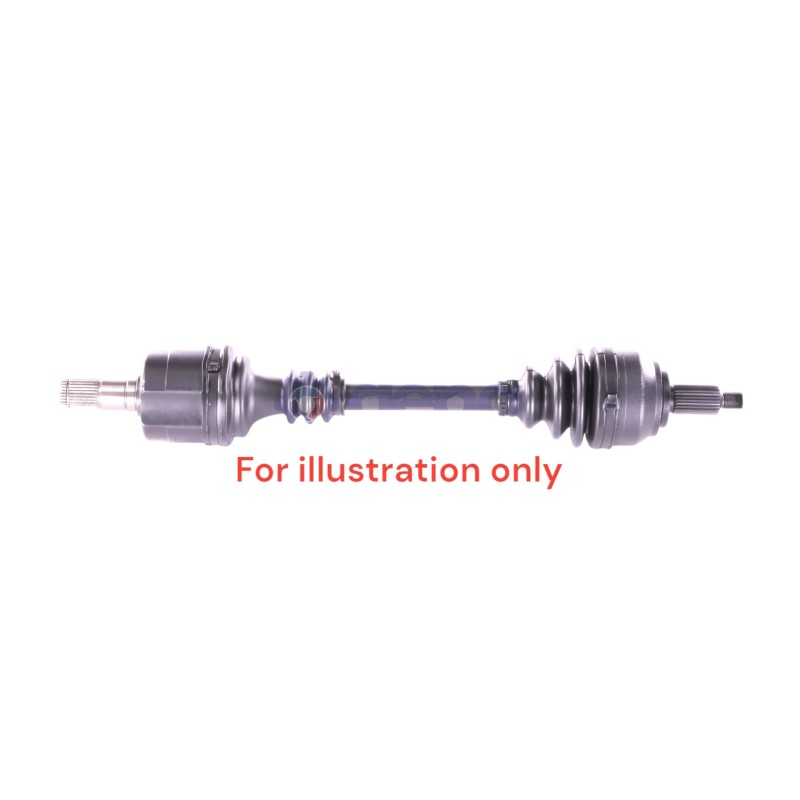

CITROEN AUTOMATIC TRANSMISSION WITH ABS RIGHT-SIDE

Name: CITROEN AUTOMATIC TRANSMISSION WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3065748
Price: 180.49 EUR
Availability: OutOfStock

Ref : 3065748

Matching vehicles :

XANTIA

Family :TR

Height : 13.5 mm

Compressed length : 830 mm

Length of the shaft (including bearing unit) : 252 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

COURONNE ABS COTE ROUE

Outer diameter : 99 mm

Inner diameter : 90 mm

Width : 10 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 27 mm

Housing diameter : 86 mm

Shoulder diameter : 60 mm

Number of external splines : 25

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

JONC COTE ROUE

Diamètre extérieur : 27 mm

Thickness : 1.5 mm

SOUFFLET COTE ROUE

Diameter (big) : 74 mm

Diameter (little) : 28 mm

Length : 115 mm

Number of grooves : 1

Type of material : Neoprene

Sealing kit	COTE ROUE	T3061
		T3005
		5004
		5053
	COTE BOITE	6065
	COTE BOITE	6034
CV joint	COTE ROUE	JP1048
Fixation	COTE ROUE	EC008
ABS ring		COU018
		COU019
		COU017
		COU089
Bearing		RLT017

Equivalence to manufacturer references

CITROËN : 32732H
CITROËN : 32734R
