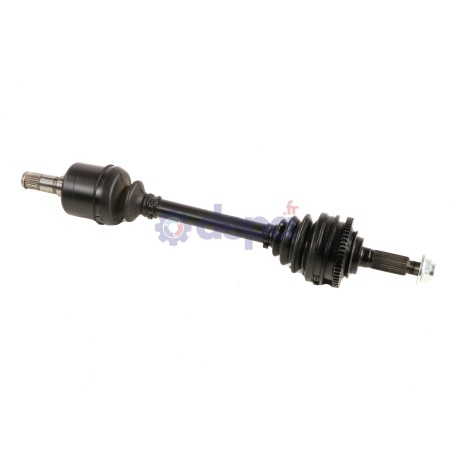

KIA CARNIVAL LEFT-SIDE

Name: KIA CARNIVAL LEFT-SIDE
Brand: Depa
SKU: 3581550
Price: 281.22 EUR
Availability: OutOfStock

Ref : 3581550

Matching vehicles :

CARNIVAL I - CARNIVAL II

Family :TR

Collapsed length : 650 mm

ABS on the vehicle : Yes

COURONNE ABS COTE ROUE

Outer diameter : 108 mm

Inner diameter : 90 mm

Width : 10 mm

Number of teeth : 54

FIXATION COTE ROUE

Height : 20 mm

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 29 mm

Housing diameter : 93.7 mm

Shoulder diameter : 60 mm

Number of external splines : 28

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 21 mm

Length : 84 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	5020
	COTE BOITE	6165
	COTE BOITE	6056
CV joint	COTE ROUE	JK15
Fixation	COTE ROUE	EC020
ABS ring		COU154
