Catalog

Search by vehicle

Category :

Transmission

Return

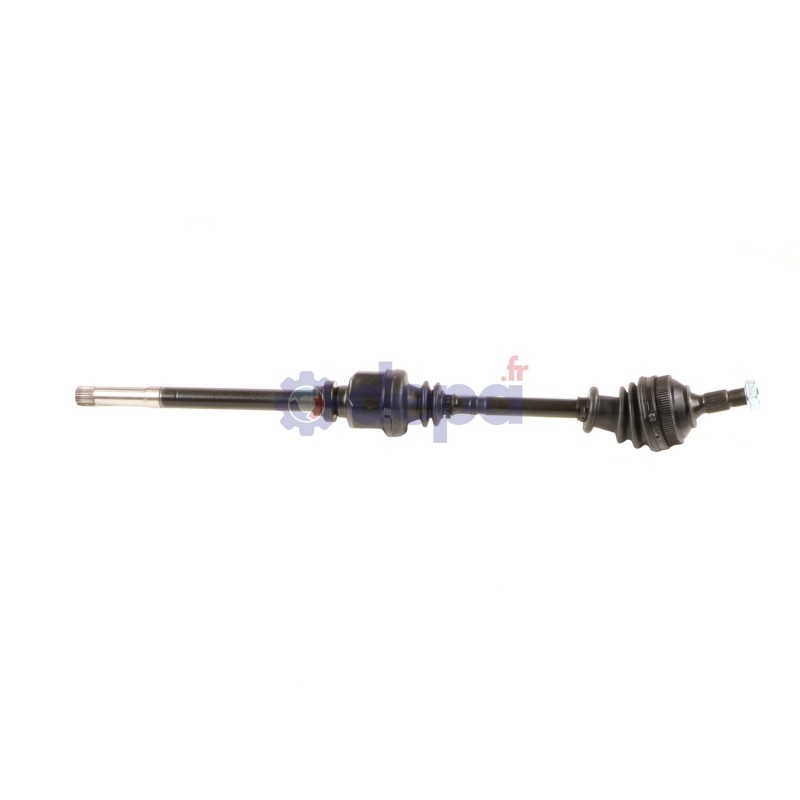

CITROEN BX 16 WITH ABS RIGHT-SIDE

Name: CITROEN BX 16 WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3067900
Price: 128.3 EUR
Availability: InStock

Ref : 3067900

Matching vehicles :

Family :TR

Height : 13.5 mm

Compressed length : 865 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

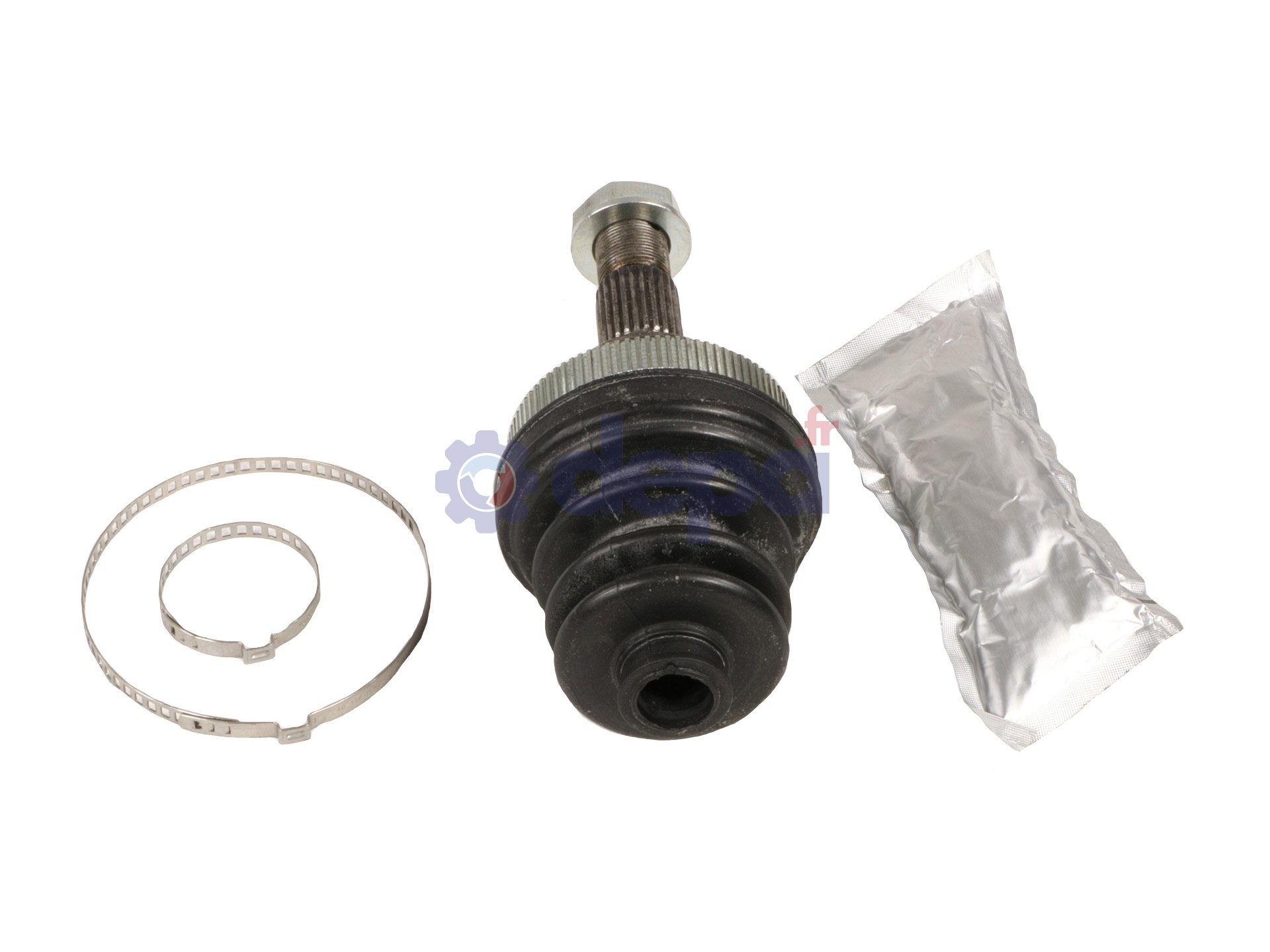

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26 mm

Housing diameter : 75 mm

Length of the gearbox output without seal seat : 67 mm

Number of external splines : 24

Number of splines on inner race : 24

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 90 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 25

Nombre de cannelures sur la noix : 23

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 22 mm

Length : 100 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 23 mm

Longueur : 101 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 29

Sealing kit	COTE ROUE	5053
		T3005
		5014
	COTE BOITE	6065
		6034
		6031
CV joint	COTE ROUE	JP85
	COTE ROUE	JP851
	COTE BOITE	CBMC99G
Fixation	COTE ROUE	EC008
Bearing	COTE BOITE	RLT017
Tripod joint	COTE BOITE	TRIC99

Equivalence to manufacturer references

CITROËN : 3273K7
CITROËN : 95624473
