Catalog

Search by vehicle

Category :

Transmission

Return

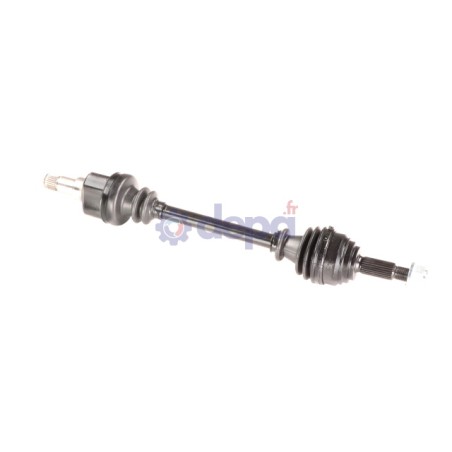

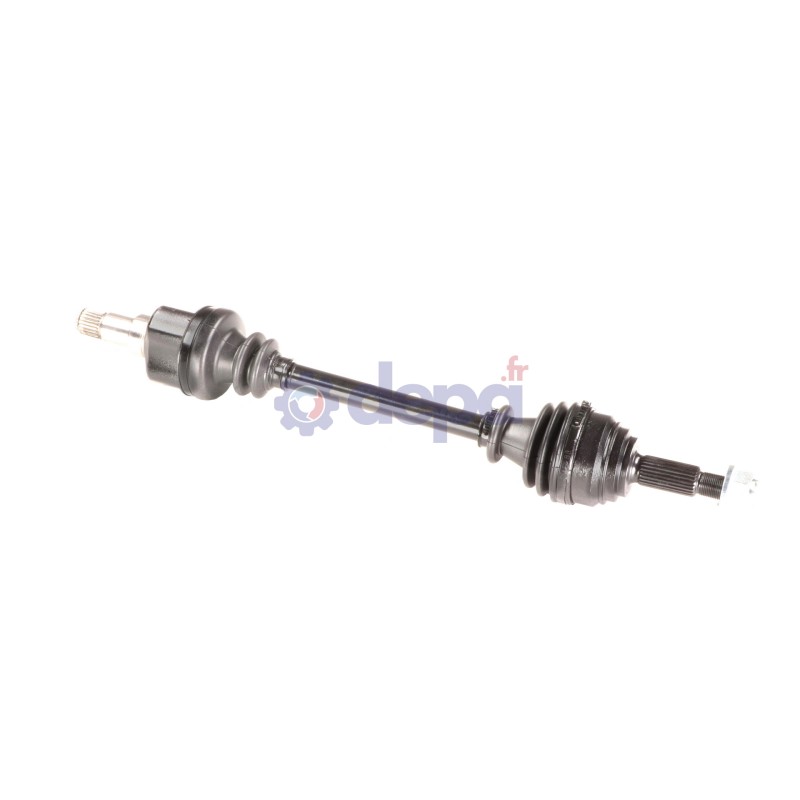

FORD FIESTA VI/B-MAX LEFT-SIDE

Name: FORD FIESTA VI/B-MAX LEFT-SIDE
Brand: Depa
SKU: 3656102
Price: 242.29 EUR
Availability: InStock

Ref : 3656102

Matching vehicles :

FIESTA VI - B-MAX

Family :TR

Height : 26 mm

Compressed length : 620 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 25 mm

Housing diameter : 75.5 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 23

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 80 mm

Shoulder diameter : 53 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 24

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 19 mm

Beads thickness : 15.5 mm

Length : 91 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 25 mm

Number of splines : 22

Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6033
CV joint	COTE ROUE	JFO32
Fixation	COTE ROUE	EC019
Tripod joint	COTE BOITE	TRIP01

Equivalence to manufacturer references

FORD : 1789458
FORD : 1822709
FORD : 1840192
FORD : CV173B437BC
FORD : CV173B437BD
FORD : RMCV173B437B2D
