Catalog

Search by vehicle

Category :

Transmission

Return

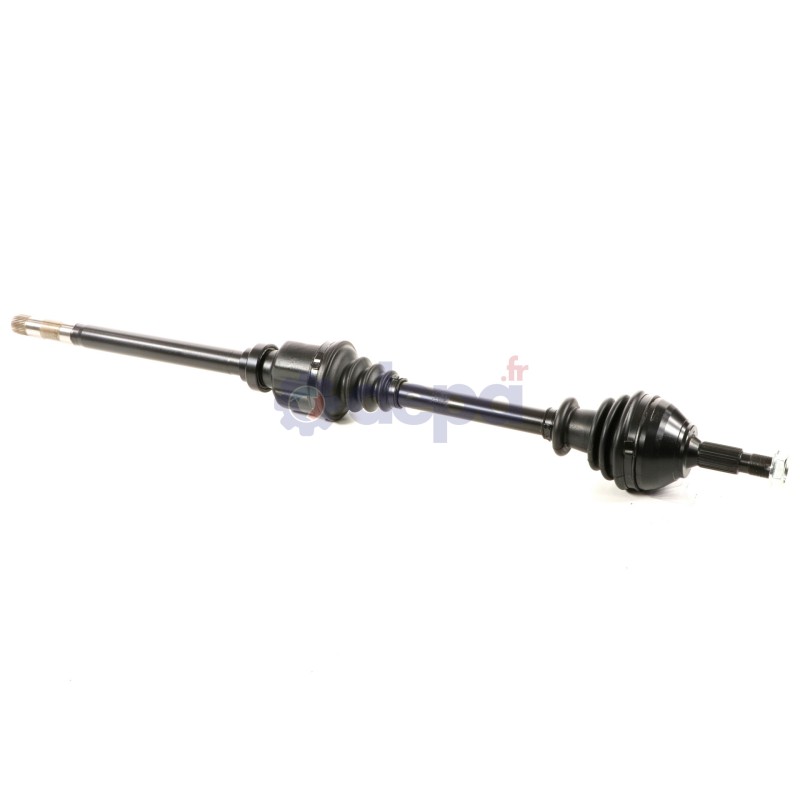

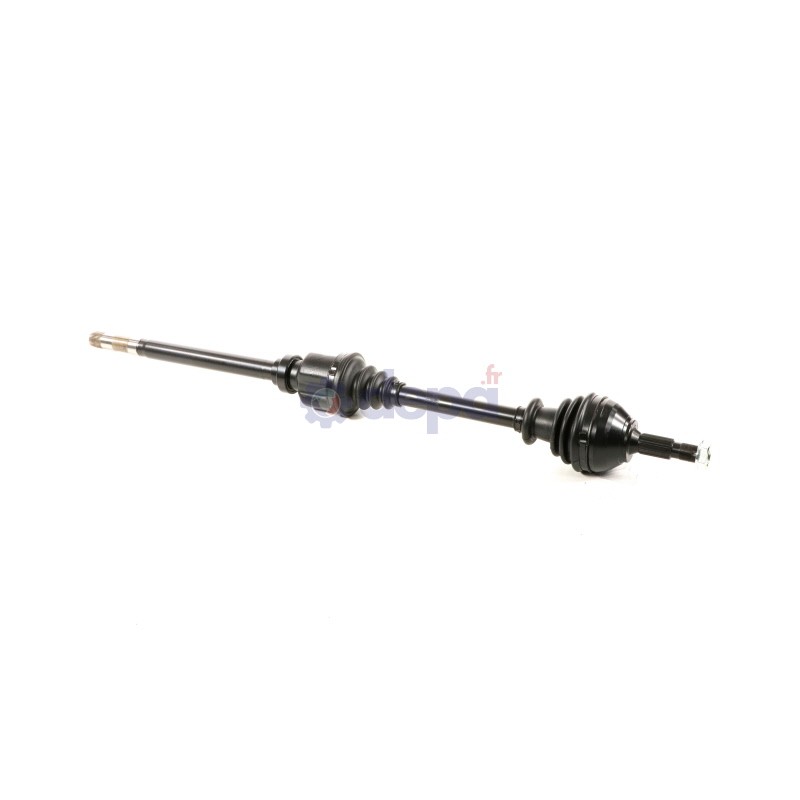

CITROEN JUMPY III D

Name: CITROEN JUMPY III D
Brand: Depa
SKU: 3071100
Price: 177.01 EUR
Availability: InStock

Ref : 3071100

Matching vehicles :

JUMPY 3 - VIVARO C - EXPERT 3 - SPACE TOURER

Family :TR

Non-compressed length : mm

Compressed length : 1010 mm

Length of the shaft (including bearing unit) : 400 mm

ABS on the vehicle : Yes

COTE BOITE

Outer spline diameter : 28 mm

Length of the gearbox output without seal seat : 86 mm

Housing diameter : 79 mm

Number of external splines : 37

Seal seat diameter : 32 mm

Length of the shaft (including bearing unit) : 400 mm

COTE ROUE

Number of splines on inner race : 39

Diamètre des cannelures extérieures : 28.5 mm

Nombre de cannelures extérieures : 28

Shoulder diameter : 59 mm

Type and position (snap ring/circlip) : Internal snap ring

Diamètre du bol : 96 mm

Sealing kit	COTE ROUE	T3071
		5020
		5024
	COTE BOITE	6115
		6115
		6115
FIXATION	COTE ROUE	EC008
CV joint	COTE ROUE	JC82
		JC82
		JP58
	COTE BOITE	PALCBMC82DT
		PALCBMC82DT
		PALCBMC82DT
ROULEMENT	COTE BOITE	RLT005
		RLT005
		RLT005
TRIAXE	COTE BOITE	TRIC44
		TRIC44
		TRIC44

Equivalence to manufacturer references

CITROËN : 9806153180
CITROËN : 1614919780
