Catalog

Search by vehicle

Category :

Transmission

Return

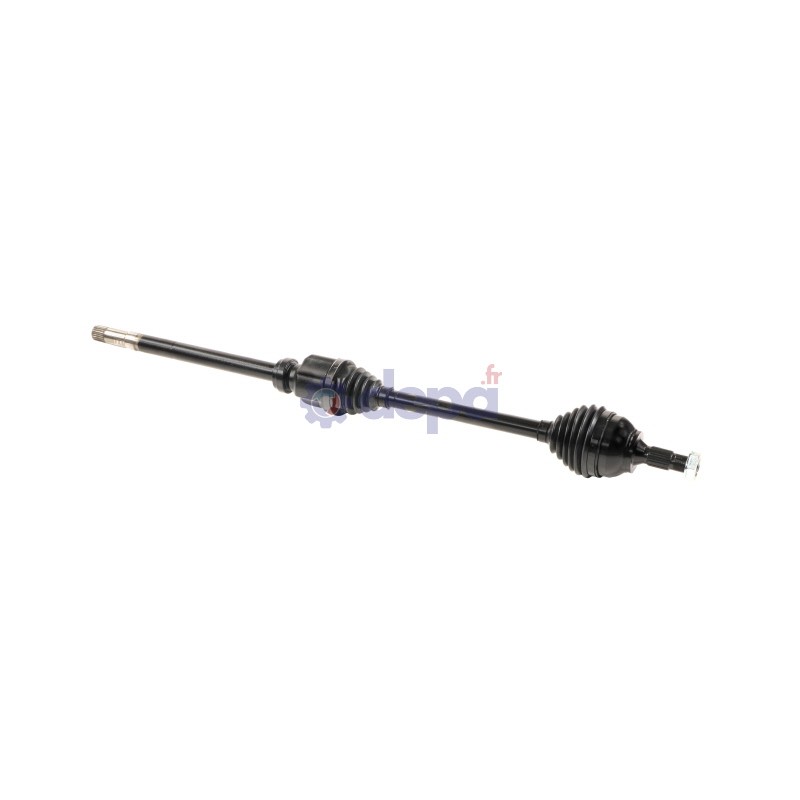

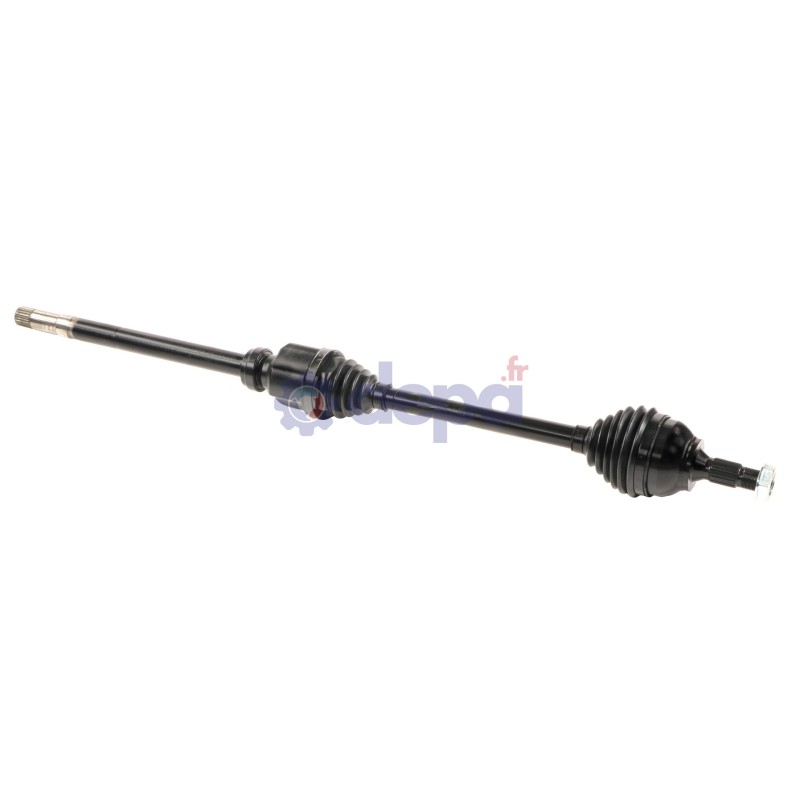

DS DS4 D

Name: DS DS4 D
Brand: Depa
SKU: 3071600
Price: 177.01 EUR
Availability: InStock

Ref : 3071600

Matching vehicles :

DS4 - C4 II

Family :TR

Compressed length : 950 mm

Length of the shaft (including bearing unit) : 365 mm

ABS on the vehicle : Yes

COTE ROUE

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

Nombre de cannelures extérieures : 25

Diamètre du bol : 86 mm

Diamètre des cannelures extérieures : 27 mm

Shoulder diameter : 60 mm

COTE BOITE

Number of external splines : 24

Seal seat diameter : 30 mm

Outer spline diameter : 26 mm

Housing diameter : 71 mm

Length of the shaft (including bearing unit) : 365 mm

Length of the gearbox output without seal seat : 64 mm

Sealing kit	COTE ROUE	T3074
	COTE ROUE	5004
	COTE BOITE	6121
	COTE BOITE	6106
CV joint	COTE ROUE	JP10
CV joint	COTE BOITE	PALCBMP47DT
FIXATION	COTE ROUE	EC008
ROULEMENT	COTE BOITE	RLT017
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

CITROËN : 1610574780
DS : 9808258580
DS : 9809258580
CITROËN : 9800057380
DS : 1612196280
