Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

DS : 1613687980
DS : 9811805880

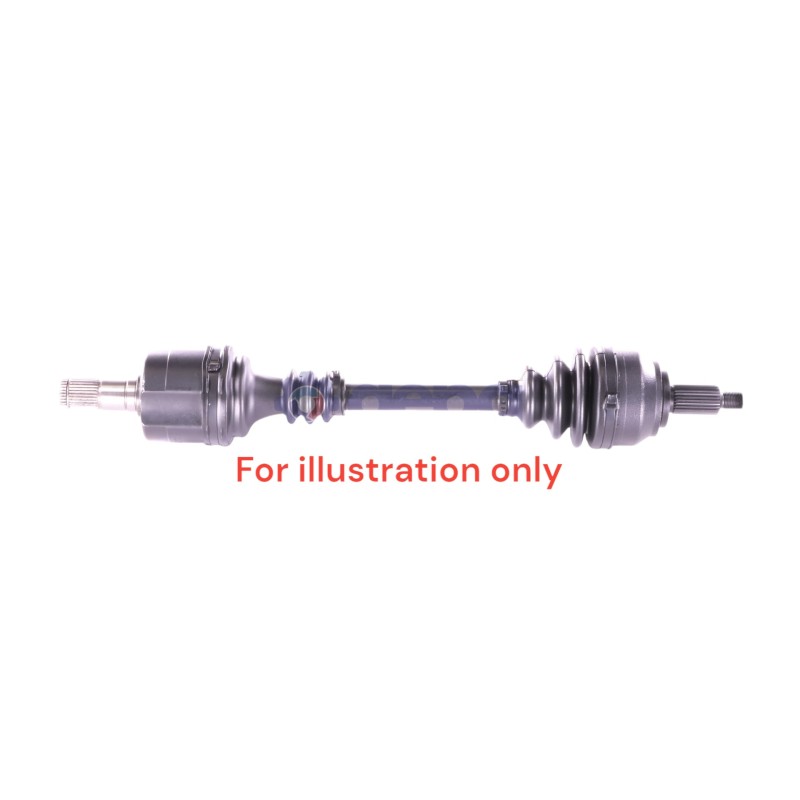

DS DS3

Name: DS DS3
Brand: Depa
SKU: 3071620
Price: 177.01 EUR
Availability: OutOfStock

Ref : 3071620

Matching vehicles :

2008 - DS3 - C4 CACTUS

Family :TR

Collapsed length : 880 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 13.5 mm

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 26 mm

Housing diameter : 71 mm

Length of the shaft (including bearing unit) : 308 mm

Length of the gearbox output without seal seat : 64 mm

Number of external splines : 24

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 86 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

JONC COTE ROUE

Outer diameter : 27 mm

Thickness : 1.5 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 26 mm

Beads thickness : 13 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

Sealing kit	COTE ROUE	T3074
	COTE ROUE	5010
	COTE BOITE	6121
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JP10
Tripod joint	COTE BOITE	TRIC43
