Catalog

Search by vehicle

Category :

Transmission

Return

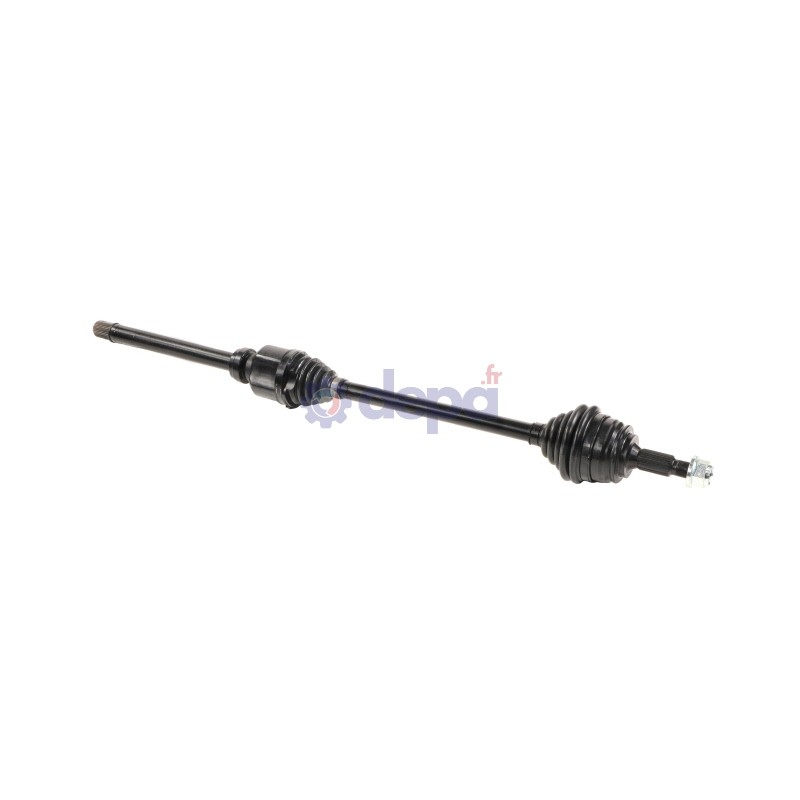

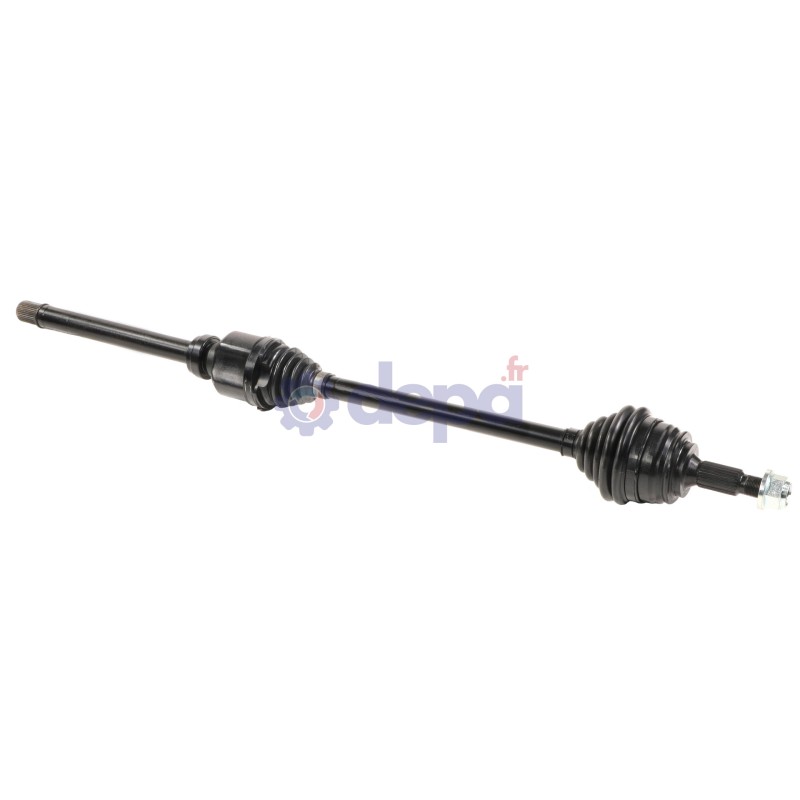

DS DS7 CROSSBACK AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: DS DS7 CROSSBACK AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3072260
Price: 188.82 EUR
Availability: OutOfStock

Ref : 3072260

Matching vehicles :

DS7 CROSSBACK

Family :TR

Height : 26 mm

Compressed length : 950 mm

Length of the shaft (including bearing unit) : 290 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28.5 mm

Housing diameter : 71 mm

Length of the shaft (including bearing unit) : 290 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 86 mm

Shoulder diameter : 58 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 26 mm

Beads thickness : 13 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

Sealing kit	COTE ROUE	T3074
	COTE ROUE	5010
	COTE BOITE	6121
CV joint	COTE ROUE	JP80
CV joint	COTE BOITE	PALCBMP8660DT
Fixation	COTE ROUE	EC019
Tripod joint	COTE BOITE	TRIC43
Bearing	COTE BOITE	RLT017

Equivalence to manufacturer references

DS : 1631896680
DS : 9812220580
