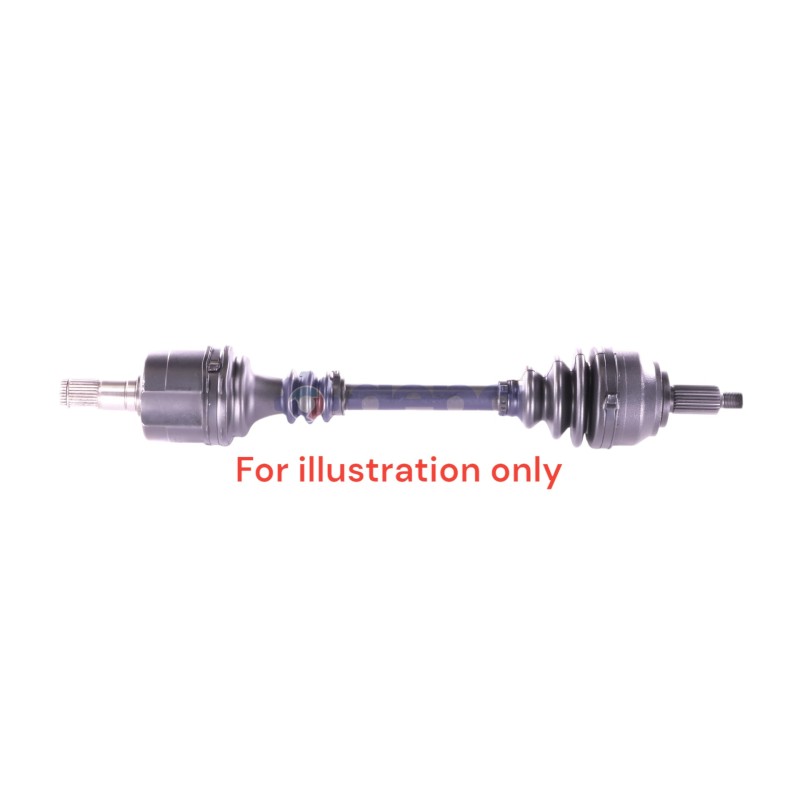

CITROEN C-ELYSEE RIGHT-SIDE

Name: CITROEN C-ELYSEE RIGHT-SIDE
Brand: Depa
SKU: 3072900
Price: 168.97 EUR
Availability: OutOfStock

Ref : 3072900

Matching vehicles :

C-ELYSEE

Family :TR

Compressed length : 890 mm

ABS on the vehicle : Yes

COTE ROUE

Shoulder diameter : 48 mm

Housing diameter : 86 mm

Outer spline diameter : 23 mm

Nombre de cannelures extérieures : 21

Observations : Conical shoulder

Type and position (snap ring/circlip) : Internal snap ring

Number of splines on inner race : 34

COTE BOITE

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 71 mm

Number of external splines : 24

Length of the gearbox output without seal seat : 97 mm

Seal seat diameter : 29.95 mm

Length of the shaft (including bearing unit) : 290 mm

Sealing kit	COTE ROUE	T3061
		5094
		5004
		5010
	COTE BOITE	6106
	COTE BOITE	6121
CV joint	COTE ROUE	JC86
CV joint	COTE BOITE	PALCBMP33DT
FIXATION	COTE ROUE	EC002
ROULEMENT	COTE BOITE	RLT017
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

CITROËN : 9671573280
CITROËN : 1608420280
