Catalog

Search by vehicle

Category :

Transmission

Return

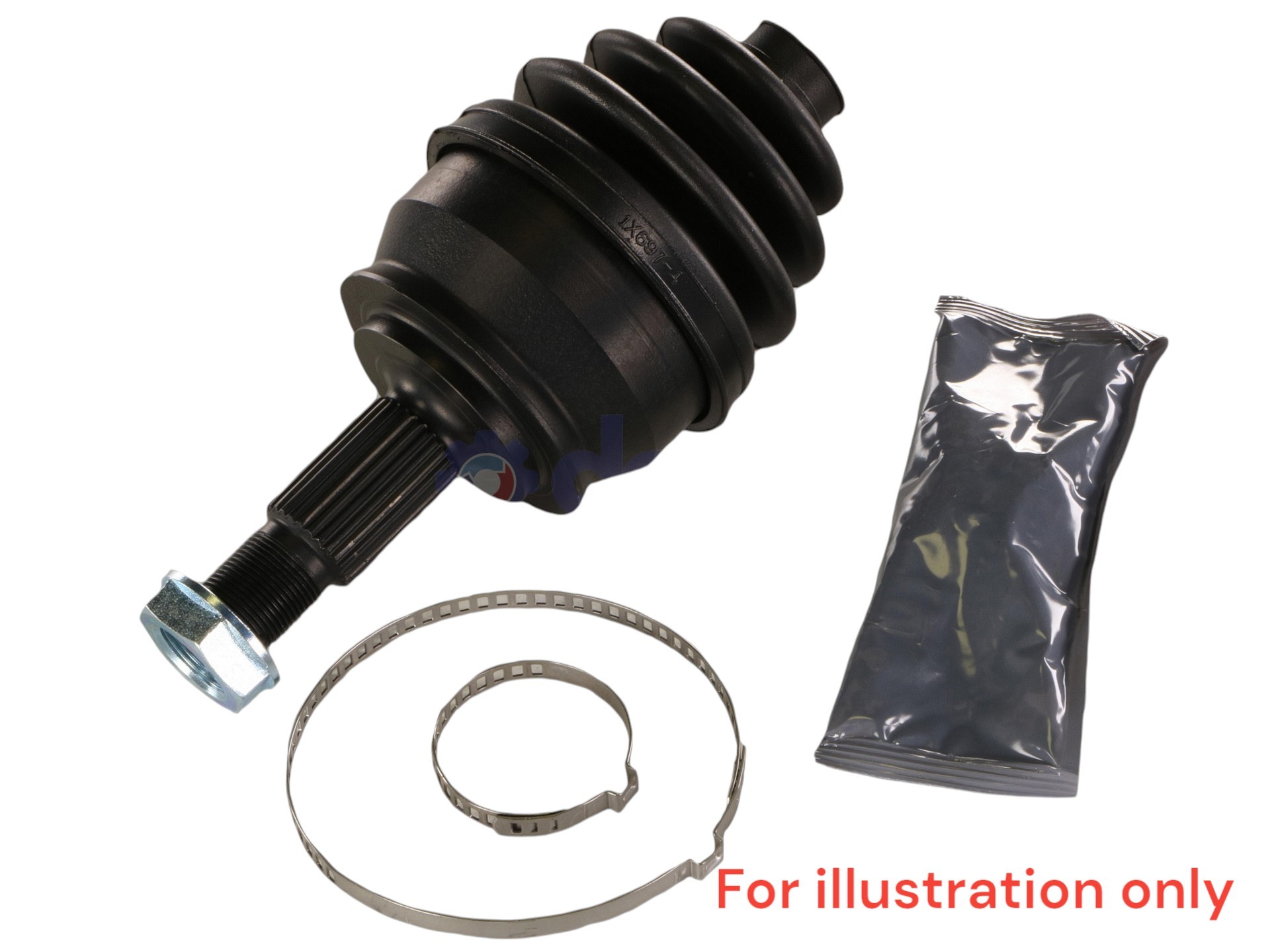

CHEVROLET ORLANDO LEFT-SIDE

Name: CHEVROLET ORLANDO LEFT-SIDE
Brand: Depa
SKU: 3710450
Price: 263.81 EUR
Availability: OutOfStock

Ref : 3710450

Matching vehicles :

ORLANDO

Family :TR

Height : 28 mm

Compressed length : 545 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 27 mm

Housing diameter : 74.5 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 34

Number of splines on inner race : 31

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32.5 mm

Diamètre du bol : 86 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 31

Observations : Threading length 35mm Ø24mm/Spline length on shoulder 58mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 23 mm

Beads thickness : 11 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 44 mm

Outer diameter : 50.5 mm

Height : 20 mm

Number of splines : 31

Fixation	COTE ROUE	EC012
CV joint	COTE ROUE	JCHE0420
CV joint	COTE BOITE	CBMCHE0420T
Sealing kit	COTE ROUE	5010
Sealing kit	COTE BOITE	6084

Equivalence to manufacturer references

CHEVROLET : 39069630
CHEVROLET : 86319
