Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

Equivalence to manufacturer references

AUDI : 80A407271E
AUDI : 80A407271G

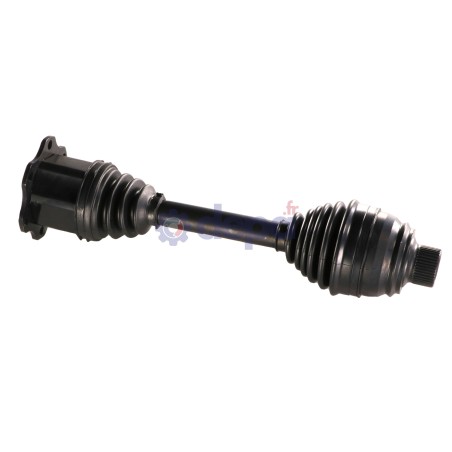

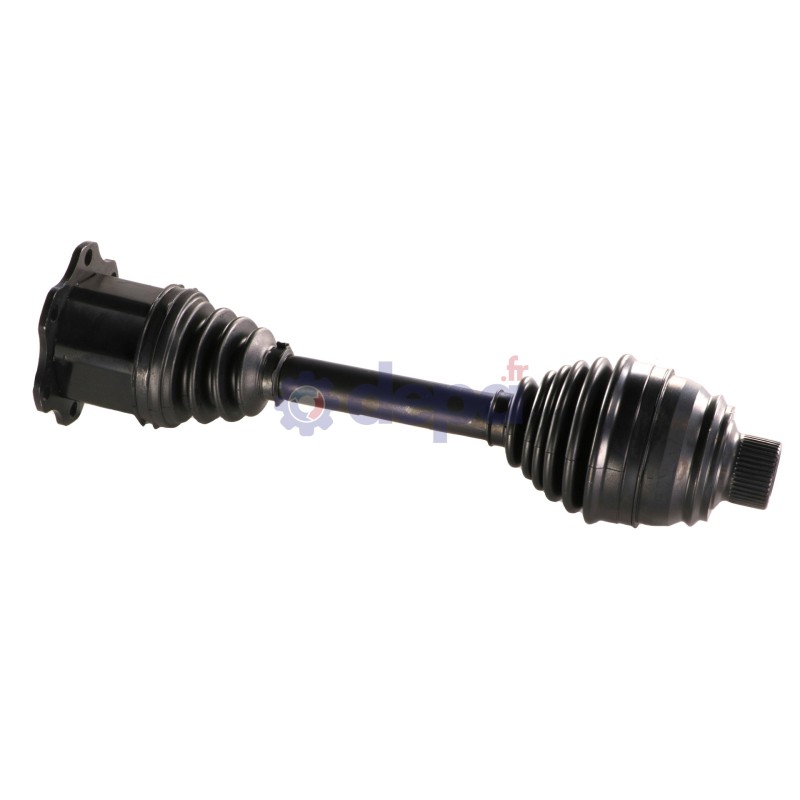

AUDI Q5 II AUTOMATIC TRANSMISSION

Name: AUDI Q5 II AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3722460
Price: 664.63 EUR
Availability: InStock

Ref : 3722460

Matching vehicles :

Q5 II

Family :TR

Collapsed length : 495 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 12 mm

Outer diameter (gearbox side) : 80 mm

Outer diameter (boot side) : 135 mm

Flange thickness : 80 mm

Number of splines on inner race : 27

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 45 mm

Housing diameter : 98 mm

Shoulder diameter : 76 mm

Number of external splines : 42

Nombre de cannelures sur la noix : 29

Observations : Spline length on shoulder 25mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 25.5 mm

Beads thickness : 15 mm

Length : 92 mm

Type of material : Nitrile

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

JOINT HOMO Echange	COTE ROUE	JA35
JOINT HOMO Echange	COTE BOITE	CBEA24
FIXATION	COTE ROUE	VI003
KITS ETANCHEITE TR neuf	COTE ROUE	5036
KITS ETANCHEITE TR neuf	COTE BOITE	6113
TRIAXE	COTE BOITE	TRIAL11
