Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

AUDI : 4K0407271F

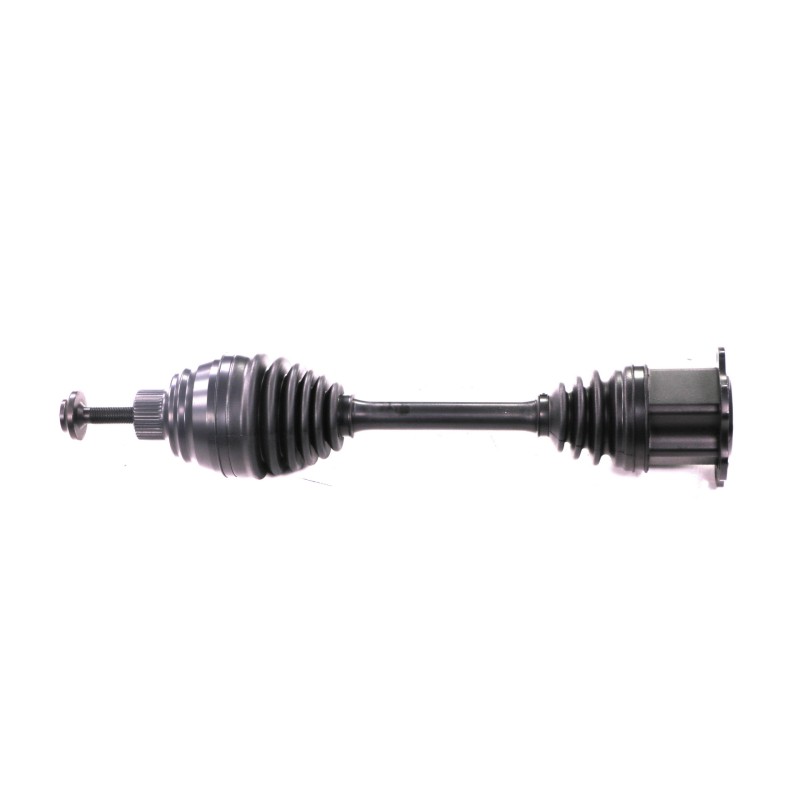

AUDI A6 V AUTOMATIC TRANSMISSION

Name: AUDI A6 V AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3722870
Price: 480.53 EUR
Availability: OutOfStock

Ref : 3722870

Matching vehicles :

A6 V - A7 SPORTBACK II - A6 C8 (4A2)

Family :TR

Collapsed length : 490 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 73 mm

Outer diameter (boot side) : 123 mm

Flange thickness : 6 mm

Number of splines on inner race : 27

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 45 mm

Housing diameter : 98 mm

Shoulder diameter : 76 mm

Number of external splines : 42

Nombre de cannelures sur la noix : 29

Observations : Spline length on shoulder 25mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Beads thickness : 14 mm

Length : 70 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 34

CV joint	COTE ROUE	JA35
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6085
Fixation	COTE ROUE	VI003
Tripod joint	COTE BOITE	TRIFO81
